| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_054T07_9000004878_34155cztM0_level2.evt | modeM0/AS1A11_054T07_9000004878_34155cztM0_level2_quad_clean.evt |
| Size (bytes) | 739,031,040 | 111,936,960 |
| Size | 704.8 MB | 106.8 MB |
| Events in quadrant A | 4,344,201 | 689,976 |
| Events in quadrant B | 5,630,881 | 699,746 |
| Events in quadrant C | 5,392,147 | 683,449 |
| Events in quadrant D | 6,364,574 | 650,890 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 192 | 0 |
| B | 0 | 192 | 0 |
| C | 0 | 192 | 0 |
| D | 0 | 192 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19314 | 3 |
| B | 0 | 22933 | 2 |
| C | 0 | 21517 | 2 |
| D | 0 | 25552 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 9611 | 6 | 0.062428% |
| B | 9611 | 167 | 1.737592% |
| C | 9611 | 138 | 1.435855% |
| D | 9611 | 85 | 0.884403% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 10954 | 9612 | 0 | 0 | 0.00% | 0.00% |  |
| B | 10954 | 9612 | 116 | 116 | 1.06% | 1.21% |  |
| C | 10954 | 9612 | 109 | 109 | 1.00% | 1.13% |  |
| D | 10954 | 9612 | 70 | 70 | 0.64% | 0.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 23275 | 99.02 | 1115 | 1089 | 224.1 |
| A | 13 | 254 | 16134 | 67.15 | 1115 | 1089 | 224.1 |
| A | 13 | 6 | 12007 | 48.73 | 1115 | 1089 | 224.1 |
| B | 5 | 31 | 340582 | 1582.39 | 1109 | 1078 | 214.6 |
| B | 5 | 172 | 337762 | 1569.24 | 1109 | 1078 | 214.6 |
| B | 5 | 255 | 304336 | 1413.45 | 1109 | 1078 | 214.6 |
| C | 0 | 10 | 707812 | 2785.04 | 1081 | 1088 | 253.8 |
| C | 15 | 214 | 404797 | 1590.93 | 1081 | 1088 | 253.8 |
| C | 6 | 96 | 44170 | 169.78 | 1081 | 1088 | 253.8 |
| D | 8 | 195 | 1435414 | 5346.71 | 1082 | 1050 | 268.3 |
| D | 10 | 118 | 169711 | 628.7 | 1082 | 1050 | 268.3 |
| D | 5 | 223 | 159653 | 591.2 | 1082 | 1050 | 268.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

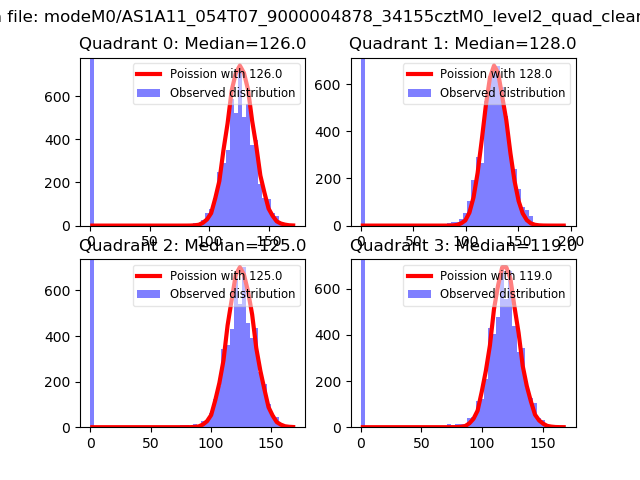

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

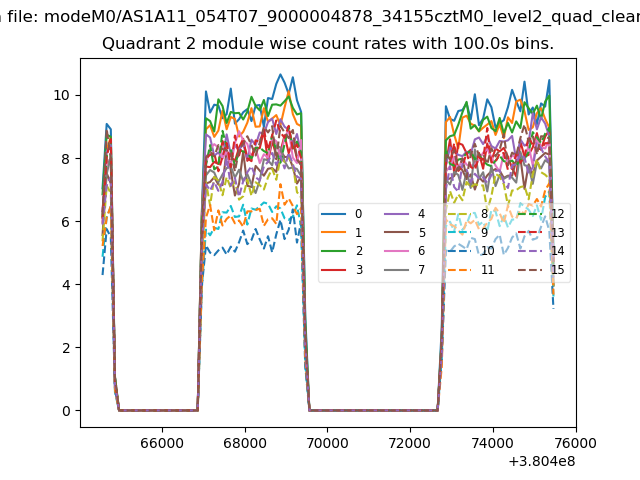

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
