| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_047T03_9000004880_34167cztM0_level2.evt | modeM0/AS1A11_047T03_9000004880_34167cztM0_level2_quad_clean.evt |
| Size (bytes) | 771,448,320 | 62,769,600 |
| Size | 735.7 MB | 59.9 MB |
| Events in quadrant A | 2,705,148 | 408,324 |
| Events in quadrant B | 11,109,342 | 303,084 |
| Events in quadrant C | 4,213,680 | 395,769 |
| Events in quadrant D | 4,939,465 | 382,829 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11766 | 3 |
| B | 0 | 37036 | 2 |
| C | 0 | 16166 | 2 |
| D | 0 | 18461 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5854 | 6 | 0.102494% |
| B | 5854 | 3726 | 63.648787% |
| C | 5854 | 252 | 4.304749% |
| D | 5854 | 393 | 6.713358% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7166 | 5855 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7166 | 5855 | 3341 | 3341 | 46.62% | 57.06% |  |
| C | 7166 | 5855 | 234 | 234 | 3.27% | 4.00% |  |
| D | 7166 | 5855 | 335 | 335 | 4.67% | 5.72% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 21228 | 146.68 | 693 | 679 | 140.1 |
| A | 13 | 254 | 10055 | 66.93 | 693 | 679 | 140.1 |
| A | 13 | 6 | 9018 | 59.52 | 693 | 679 | 140.1 |
| B | 5 | 31 | 5222038 | 49735.69 | 543 | 528 | 105.0 |
| B | 5 | 15 | 2773404 | 26412.08 | 543 | 528 | 105.0 |
| B | 5 | 14 | 444155 | 4225.62 | 543 | 528 | 105.0 |
| C | 0 | 10 | 921058 | 5948.1 | 661 | 665 | 154.7 |
| C | 0 | 239 | 447816 | 2889.74 | 661 | 665 | 154.7 |
| C | 15 | 214 | 248709 | 1603.0 | 661 | 665 | 154.7 |
| D | 8 | 195 | 1086150 | 6704.88 | 650 | 631 | 161.9 |
| D | 10 | 118 | 896191 | 5531.57 | 650 | 631 | 161.9 |
| D | 13 | 249 | 131245 | 806.76 | 650 | 631 | 161.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

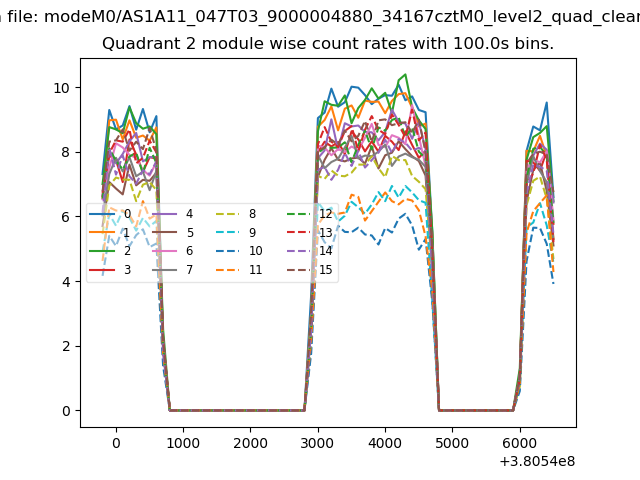

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

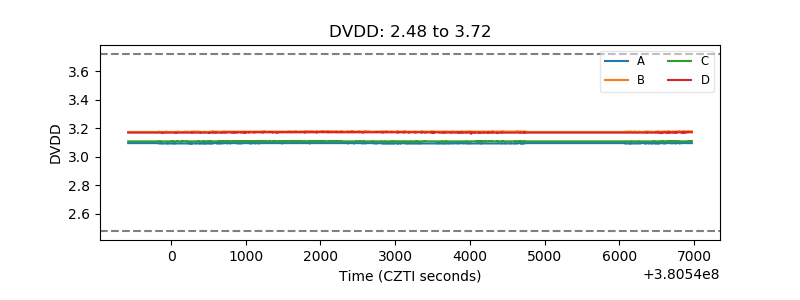

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

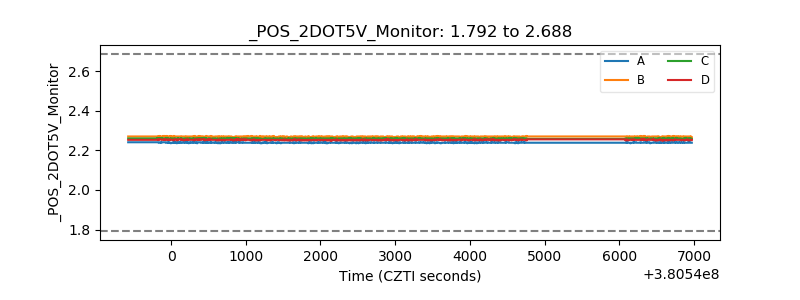

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

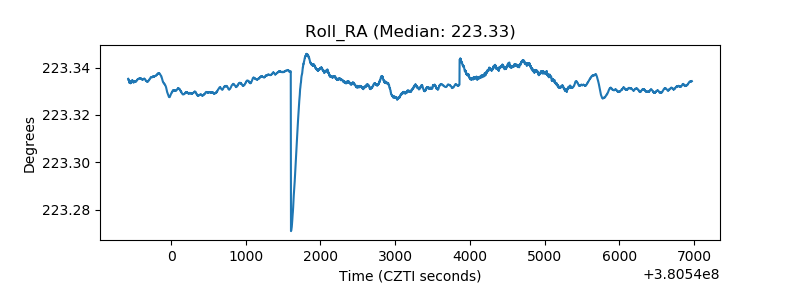

| _Roll_RA |  |

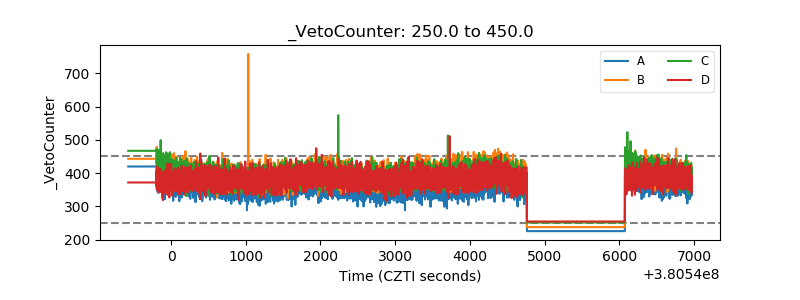

| Veto Counter |  |
