| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_047T15_9000004882_34170cztM0_level2.evt | modeM0/AS1A11_047T15_9000004882_34170cztM0_level2_quad_clean.evt |
| Size (bytes) | 284,031,360 | 26,294,400 |
| Size | 270.9 MB | 25.1 MB |
| Events in quadrant A | 1,102,063 | 169,244 |
| Events in quadrant B | 2,129,125 | 160,412 |
| Events in quadrant C | 3,320,163 | 142,959 |
| Events in quadrant D | 1,895,367 | 158,950 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 48 | 0 |
| B | 0 | 48 | 0 |
| C | 0 | 48 | 0 |
| D | 0 | 48 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4635 | 2 |
| B | 0 | 7776 | 1 |
| C | 0 | 11463 | 1 |
| D | 0 | 7227 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2266 | 10 | 0.441306% |
| B | 2266 | 264 | 11.650485% |
| C | 2266 | 757 | 33.406884% |
| D | 2266 | 38 | 1.676964% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3788 | 2267 | 3 | 3 | 0.08% | 0.13% |  |
| B | 3788 | 2267 | 193 | 193 | 5.10% | 8.51% |  |
| C | 3788 | 2267 | 700 | 700 | 18.48% | 30.88% |  |
| D | 3788 | 2267 | 25 | 25 | 0.66% | 1.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 10484 | 177.44 | 279 | 274 | 57.5 |
| A | 15 | 17 | 8679 | 146.07 | 279 | 274 | 57.5 |
| A | 13 | 254 | 4109 | 66.65 | 279 | 274 | 57.5 |
| B | 5 | 31 | 504770 | 9424.29 | 271 | 264 | 53.5 |
| B | 5 | 15 | 366776 | 6846.53 | 271 | 264 | 53.5 |
| B | 0 | 197 | 83059 | 1546.63 | 271 | 264 | 53.5 |
| C | 0 | 239 | 2173613 | 38938.83 | 234 | 235 | 55.8 |
| C | 0 | 10 | 134705 | 2409.2 | 234 | 235 | 55.8 |
| C | 15 | 214 | 86579 | 1546.96 | 234 | 235 | 55.8 |
| D | 8 | 195 | 635521 | 9402.06 | 267 | 260 | 67.6 |
| D | 1 | 52 | 98776 | 1458.07 | 267 | 260 | 67.6 |
| D | 13 | 249 | 57007 | 839.87 | 267 | 260 | 67.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

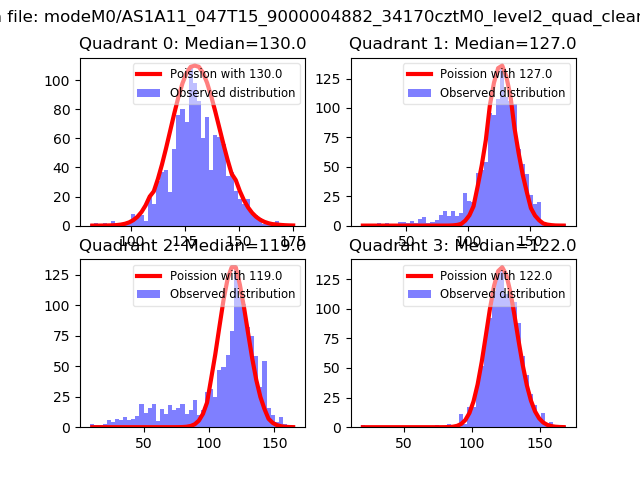

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

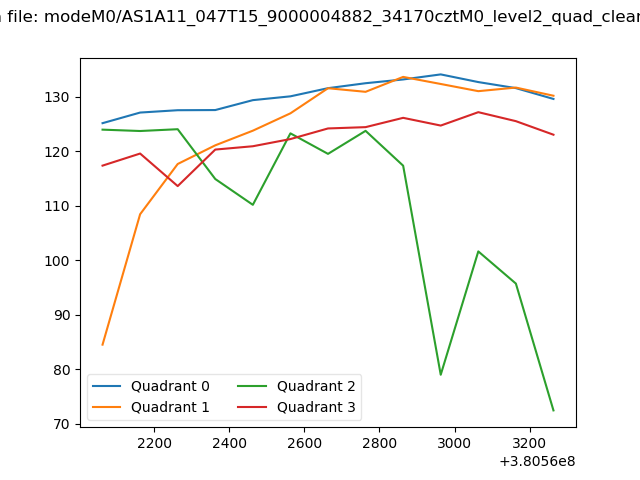

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

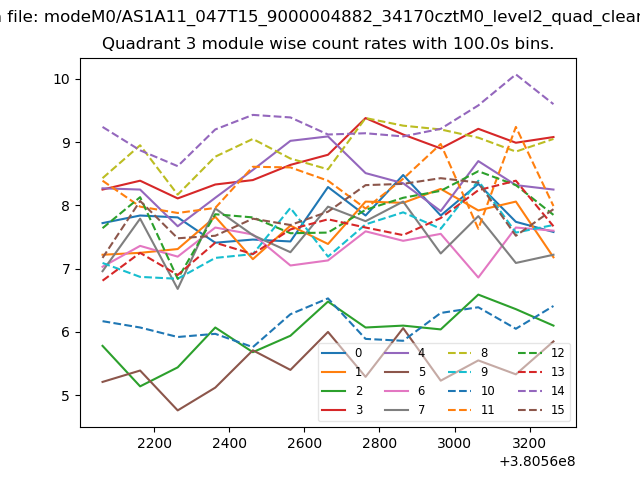

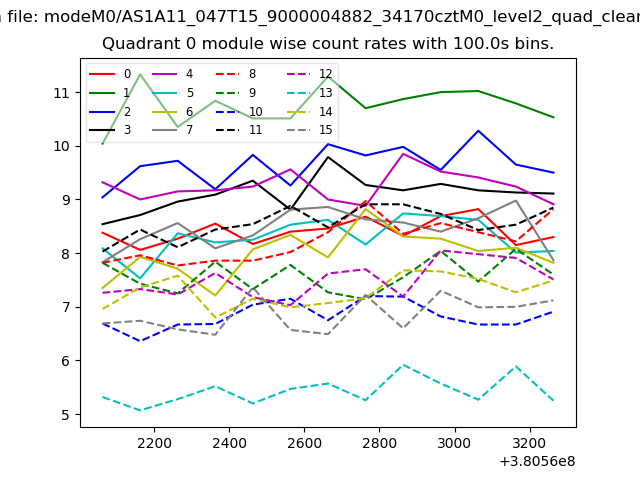

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
