| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_047T15_9000004882_34178cztM0_level2.evt | modeM0/AS1A11_047T15_9000004882_34178cztM0_level2_quad_clean.evt |
| Size (bytes) | 555,505,920 | 73,195,200 |
| Size | 529.8 MB | 69.8 MB |
| Events in quadrant A | 2,299,279 | 495,077 |
| Events in quadrant B | 6,135,249 | 485,412 |
| Events in quadrant C | 3,864,289 | 454,488 |
| Events in quadrant D | 4,187,810 | 432,228 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 0 |
| B | 0 | 100 | 0 |
| C | 0 | 100 | 0 |
| D | 0 | 100 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10044 | 2 |
| B | 0 | 21566 | 1 |
| C | 0 | 14608 | 1 |
| D | 0 | 15818 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4978 | 3 | 0.060265% |
| B | 4978 | 1277 | 25.652873% |
| C | 4978 | 387 | 7.774207% |
| D | 4978 | 496 | 9.963841% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

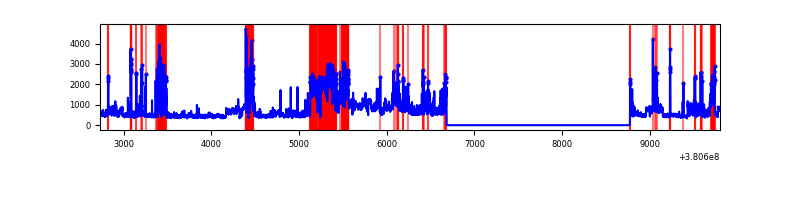

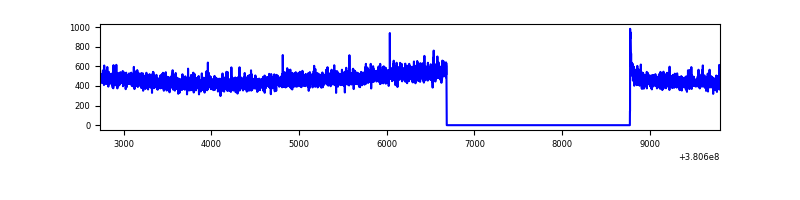

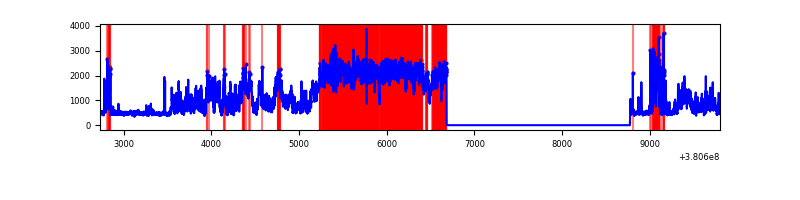

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7070 | 4979 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7070 | 4979 | 1030 | 1030 | 14.57% | 20.69% |  |
| C | 7070 | 4979 | 315 | 315 | 4.46% | 6.33% |  |
| D | 7070 | 4979 | 374 | 374 | 5.29% | 7.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 13142 | 105.52 | 590 | 580 | 119.0 |
| A | 13 | 6 | 9222 | 72.59 | 590 | 580 | 119.0 |
| A | 13 | 254 | 9205 | 72.45 | 590 | 580 | 119.0 |
| B | 5 | 31 | 1891209 | 18210.17 | 543 | 529 | 103.8 |
| B | 5 | 15 | 1251183 | 12045.73 | 543 | 529 | 103.8 |
| B | 5 | 172 | 387355 | 3725.73 | 543 | 529 | 103.8 |
| C | 0 | 239 | 875450 | 7021.22 | 543 | 548 | 124.6 |
| C | 14 | 254 | 456435 | 3658.56 | 543 | 548 | 124.6 |
| C | 15 | 214 | 213920 | 1712.34 | 543 | 548 | 124.6 |
| D | 10 | 118 | 1099113 | 8307.66 | 538 | 524 | 132.2 |
| D | 8 | 195 | 613474 | 4635.2 | 538 | 524 | 132.2 |
| D | 13 | 249 | 135437 | 1020.23 | 538 | 524 | 132.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

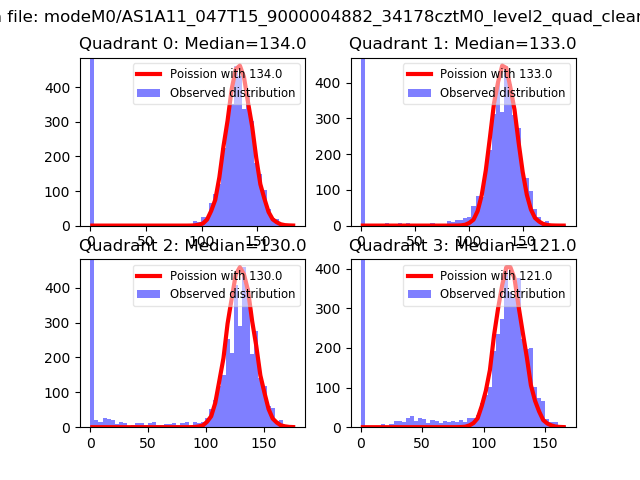

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

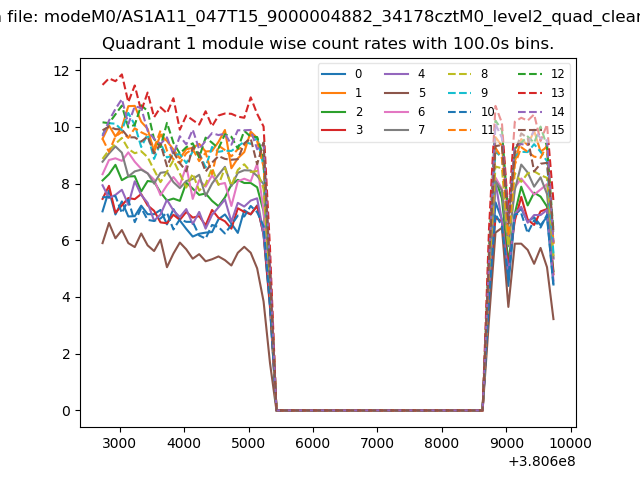

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

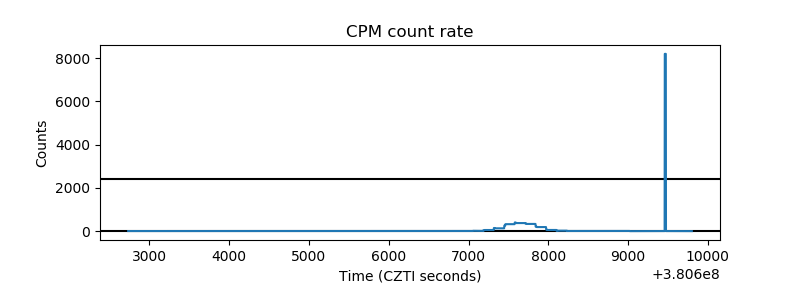

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

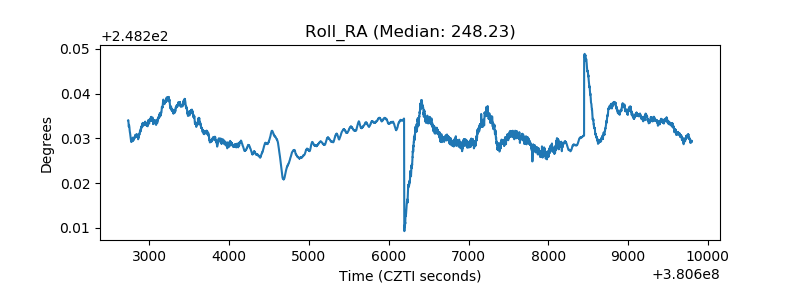

| _Roll_RA |  |

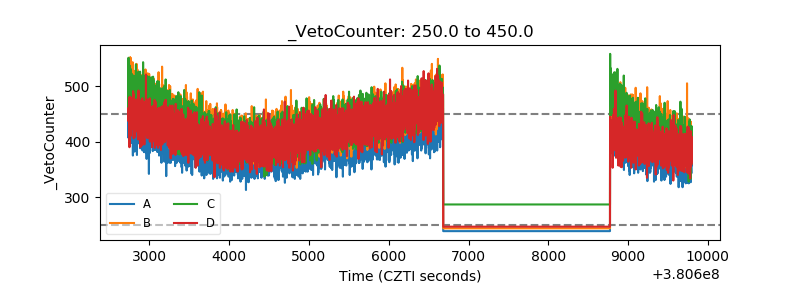

| Veto Counter |  |
