| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_047T15_9000004882_34179cztM0_level2.evt | modeM0/AS1A11_047T15_9000004882_34179cztM0_level2_quad_clean.evt |
| Size (bytes) | 533,600,640 | 68,947,200 |
| Size | 508.9 MB | 65.8 MB |
| Events in quadrant A | 2,502,801 | 449,295 |
| Events in quadrant B | 4,545,588 | 445,846 |
| Events in quadrant C | 3,984,121 | 411,530 |
| Events in quadrant D | 4,758,418 | 399,246 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 0 |
| B | 0 | 112 | 0 |
| C | 0 | 112 | 0 |
| D | 0 | 112 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 19 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10988 | 3 |
| B | 0 | 17204 | 2 |
| C | 0 | 15488 | 2 |
| D | 0 | 18011 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5446 | 7 | 0.128535% |
| B | 5446 | 569 | 10.448035% |
| C | 5446 | 339 | 6.224752% |
| D | 5446 | 317 | 5.820786% |

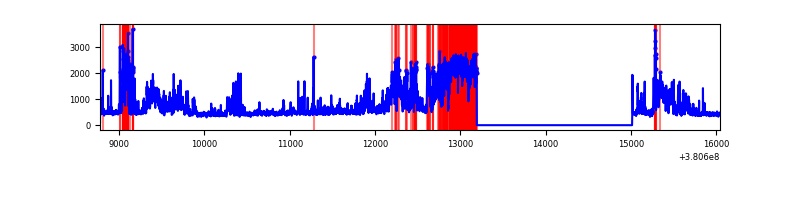

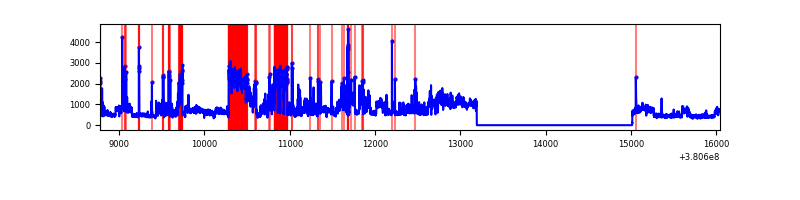

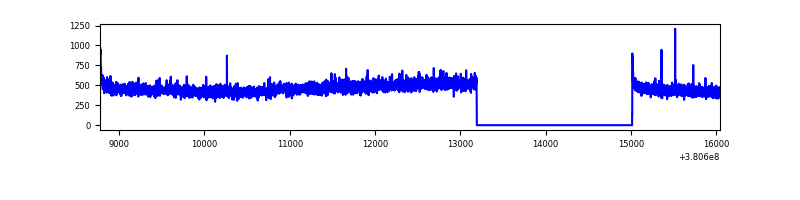

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7269 | 5447 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7269 | 5447 | 386 | 386 | 5.31% | 7.09% |  |
| C | 7269 | 5447 | 268 | 268 | 3.69% | 4.92% |  |
| D | 7269 | 5447 | 355 | 355 | 4.88% | 6.52% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 21938 | 166.22 | 637 | 625 | 128.2 |
| A | 13 | 6 | 16557 | 124.25 | 637 | 625 | 128.2 |
| A | 13 | 254 | 10216 | 74.8 | 637 | 625 | 128.2 |
| B | 5 | 31 | 999934 | 8525.89 | 609 | 594 | 117.2 |
| B | 5 | 15 | 575886 | 4908.11 | 609 | 594 | 117.2 |
| B | 5 | 172 | 296075 | 2520.9 | 609 | 594 | 117.2 |
| C | 0 | 239 | 793938 | 5777.14 | 594 | 600 | 137.3 |
| C | 0 | 10 | 474439 | 3450.53 | 594 | 600 | 137.3 |
| C | 15 | 214 | 240990 | 1750.54 | 594 | 600 | 137.3 |
| D | 10 | 118 | 1090258 | 7326.74 | 598 | 582 | 148.7 |
| D | 8 | 195 | 1076773 | 7236.07 | 598 | 582 | 148.7 |
| D | 10 | 204 | 40656 | 269.45 | 598 | 582 | 148.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

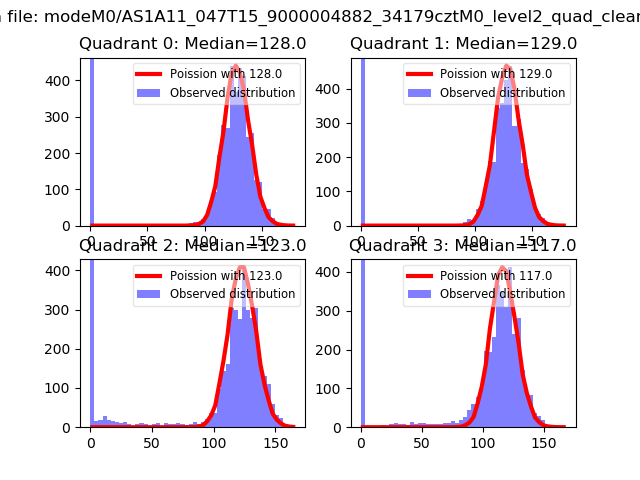

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

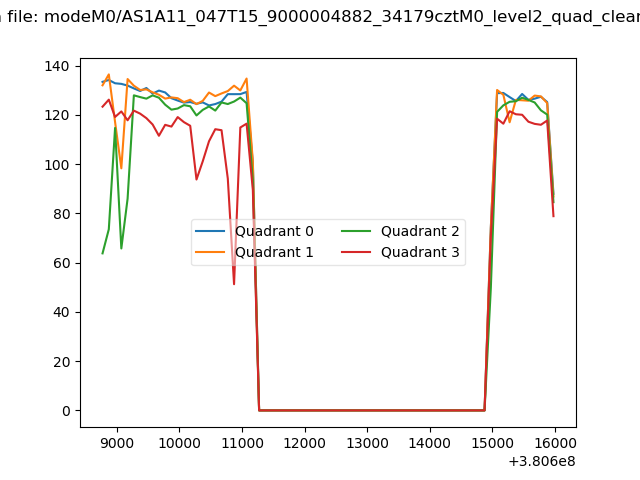

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

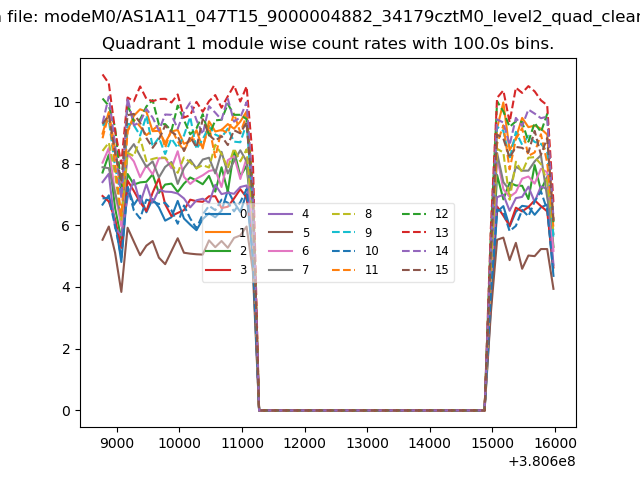

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

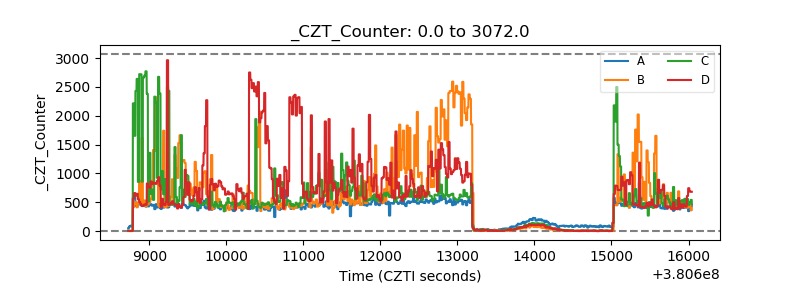

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

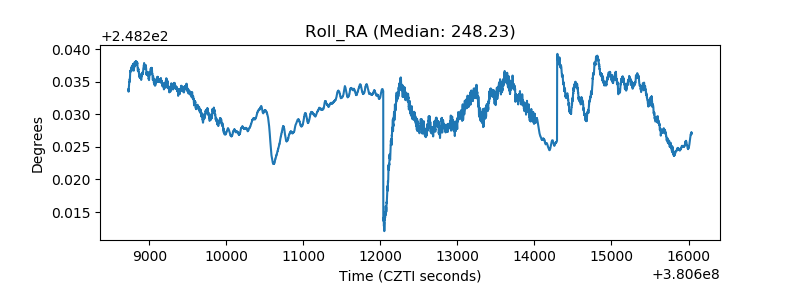

| _Roll_RA |  |
| Veto Counter |  |
