| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_047T15_9000004882_34184cztM0_level2.evt | modeM0/AS1A11_047T15_9000004882_34184cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,423,301,760 | 167,803,200 |
| Size | 1.3 GB | 160.0 MB |
| Events in quadrant A | 7,305,437 | 1,030,402 |
| Events in quadrant B | 12,322,165 | 1,016,572 |
| Events in quadrant C | 9,049,908 | 1,010,047 |
| Events in quadrant D | 13,366,971 | 938,265 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 322 | 0 |
| B | 0 | 322 | 0 |
| C | 0 | 322 | 0 |
| D | 0 | 322 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 40 | 0 |
| B | 0 | 40 | 0 |
| C | 0 | 40 | 0 |
| D | 0 | 40 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31752 | 3 |
| B | 0 | 46780 | 2 |
| C | 0 | 35850 | 2 |
| D | 0 | 50226 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 15743 | 17 | 0.107985% |
| B | 15743 | 1156 | 7.342946% |
| C | 15743 | 174 | 1.105253% |
| D | 15743 | 690 | 4.382900% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19801 | 15746 | 1 | 1 | 0.01% | 0.01% |  |
| B | 19801 | 15746 | 764 | 764 | 3.86% | 4.85% |  |
| C | 19801 | 15746 | 125 | 125 | 0.63% | 0.79% |  |
| D | 19801 | 15746 | 579 | 579 | 2.92% | 3.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 40390 | 103.26 | 1864 | 1823 | 373.5 |
| A | 13 | 6 | 32401 | 81.87 | 1864 | 1823 | 373.5 |
| A | 13 | 254 | 28918 | 72.55 | 1864 | 1823 | 373.5 |
| B | 5 | 31 | 2504173 | 7223.64 | 1814 | 1765 | 346.4 |
| B | 5 | 172 | 1326562 | 3824.26 | 1814 | 1765 | 346.4 |
| B | 5 | 15 | 738561 | 2126.89 | 1814 | 1765 | 346.4 |
| C | 0 | 10 | 744408 | 1796.62 | 1803 | 1818 | 413.3 |
| C | 15 | 214 | 716799 | 1729.82 | 1803 | 1818 | 413.3 |
| C | 14 | 254 | 270063 | 648.99 | 1803 | 1818 | 413.3 |
| D | 8 | 195 | 3378248 | 7643.58 | 1776 | 1719 | 441.7 |
| D | 7 | 80 | 1194023 | 2699.06 | 1776 | 1719 | 441.7 |
| D | 10 | 118 | 702585 | 1586.58 | 1776 | 1719 | 441.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

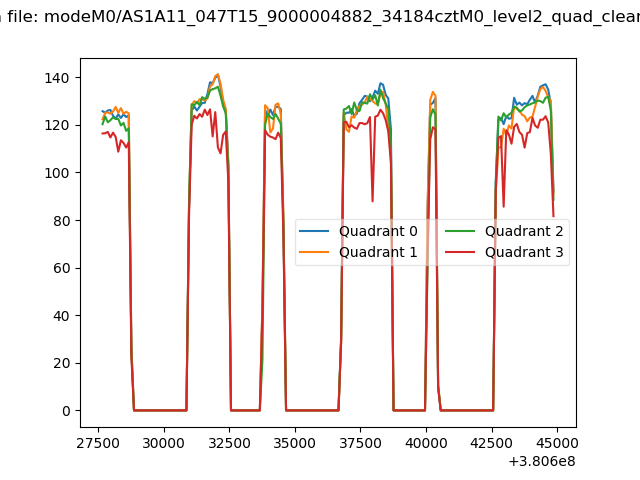

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

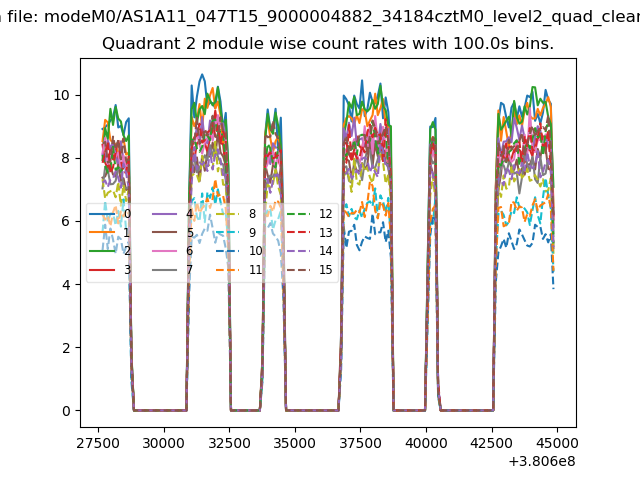

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

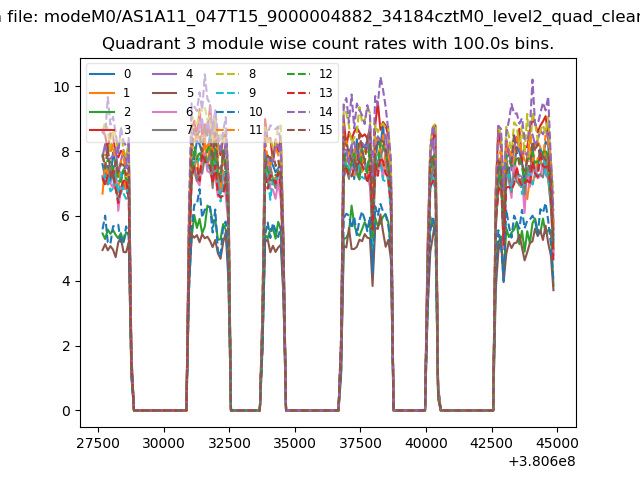

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
