| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_086T01_9000004884_34218cztM0_level2.evt | modeM0/AS1T04_086T01_9000004884_34218cztM0_level2_quad_clean.evt |
| Size (bytes) | 588,841,920 | 61,364,160 |
| Size | 561.6 MB | 58.5 MB |
| Events in quadrant A | 2,443,035 | 398,346 |
| Events in quadrant B | 4,726,404 | 393,198 |
| Events in quadrant C | 3,861,842 | 383,153 |
| Events in quadrant D | 6,459,382 | 327,478 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29 | 0 |
| B | 0 | 29 | 0 |
| C | 0 | 29 | 0 |
| D | 0 | 30 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10395 | 3 |
| B | 0 | 17476 | 2 |
| C | 0 | 14591 | 2 |
| D | 0 | 22727 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5070 | 5 | 0.098619% |
| B | 5070 | 518 | 10.216963% |
| C | 5070 | 367 | 7.238659% |
| D | 5070 | 970 | 19.132150% |

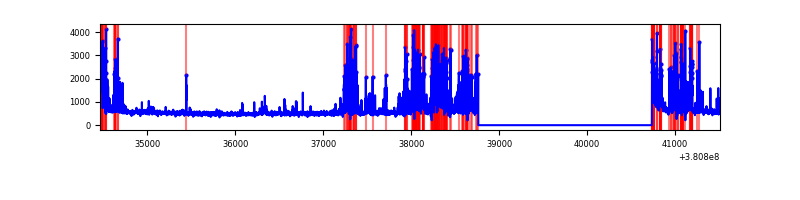

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7044 | 5071 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7044 | 5071 | 415 | 415 | 5.89% | 8.18% |  |
| C | 7044 | 5071 | 234 | 234 | 3.32% | 4.61% |  |
| D | 7044 | 5070 | 807 | 807 | 11.46% | 15.92% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 23345 | 182.5 | 617 | 604 | 124.6 |
| A | 13 | 6 | 18175 | 141.01 | 617 | 604 | 124.6 |
| A | 9 | 143 | 15148 | 116.72 | 617 | 604 | 124.6 |
| B | 5 | 31 | 965510 | 8517.63 | 604 | 590 | 113.3 |
| B | 5 | 172 | 690756 | 6092.3 | 604 | 590 | 113.3 |
| B | 5 | 15 | 291696 | 2569.68 | 604 | 590 | 113.3 |
| C | 14 | 254 | 884948 | 6495.25 | 598 | 606 | 136.2 |
| C | 15 | 214 | 216298 | 1584.2 | 598 | 606 | 136.2 |
| C | 0 | 10 | 177867 | 1301.93 | 598 | 606 | 136.2 |
| D | 2 | 250 | 1828660 | 13442.27 | 555 | 540 | 136.0 |
| D | 10 | 118 | 961387 | 7065.16 | 555 | 540 | 136.0 |
| D | 8 | 195 | 656211 | 4821.18 | 555 | 540 | 136.0 |

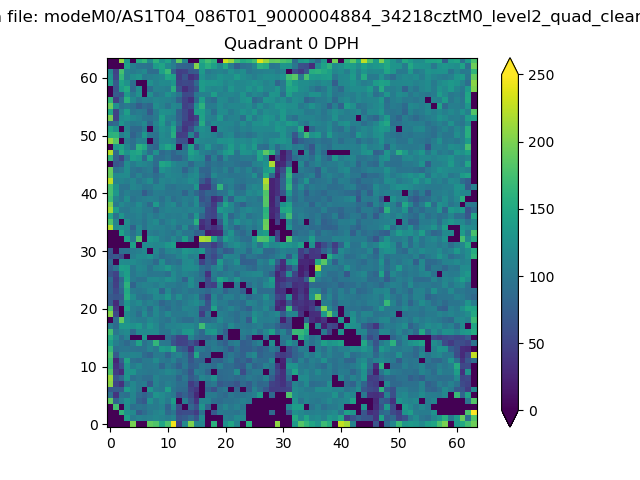

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

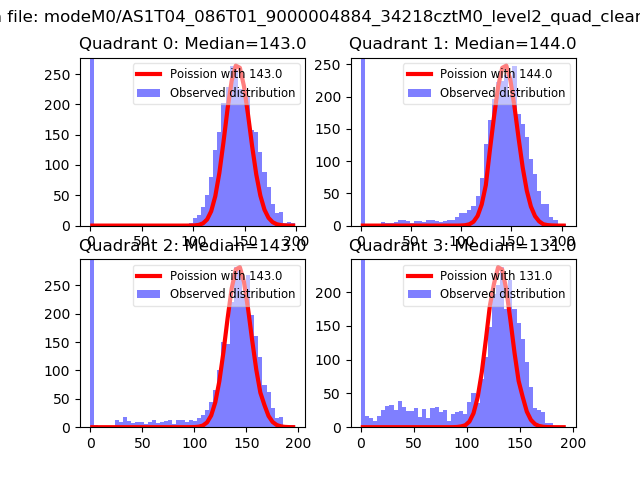

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

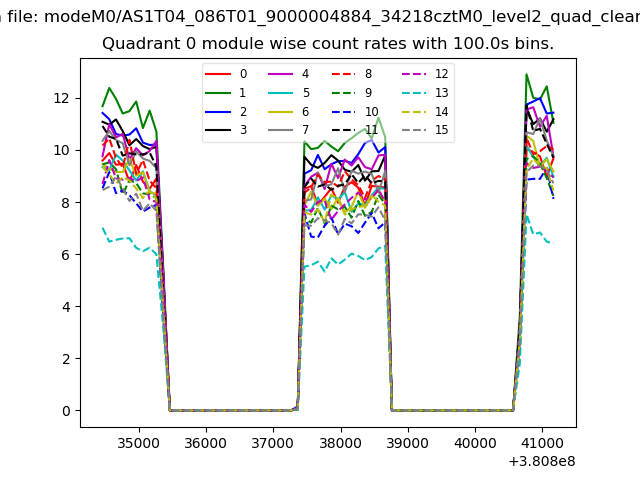

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

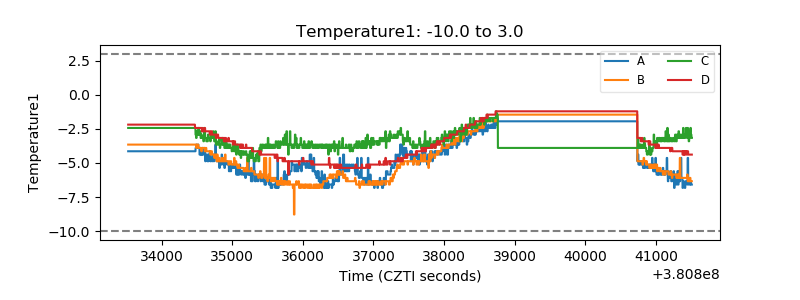

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

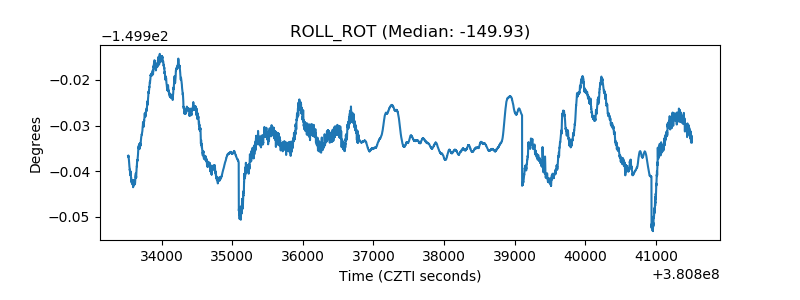

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

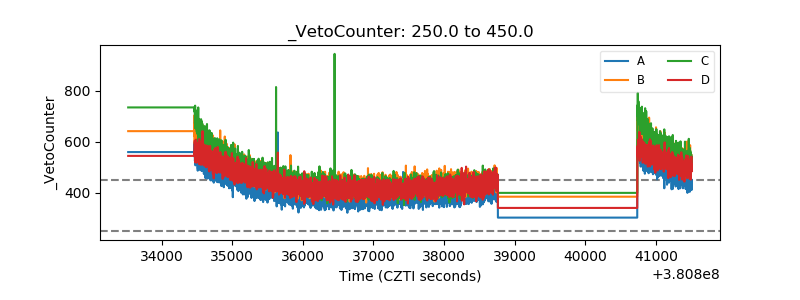

| Veto Counter |  |
