| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_086T01_9000004884_34221cztM0_level2.evt | modeM0/AS1T04_086T01_9000004884_34221cztM0_level2_quad_clean.evt |
| Size (bytes) | 987,425,280 | 94,366,080 |
| Size | 941.7 MB | 90.0 MB |
| Events in quadrant A | 4,522,490 | 558,147 |
| Events in quadrant B | 9,522,397 | 551,607 |
| Events in quadrant C | 6,396,151 | 563,083 |
| Events in quadrant D | 8,834,807 | 536,738 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 190 | 0 |
| B | 0 | 190 | 0 |
| C | 0 | 190 | 0 |
| D | 0 | 190 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 43 | 0 |
| B | 0 | 43 | 0 |
| C | 0 | 43 | 0 |
| D | 0 | 43 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19041 | 2 |
| B | 0 | 34618 | 2 |
| C | 0 | 24666 | 2 |
| D | 0 | 32904 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 9339 | 17 | 0.182032% |
| B | 9339 | 1022 | 10.943356% |
| C | 9339 | 323 | 3.458614% |
| D | 9339 | 507 | 5.428847% |

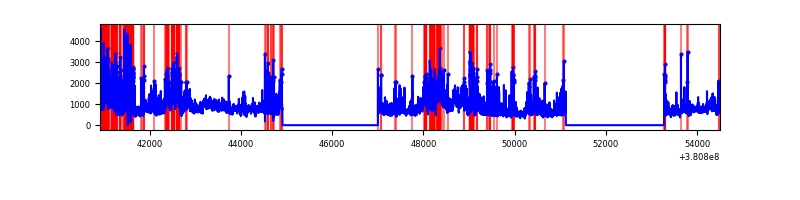

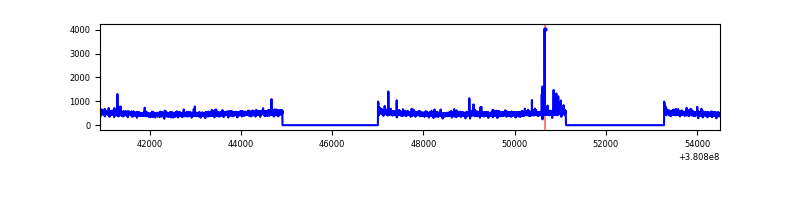

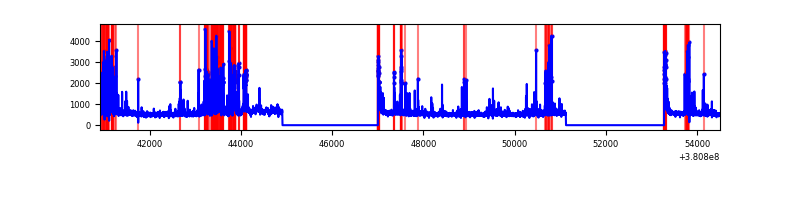

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13585 | 9341 | 1 | 1 | 0.01% | 0.01% |  |
| B | 13585 | 9341 | 692 | 692 | 5.09% | 7.41% |  |
| C | 13585 | 9341 | 286 | 286 | 2.11% | 3.06% |  |
| D | 13585 | 9341 | 506 | 506 | 3.72% | 5.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 34882 | 148.52 | 1147 | 1128 | 227.3 |
| A | 13 | 6 | 27612 | 116.53 | 1147 | 1128 | 227.3 |
| A | 10 | 83 | 25947 | 109.21 | 1147 | 1128 | 227.3 |
| B | 5 | 31 | 2254407 | 10705.75 | 1126 | 1099 | 210.5 |
| B | 5 | 172 | 1120974 | 5320.67 | 1126 | 1099 | 210.5 |
| B | 5 | 15 | 1006474 | 4776.66 | 1126 | 1099 | 210.5 |
| C | 14 | 254 | 467645 | 1814.67 | 1126 | 1139 | 257.1 |
| C | 15 | 214 | 399668 | 1550.25 | 1126 | 1139 | 257.1 |
| C | 9 | 187 | 396009 | 1536.02 | 1126 | 1139 | 257.1 |
| D | 10 | 118 | 1685404 | 6306.74 | 1105 | 1077 | 267.1 |
| D | 8 | 195 | 1111113 | 4156.38 | 1105 | 1077 | 267.1 |
| D | 2 | 250 | 667030 | 2493.57 | 1105 | 1077 | 267.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

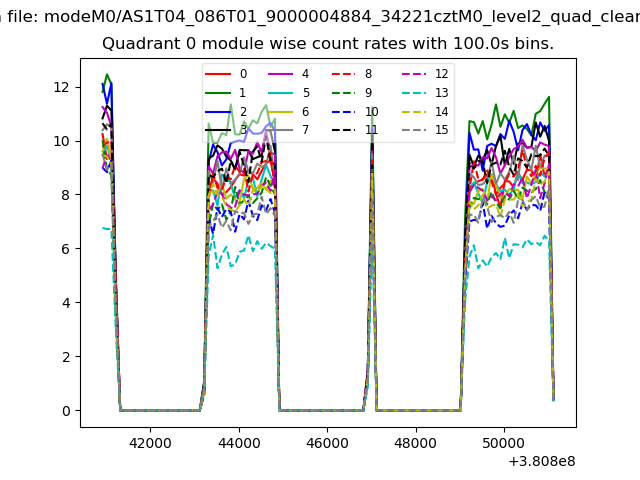

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

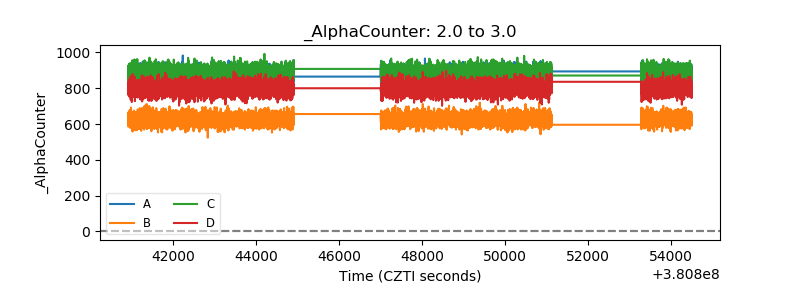

| Alpha Counter |  |

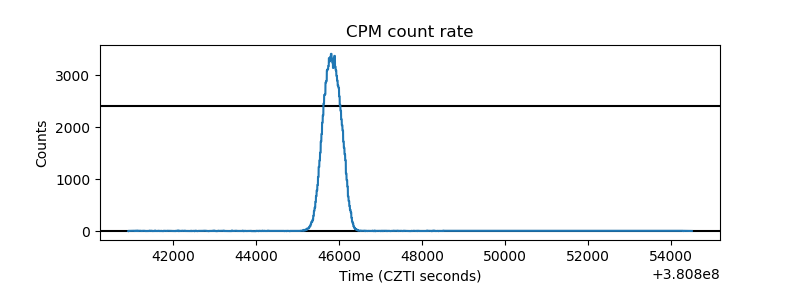

| _CPM_Rate |  |
| CZT Counter |  |

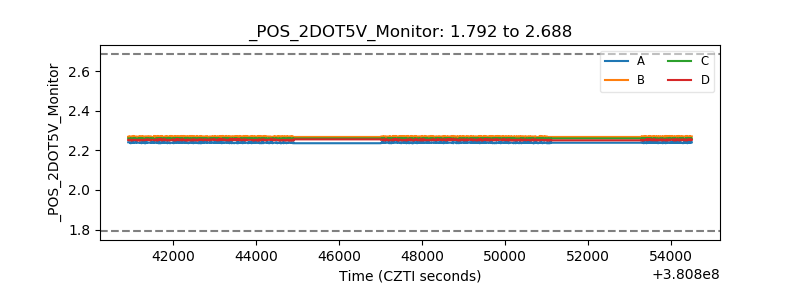

| +2.5 Volts monitor |  |

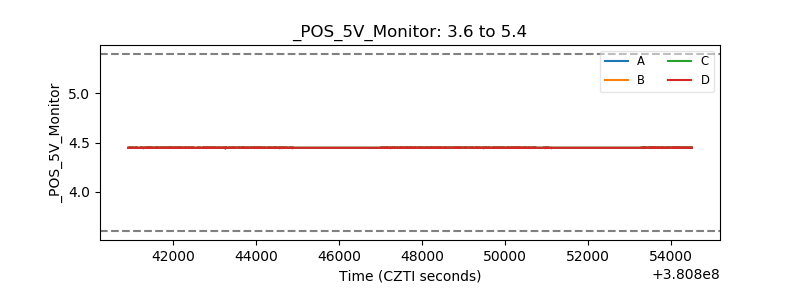

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
