| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_059T09_9000004888_34242cztM0_level2.evt | modeM0/AS1A11_059T09_9000004888_34242cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,310,178,240 | 183,044,160 |
| Size | 1.2 GB | 174.6 MB |
| Events in quadrant A | 7,534,436 | 1,143,446 |
| Events in quadrant B | 9,906,611 | 1,141,006 |
| Events in quadrant C | 9,595,724 | 1,103,894 |
| Events in quadrant D | 11,581,650 | 1,070,613 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32635 | 0 |
| B | 0 | 39229 | 0 |
| C | 0 | 37738 | 0 |
| D | 0 | 44869 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 322 | 0 |
| B | 0 | 322 | 0 |
| C | 0 | 322 | 0 |
| D | 0 | 322 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 44 | 0 |
| B | 0 | 44 | 0 |
| C | 0 | 44 | 0 |
| D | 0 | 45 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 15716 | 32 | 0.203614% |
| B | 15716 | 690 | 4.390430% |
| C | 15716 | 421 | 2.678799% |
| D | 15716 | 468 | 2.977857% |

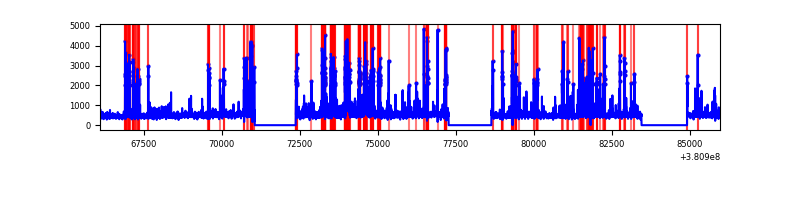

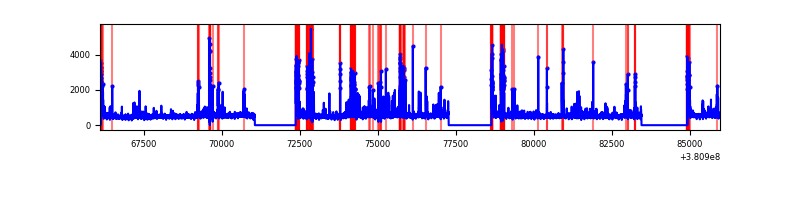

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19865 | 15719 | 15 | 15 | 0.08% | 0.10% |  |
| B | 19865 | 15719 | 452 | 452 | 2.28% | 2.88% |  |
| C | 19865 | 15719 | 282 | 282 | 1.42% | 1.79% |  |
| D | 19865 | 15719 | 385 | 385 | 1.94% | 2.45% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 267510 | 728.71 | 1825 | 1788 | 364.6 |
| A | 9 | 143 | 129497 | 350.22 | 1825 | 1788 | 364.6 |
| A | 10 | 83 | 51677 | 136.81 | 1825 | 1788 | 364.6 |
| B | 5 | 172 | 2170396 | 6332.05 | 1793 | 1750 | 342.5 |
| B | 4 | 251 | 207120 | 599.64 | 1793 | 1750 | 342.5 |
| B | 4 | 171 | 156451 | 451.7 | 1793 | 1750 | 342.5 |
| C | 14 | 254 | 823640 | 2038.94 | 1747 | 1758 | 403.1 |
| C | 15 | 214 | 669562 | 1656.7 | 1747 | 1758 | 403.1 |
| C | 0 | 10 | 578200 | 1430.05 | 1747 | 1758 | 403.1 |
| D | 8 | 195 | 2568288 | 5981.52 | 1756 | 1706 | 429.1 |
| D | 12 | 218 | 1056628 | 2458.54 | 1756 | 1706 | 429.1 |
| D | 2 | 250 | 261359 | 605.13 | 1756 | 1706 | 429.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

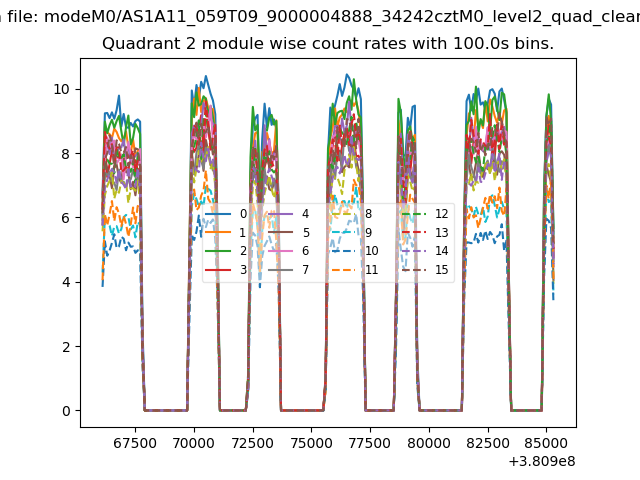

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

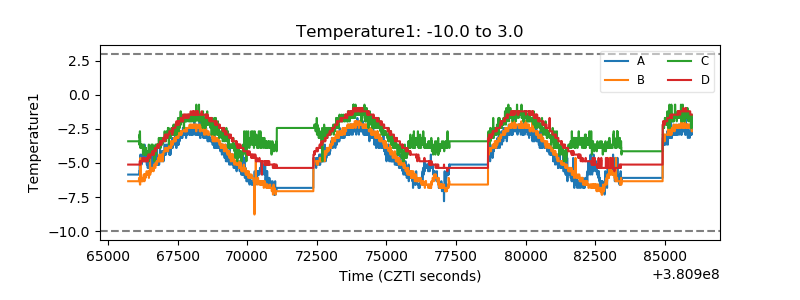

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

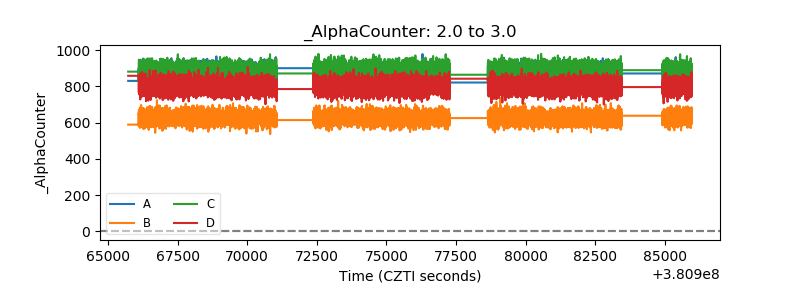

| Alpha Counter |  |

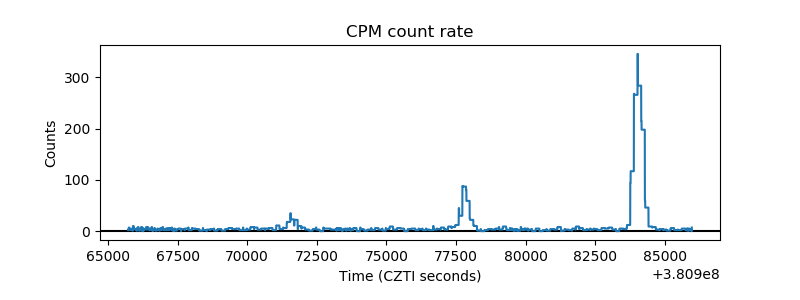

| _CPM_Rate |  |

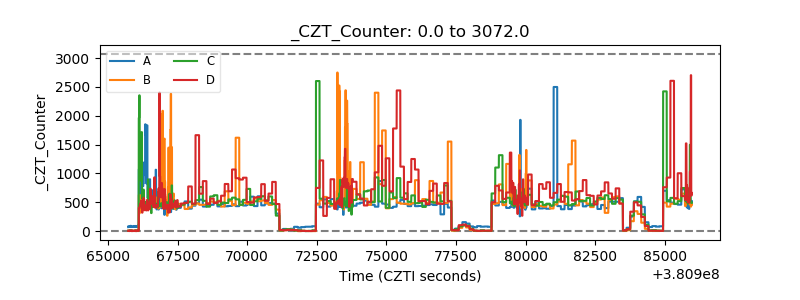

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

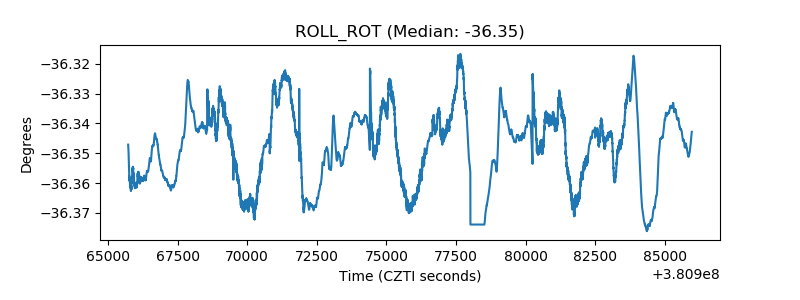

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
