| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_059T09_9000004888_34246cztM0_level2.evt | modeM0/AS1A11_059T09_9000004888_34246cztM0_level2_quad_clean.evt |
| Size (bytes) | 467,513,280 | 60,670,080 |
| Size | 445.9 MB | 57.9 MB |
| Events in quadrant A | 2,596,471 | 373,569 |
| Events in quadrant B | 3,768,130 | 366,753 |
| Events in quadrant C | 3,299,851 | 371,276 |
| Events in quadrant D | 4,136,770 | 356,069 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11101 | 0 |
| B | 0 | 14671 | 0 |
| C | 0 | 13085 | 0 |
| D | 0 | 15886 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5274 | 10 | 0.189609% |
| B | 5274 | 261 | 4.948805% |
| C | 5274 | 144 | 2.730375% |
| D | 5275 | 136 | 2.578199% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7127 | 5275 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7127 | 5275 | 175 | 175 | 2.46% | 3.32% |  |
| C | 7127 | 5275 | 99 | 99 | 1.39% | 1.88% |  |
| D | 7128 | 5276 | 98 | 98 | 1.37% | 1.86% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 25531 | 189.81 | 655 | 644 | 131.1 |
| A | 13 | 6 | 17580 | 129.17 | 655 | 644 | 131.1 |
| A | 9 | 143 | 16050 | 117.5 | 655 | 644 | 131.1 |
| B | 5 | 172 | 842571 | 6963.75 | 645 | 630 | 120.9 |
| B | 4 | 171 | 163470 | 1346.86 | 645 | 630 | 120.9 |
| B | 0 | 189 | 99455 | 817.39 | 645 | 630 | 120.9 |
| C | 0 | 10 | 301895 | 2073.42 | 635 | 641 | 145.3 |
| C | 15 | 214 | 228653 | 1569.32 | 635 | 641 | 145.3 |
| C | 14 | 254 | 212191 | 1456.02 | 635 | 641 | 145.3 |
| D | 8 | 195 | 1185191 | 7632.42 | 635 | 619 | 155.2 |
| D | 7 | 38 | 147536 | 946.61 | 635 | 619 | 155.2 |
| D | 13 | 249 | 124049 | 795.28 | 635 | 619 | 155.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

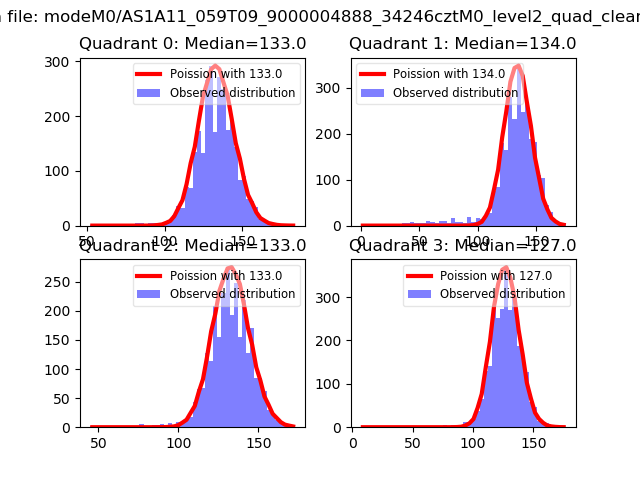

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

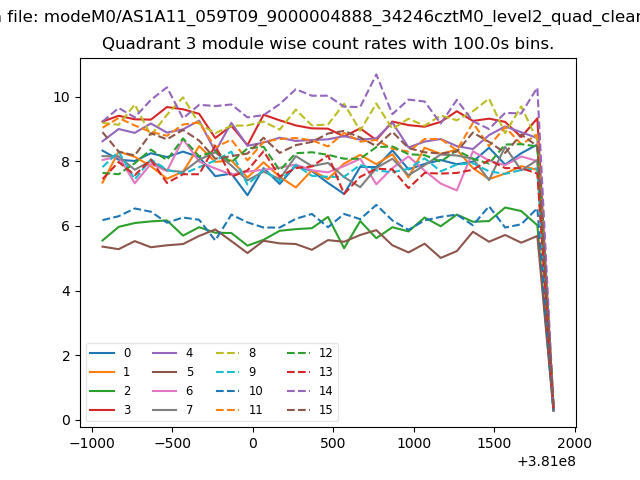

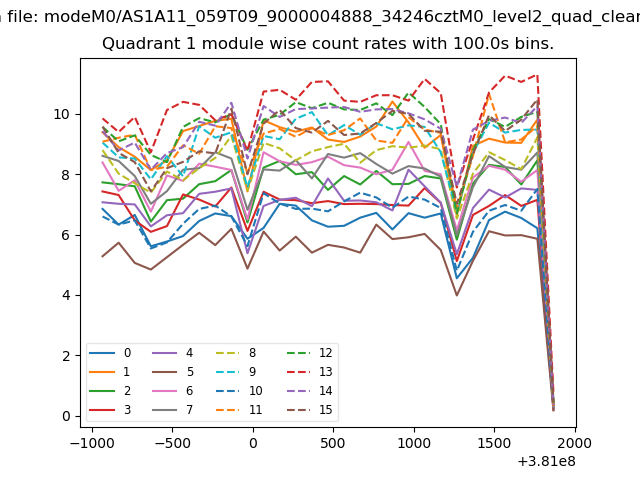

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

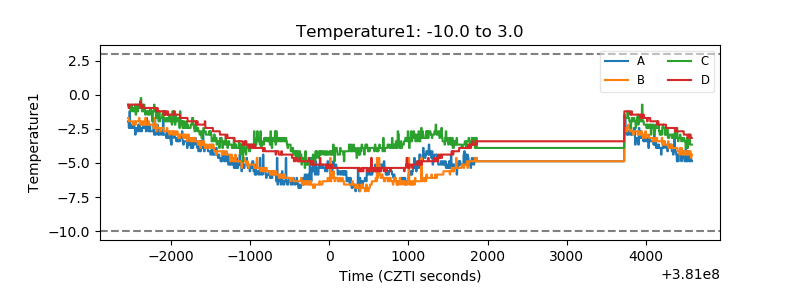

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

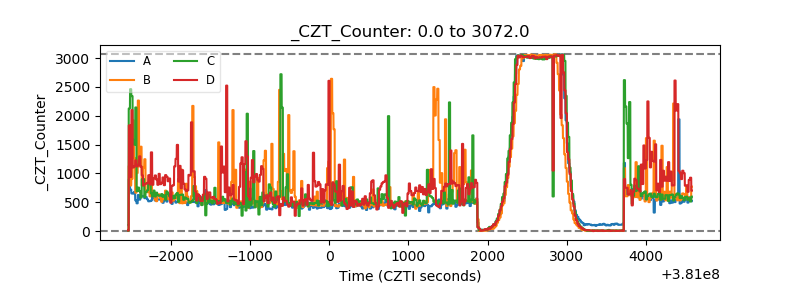

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
