| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_059T09_9000004888_34266cztM0_level2.evt | modeM0/AS1A11_059T09_9000004888_34266cztM0_level2_quad_clean.evt |
| Size (bytes) | 450,679,680 | 76,959,360 |
| Size | 429.8 MB | 73.4 MB |
| Events in quadrant A | 2,386,557 | 500,242 |
| Events in quadrant B | 3,173,025 | 505,637 |
| Events in quadrant C | 2,745,775 | 499,214 |
| Events in quadrant D | 4,990,196 | 460,708 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10632 | 0 |
| B | 0 | 12948 | 0 |
| C | 0 | 11367 | 0 |
| D | 0 | 18414 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 37 | 0 |
| B | 0 | 37 | 0 |
| C | 0 | 37 | 0 |
| D | 0 | 38 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5206 | 21 | 0.403381% |
| B | 5206 | 159 | 3.054168% |
| C | 5206 | 38 | 0.729927% |
| D | 5206 | 329 | 6.319631% |

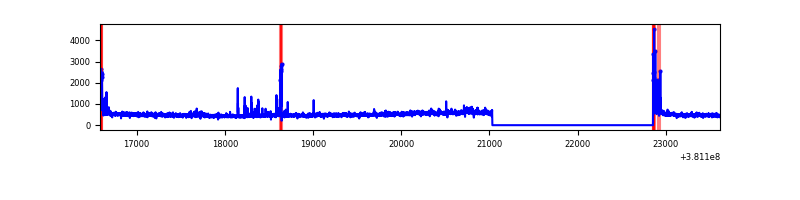

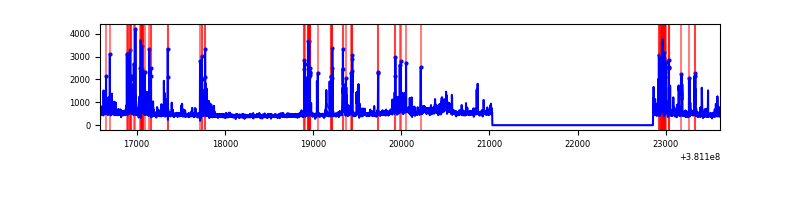

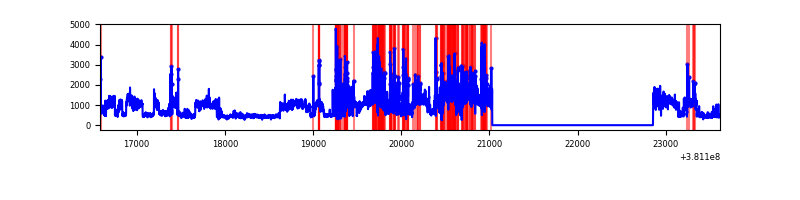

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7029 | 5207 | 11 | 11 | 0.16% | 0.21% |  |
| B | 7029 | 5207 | 106 | 106 | 1.51% | 2.04% |  |
| C | 7029 | 5207 | 28 | 28 | 0.40% | 0.54% |  |
| D | 7029 | 5207 | 230 | 230 | 3.27% | 4.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 55266 | 454.21 | 594 | 581 | 120.4 |
| A | 10 | 83 | 24280 | 196.84 | 594 | 581 | 120.4 |
| A | 13 | 6 | 10030 | 78.48 | 594 | 581 | 120.4 |
| B | 5 | 172 | 565693 | 5002.46 | 588 | 573 | 113.0 |
| B | 0 | 189 | 113409 | 998.83 | 588 | 573 | 113.0 |
| B | 0 | 229 | 99882 | 879.09 | 588 | 573 | 113.0 |
| C | 15 | 214 | 226803 | 1705.0 | 576 | 581 | 132.7 |
| C | 0 | 10 | 114689 | 860.02 | 576 | 581 | 132.7 |
| C | 14 | 67 | 64416 | 481.12 | 576 | 581 | 132.7 |
| D | 8 | 195 | 1886572 | 13599.36 | 560 | 542 | 138.7 |
| D | 2 | 250 | 469740 | 3383.19 | 560 | 542 | 138.7 |
| D | 13 | 249 | 306816 | 2208.41 | 560 | 542 | 138.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

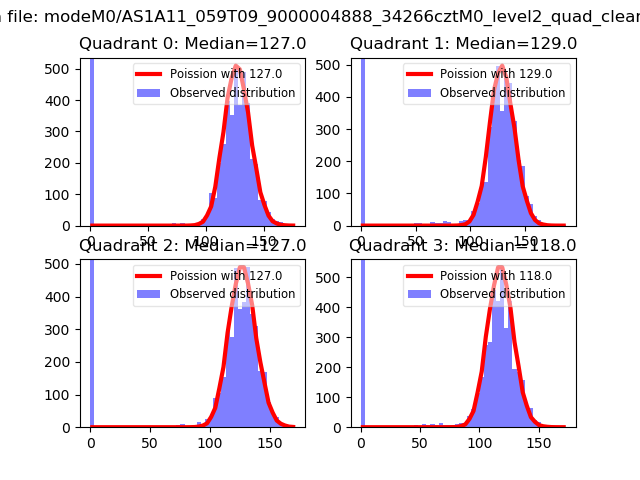

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

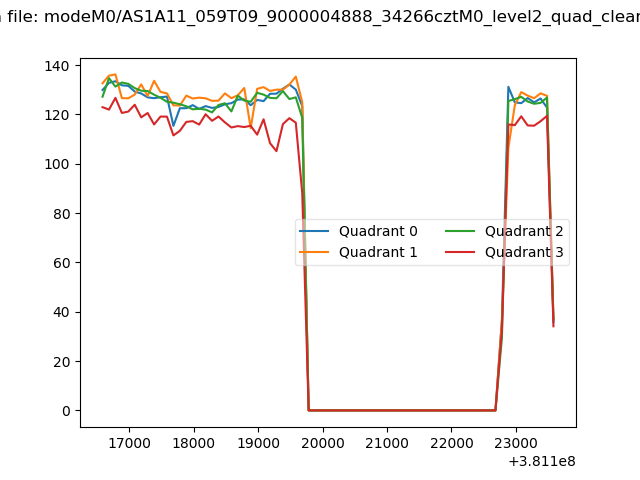

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

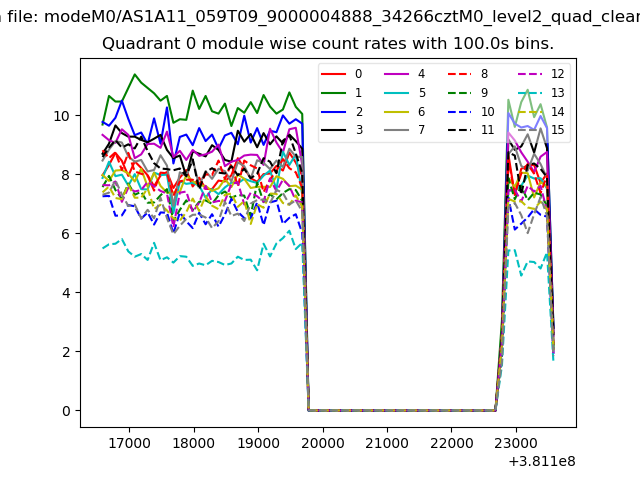

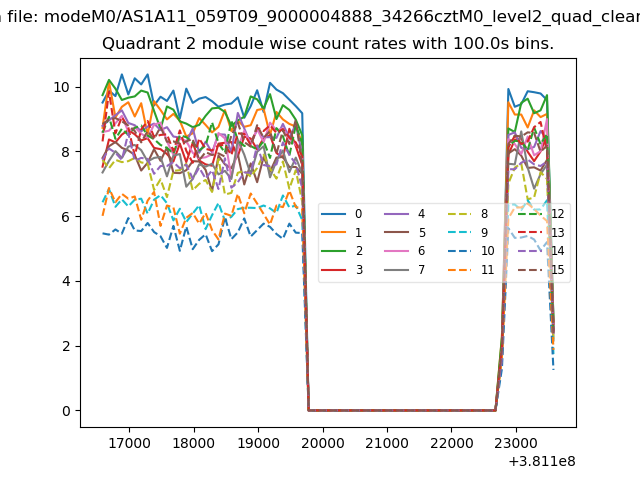

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

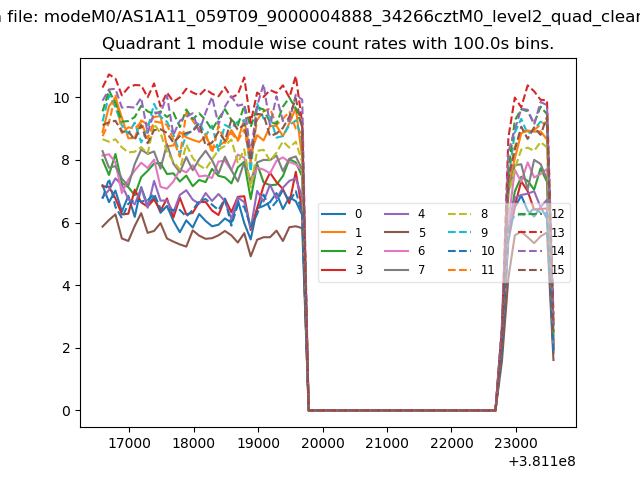

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

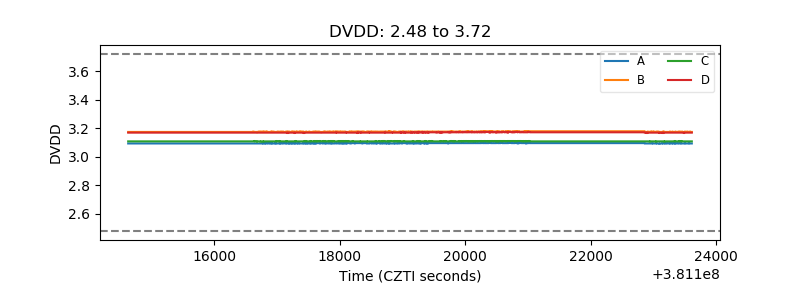

| D_VDD |  |

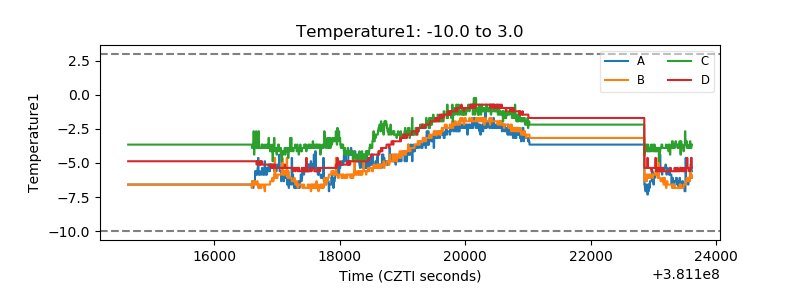

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

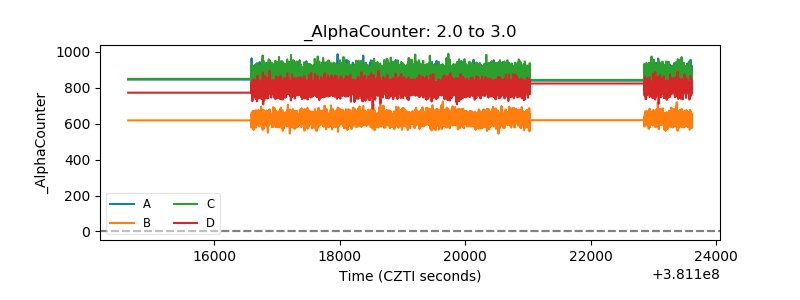

| Alpha Counter |  |

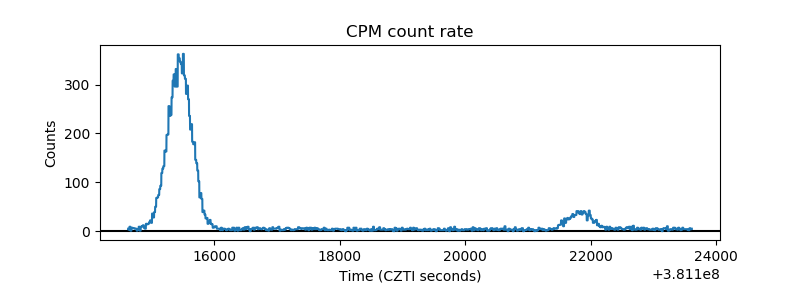

| _CPM_Rate |  |

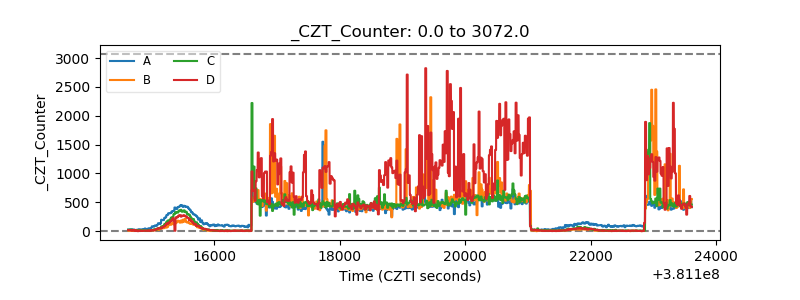

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

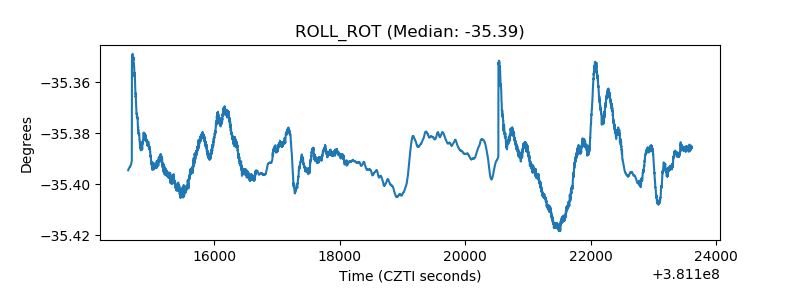

| _ROLL_ROT |  |

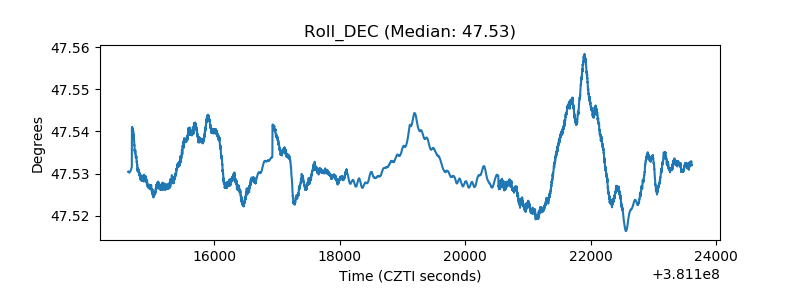

| _Roll_DEC |  |

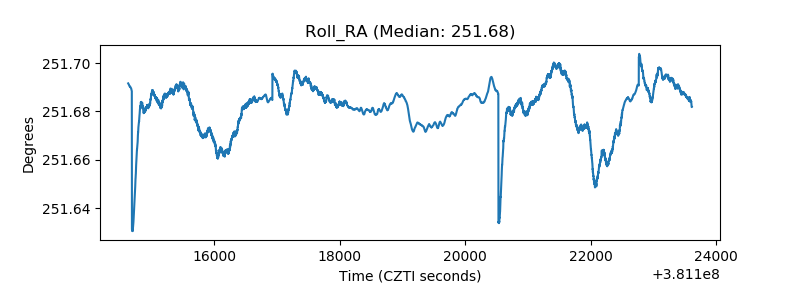

| _Roll_RA |  |

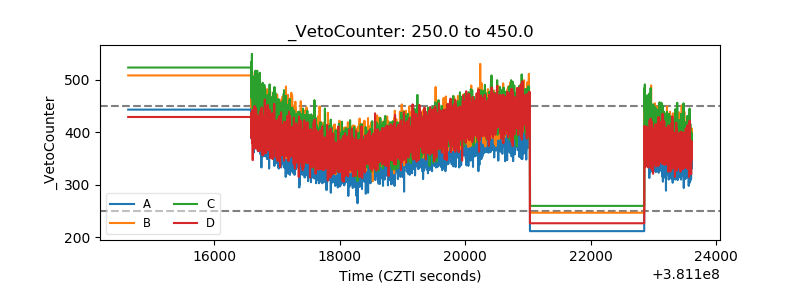

| Veto Counter |  |
