| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_003T01_9000004886_34224cztM0_level2.evt | modeM0/AS1T05_003T01_9000004886_34224cztM0_level2_quad_clean.evt |
| Size (bytes) | 517,728,960 | 86,037,120 |
| Size | 493.7 MB | 82.1 MB |
| Events in quadrant A | 2,843,069 | 554,301 |
| Events in quadrant B | 3,936,433 | 556,036 |
| Events in quadrant C | 3,709,106 | 562,560 |
| Events in quadrant D | 4,805,076 | 534,131 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12227 | 2 |
| B | 0 | 15308 | 1 |
| C | 0 | 14429 | 1 |
| D | 0 | 18148 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5694 | 66 | 1.159115% |
| B | 5694 | 302 | 5.303829% |
| C | 5694 | 224 | 3.933966% |
| D | 5694 | 260 | 4.566210% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

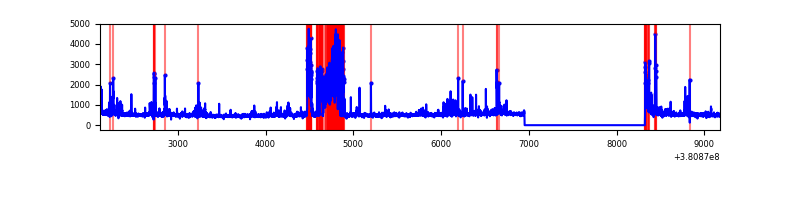

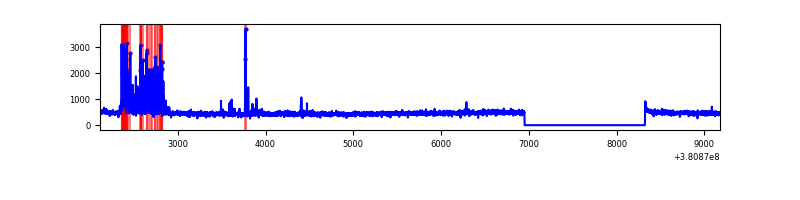

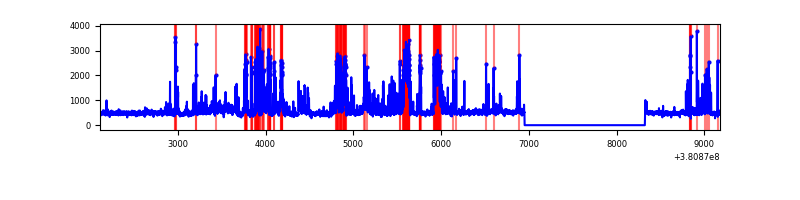

| A | 7067 | 5695 | 45 | 45 | 0.64% | 0.79% |  |
| B | 7067 | 5695 | 230 | 230 | 3.25% | 4.04% |  |
| C | 7067 | 5695 | 206 | 206 | 2.91% | 3.62% |  |
| D | 7067 | 5695 | 239 | 239 | 3.38% | 4.20% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 47 | 242512 | 1827.09 | 655 | 640 | 132.4 |
| A | 9 | 143 | 33573 | 248.77 | 655 | 640 | 132.4 |
| A | 10 | 83 | 17417 | 126.73 | 655 | 640 | 132.4 |
| B | 5 | 31 | 537463 | 4337.67 | 645 | 629 | 123.8 |
| B | 5 | 172 | 489092 | 3946.83 | 645 | 629 | 123.8 |
| B | 5 | 15 | 138762 | 1116.13 | 645 | 629 | 123.8 |
| C | 14 | 254 | 750355 | 5060.1 | 636 | 640 | 148.2 |
| C | 15 | 214 | 245277 | 1651.14 | 636 | 640 | 148.2 |
| C | 4 | 254 | 95485 | 640.14 | 636 | 640 | 148.2 |
| D | 8 | 195 | 916768 | 5856.52 | 639 | 622 | 156.4 |
| D | 7 | 80 | 724082 | 4624.76 | 639 | 622 | 156.4 |
| D | 1 | 52 | 334811 | 2136.32 | 639 | 622 | 156.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

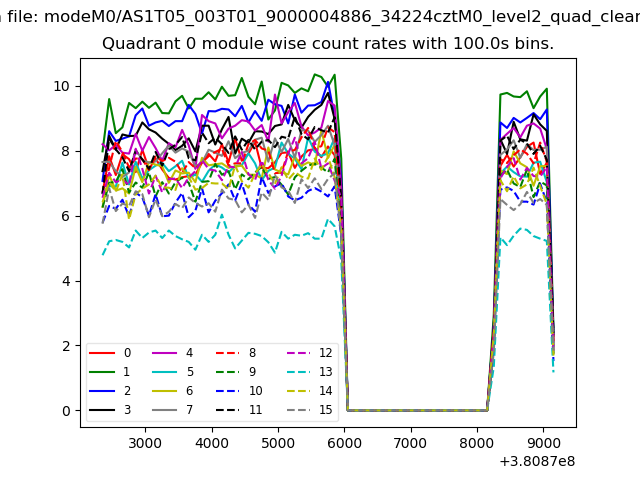

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

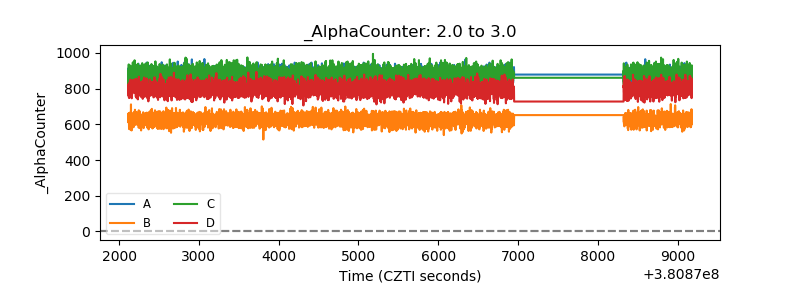

| Alpha Counter |  |
| _CPM_Rate |  |

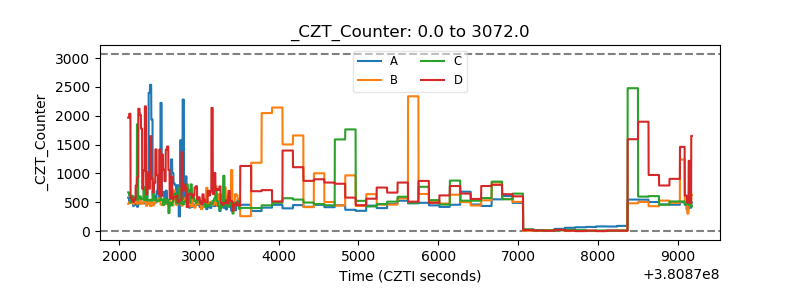

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

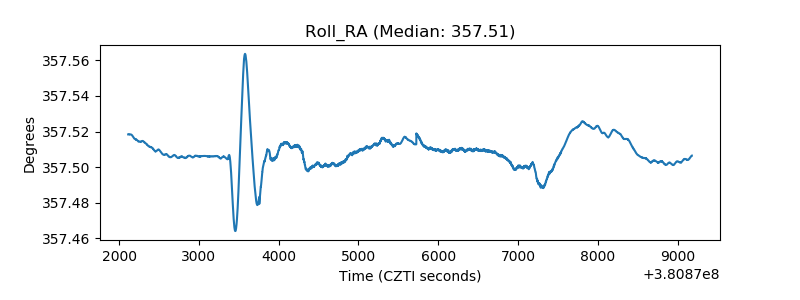

| _Roll_RA |  |

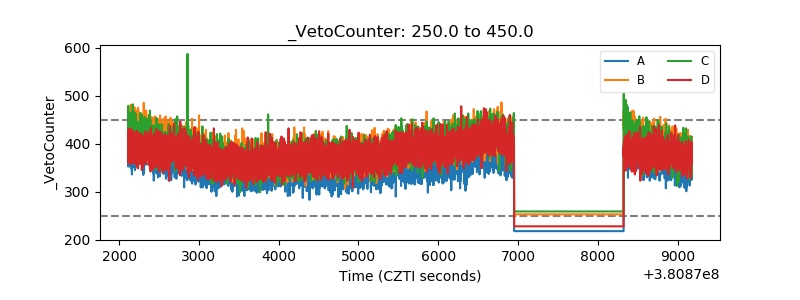

| Veto Counter |  |
