| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_003T01_9000004886_34232cztM0_level2.evt | modeM0/AS1T05_003T01_9000004886_34232cztM0_level2_quad_clean.evt |
| Size (bytes) | 430,444,800 | 64,408,320 |
| Size | 410.5 MB | 61.4 MB |
| Events in quadrant A | 2,650,495 | 392,513 |
| Events in quadrant B | 2,810,935 | 409,759 |
| Events in quadrant C | 3,380,915 | 393,313 |
| Events in quadrant D | 3,830,780 | 380,486 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 23 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11142 | 3 |
| B | 0 | 11602 | 2 |
| C | 0 | 13155 | 2 |
| D | 0 | 15036 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5345 | 12 | 0.224509% |
| B | 5345 | 38 | 0.710945% |
| C | 5345 | 152 | 2.843779% |
| D | 5345 | 142 | 2.656688% |

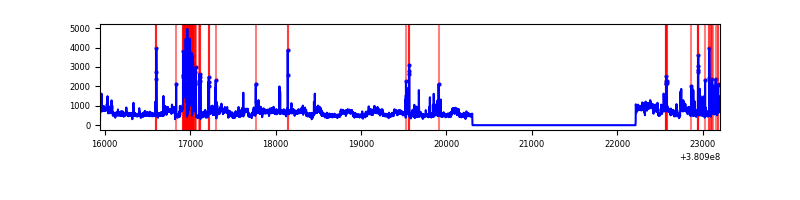

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7257 | 5346 | 6 | 6 | 0.08% | 0.11% |  |
| B | 7257 | 5346 | 16 | 16 | 0.22% | 0.30% |  |
| C | 7257 | 5346 | 109 | 109 | 1.50% | 2.04% |  |
| D | 7257 | 5346 | 126 | 126 | 1.74% | 2.36% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 56110 | 424.58 | 648 | 636 | 130.7 |
| A | 7 | 16 | 42211 | 318.2 | 648 | 636 | 130.7 |
| A | 10 | 83 | 23448 | 174.59 | 648 | 636 | 130.7 |
| B | 5 | 172 | 110054 | 884.3 | 658 | 643 | 123.7 |
| B | 0 | 189 | 36793 | 292.18 | 658 | 643 | 123.7 |
| B | 3 | 112 | 27022 | 213.2 | 658 | 643 | 123.7 |
| C | 0 | 10 | 326111 | 2188.08 | 642 | 648 | 148.7 |
| C | 15 | 214 | 231535 | 1552.25 | 642 | 648 | 148.7 |
| C | 14 | 254 | 157536 | 1054.75 | 642 | 648 | 148.7 |
| D | 8 | 195 | 787003 | 5118.05 | 639 | 623 | 153.6 |
| D | 12 | 6 | 355330 | 2308.56 | 639 | 623 | 153.6 |
| D | 2 | 249 | 92769 | 599.72 | 639 | 623 | 153.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

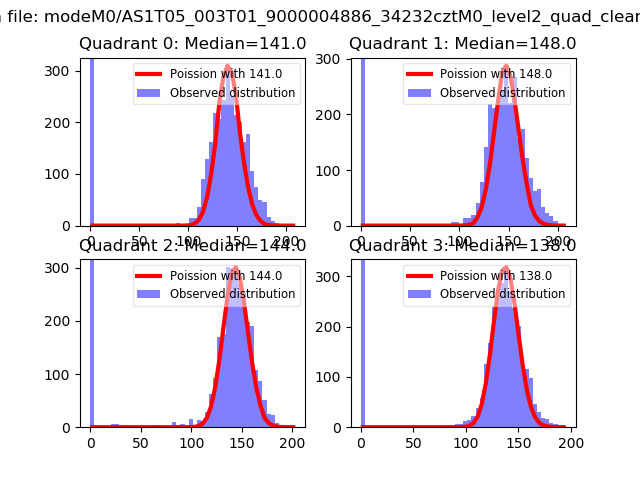

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

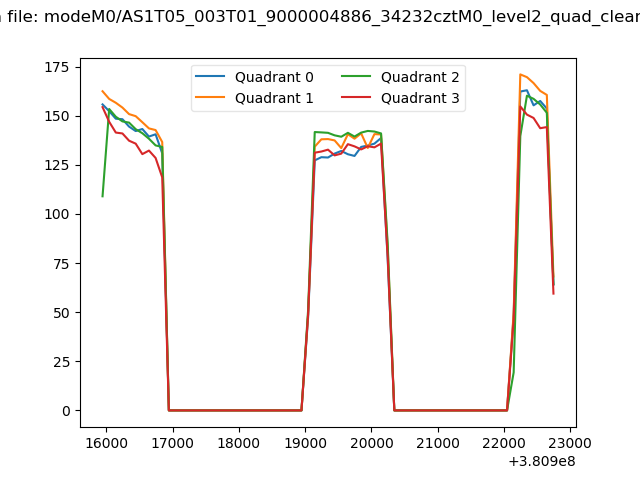

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

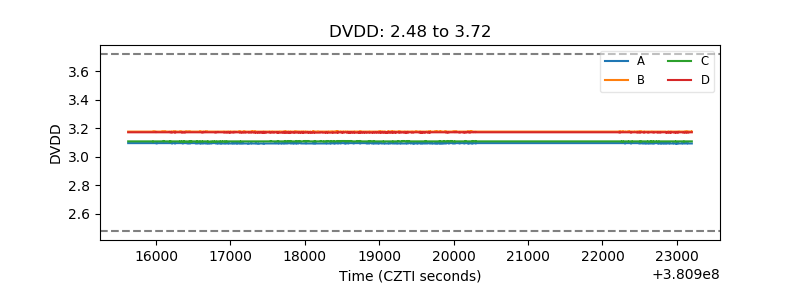

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

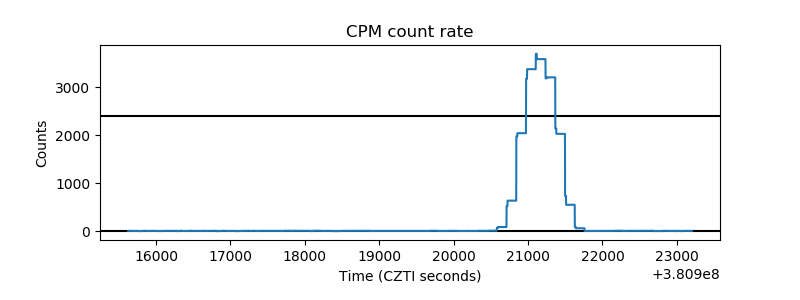

| _CPM_Rate |  |

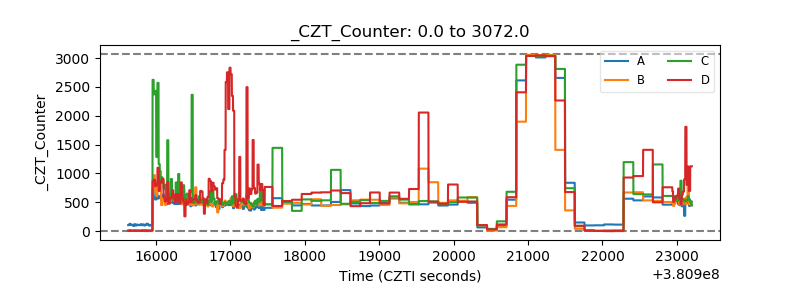

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

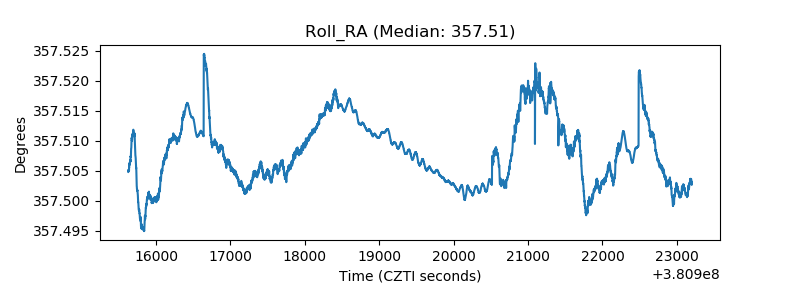

| _Roll_RA |  |
| Veto Counter |  |
