| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_086T01_9000004890_34292cztM0_level2.evt | modeM0/AS1T04_086T01_9000004890_34292cztM0_level2_quad_clean.evt |
| Size (bytes) | 446,693,760 | 61,007,040 |
| Size | 426.0 MB | 58.2 MB |
| Events in quadrant A | 2,379,290 | 377,202 |
| Events in quadrant B | 3,100,333 | 386,627 |
| Events in quadrant C | 2,807,521 | 386,366 |
| Events in quadrant D | 4,911,989 | 356,126 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9988 | 3 |
| B | 0 | 12266 | 2 |
| C | 0 | 11093 | 2 |
| D | 0 | 18126 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 98 | 0 |
| B | 0 | 98 | 0 |
| C | 0 | 98 | 0 |
| D | 0 | 98 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32 | 0 |
| B | 0 | 32 | 0 |
| C | 0 | 32 | 0 |
| D | 0 | 33 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4857 | 12 | 0.247066% |
| B | 4857 | 129 | 2.655960% |
| C | 4857 | 52 | 1.070620% |
| D | 4857 | 204 | 4.200124% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6979 | 4858 | 4 | 4 | 0.06% | 0.08% |  |
| B | 6979 | 4858 | 73 | 73 | 1.05% | 1.50% |  |
| C | 6979 | 4858 | 39 | 39 | 0.56% | 0.80% |  |
| D | 6979 | 4858 | 180 | 180 | 2.58% | 3.71% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 28073 | 228.69 | 598 | 587 | 120.2 |
| A | 10 | 83 | 27645 | 225.13 | 598 | 587 | 120.2 |
| A | 13 | 6 | 8720 | 67.67 | 598 | 587 | 120.2 |
| B | 5 | 172 | 491263 | 4293.65 | 604 | 588 | 114.3 |
| B | 4 | 251 | 170168 | 1483.91 | 604 | 588 | 114.3 |
| B | 15 | 222 | 13996 | 117.33 | 604 | 588 | 114.3 |
| C | 15 | 214 | 213100 | 1524.84 | 602 | 611 | 139.4 |
| C | 0 | 10 | 111087 | 792.79 | 602 | 611 | 139.4 |
| C | 14 | 254 | 50461 | 357.73 | 602 | 611 | 139.4 |
| D | 8 | 195 | 942690 | 6110.2 | 586 | 576 | 154.2 |
| D | 7 | 223 | 565911 | 3666.55 | 586 | 576 | 154.2 |
| D | 12 | 235 | 350521 | 2269.61 | 586 | 576 | 154.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

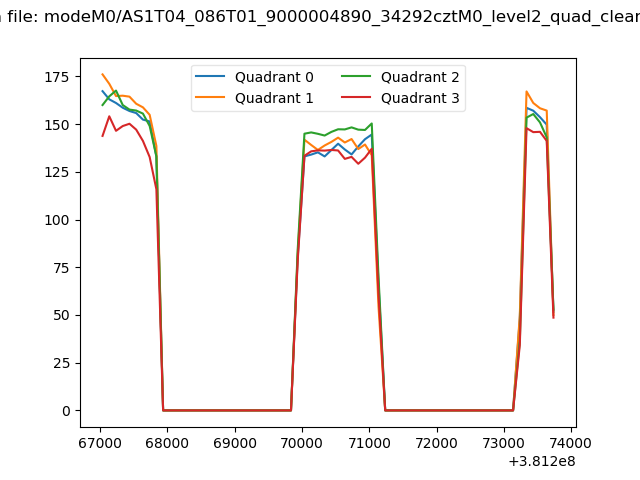

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

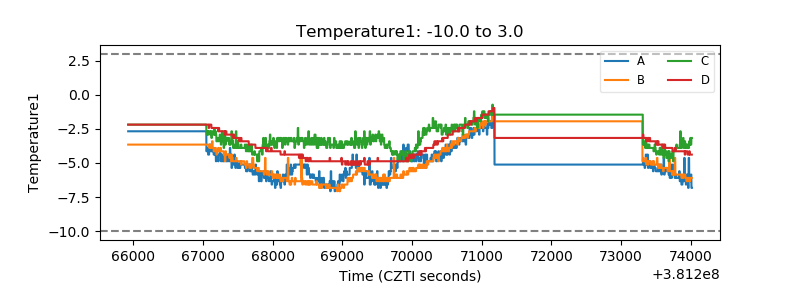

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

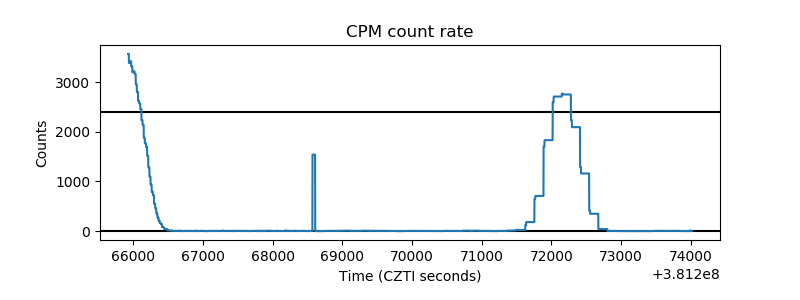

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

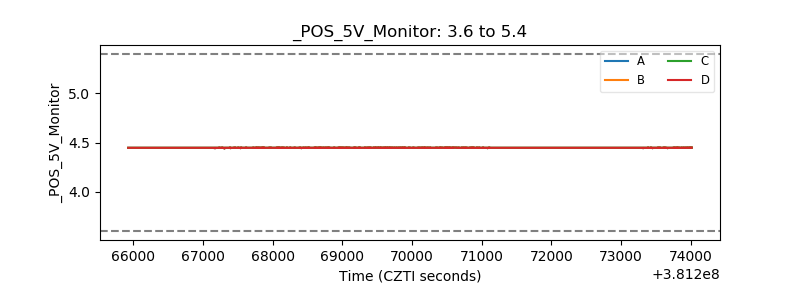

| +5 Volts monitor |  |
| _ROLL_ROT |  |

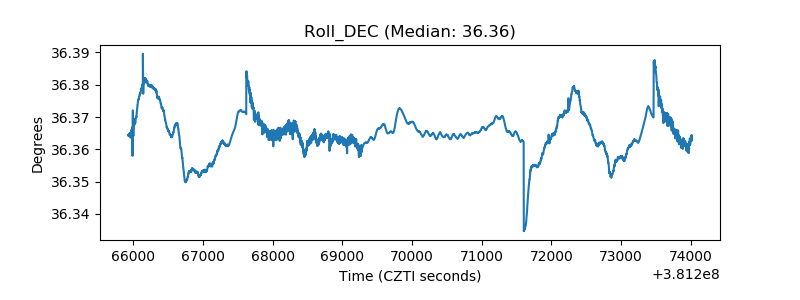

| _Roll_DEC |  |

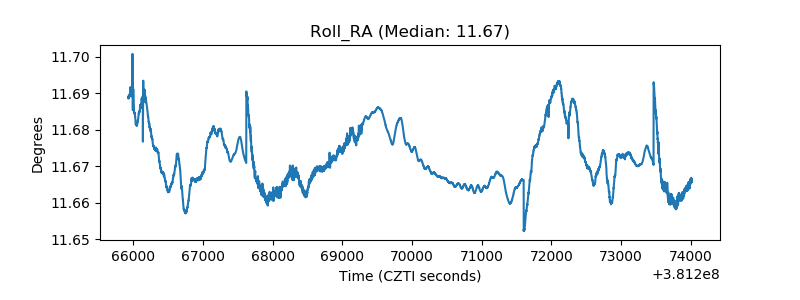

| _Roll_RA |  |

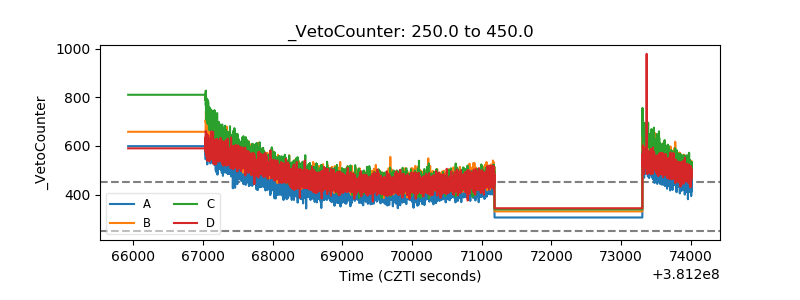

| Veto Counter |  |
