| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_086T01_9000004890_34297cztM0_level2.evt | modeM0/AS1T04_086T01_9000004890_34297cztM0_level2_quad_clean.evt |
| Size (bytes) | 470,448,000 | 84,749,760 |
| Size | 448.7 MB | 80.8 MB |
| Events in quadrant A | 2,711,208 | 535,529 |
| Events in quadrant B | 3,595,851 | 543,402 |
| Events in quadrant C | 3,035,716 | 553,934 |
| Events in quadrant D | 4,505,493 | 522,277 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11936 | 3 |
| B | 0 | 14393 | 2 |
| C | 0 | 12370 | 2 |
| D | 0 | 17479 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5885 | 11 | 0.186916% |
| B | 5885 | 182 | 3.092608% |
| C | 5885 | 29 | 0.492778% |
| D | 5885 | 73 | 1.240442% |

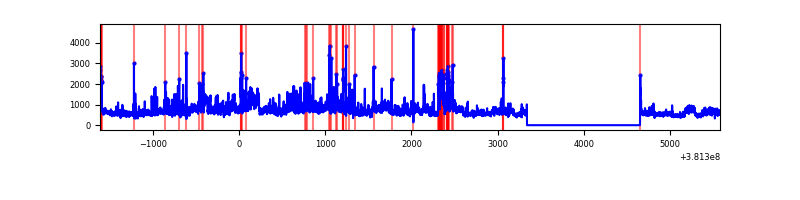

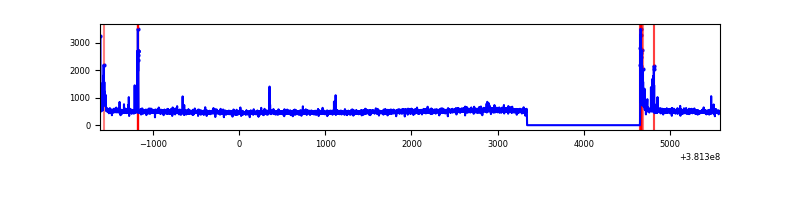

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7198 | 5886 | 4 | 4 | 0.06% | 0.07% |  |
| B | 7198 | 5886 | 129 | 129 | 1.79% | 2.19% |  |
| C | 7198 | 5886 | 21 | 21 | 0.29% | 0.36% |  |
| D | 7198 | 5886 | 76 | 76 | 1.06% | 1.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 34366 | 245.25 | 681 | 667 | 137.4 |
| A | 10 | 83 | 28368 | 201.6 | 681 | 667 | 137.4 |
| A | 13 | 6 | 12808 | 88.36 | 681 | 667 | 137.4 |
| B | 5 | 172 | 538282 | 4164.15 | 669 | 652 | 129.1 |
| B | 4 | 251 | 137483 | 1059.81 | 669 | 652 | 129.1 |
| B | 0 | 190 | 97646 | 751.25 | 669 | 652 | 129.1 |
| C | 15 | 214 | 252897 | 1623.2 | 669 | 673 | 155.4 |
| C | 0 | 10 | 84750 | 541.08 | 669 | 673 | 155.4 |
| C | 9 | 187 | 34362 | 216.8 | 669 | 673 | 155.4 |
| D | 12 | 235 | 1084356 | 6157.45 | 665 | 652 | 176.0 |
| D | 8 | 195 | 494251 | 2804.56 | 665 | 652 | 176.0 |
| D | 7 | 223 | 213839 | 1211.3 | 665 | 652 | 176.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

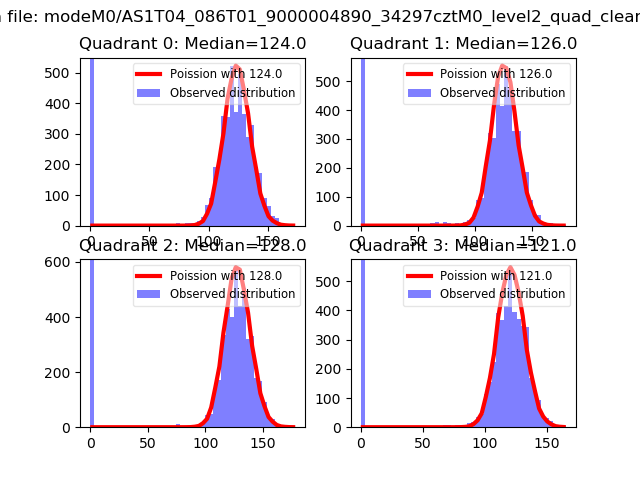

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

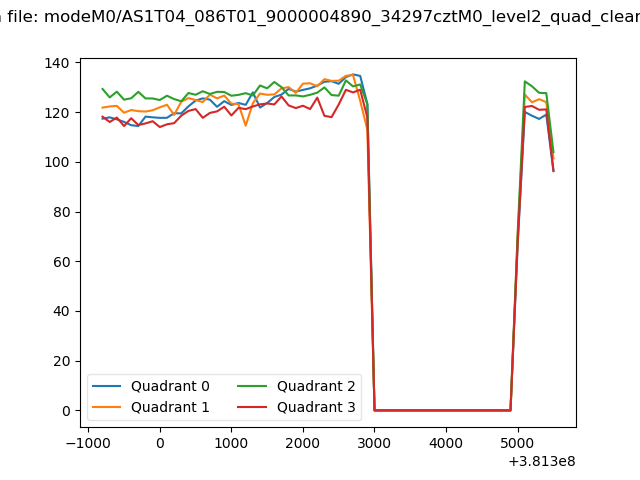

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

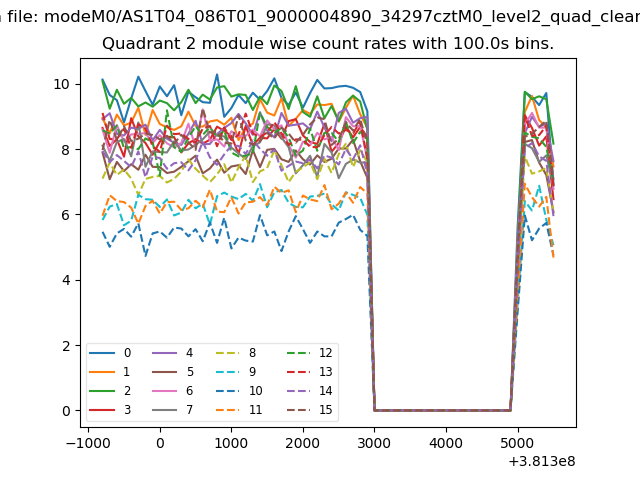

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

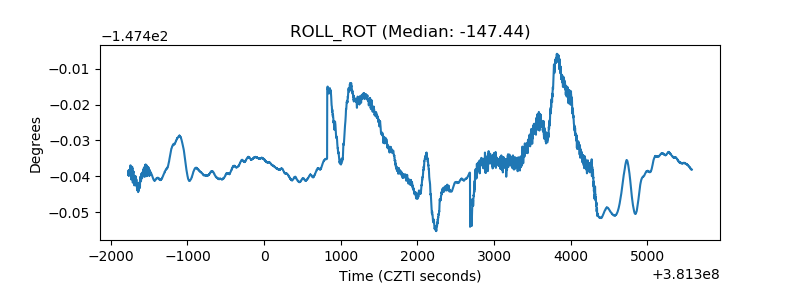

| _ROLL_ROT |  |

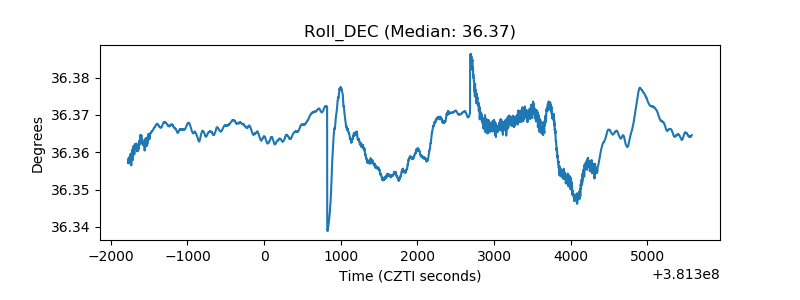

| _Roll_DEC |  |

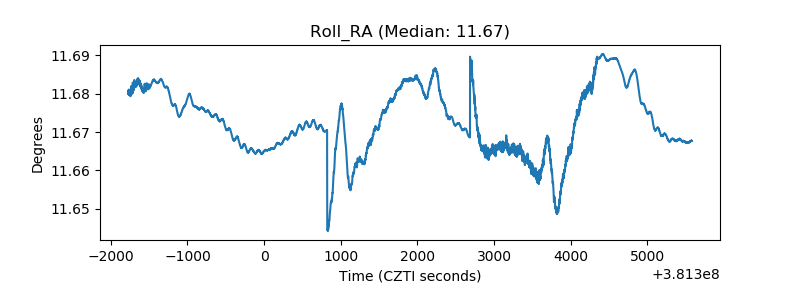

| _Roll_RA |  |
| Veto Counter |  |
