| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_091T01_9000004894_34309cztM0_level2.evt | modeM0/AS1A11_091T01_9000004894_34309cztM0_level2_quad_clean.evt |
| Size (bytes) | 298,920,960 | 49,717,440 |
| Size | 285.1 MB | 47.4 MB |
| Events in quadrant A | 1,634,813 | 315,689 |
| Events in quadrant B | 2,160,355 | 320,330 |
| Events in quadrant C | 1,817,502 | 319,063 |
| Events in quadrant D | 3,196,380 | 297,234 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7236 | 1 |
| B | 0 | 8880 | 0 |
| C | 0 | 7576 | 0 |
| D | 0 | 11990 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 74 | 0 |
| B | 0 | 74 | 0 |
| C | 0 | 74 | 0 |
| D | 0 | 74 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3569 | 5 | 0.140095% |
| B | 3569 | 65 | 1.821238% |
| C | 3569 | 13 | 0.364248% |
| D | 3569 | 216 | 6.052115% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5512 | 3570 | 0 | 0 | 0.00% | 0.00% |  |
| B | 5512 | 3570 | 38 | 38 | 0.69% | 1.06% |  |
| C | 5512 | 3570 | 6 | 6 | 0.11% | 0.17% |  |
| D | 5512 | 3570 | 142 | 142 | 2.58% | 3.98% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 14646 | 168.58 | 414 | 407 | 84.5 |
| A | 13 | 6 | 9193 | 104.02 | 414 | 407 | 84.5 |
| A | 9 | 143 | 8109 | 91.19 | 414 | 407 | 84.5 |
| B | 4 | 171 | 155464 | 1945.46 | 411 | 400 | 79.7 |
| B | 5 | 172 | 126941 | 1587.61 | 411 | 400 | 79.7 |
| B | 5 | 31 | 90114 | 1125.57 | 411 | 400 | 79.7 |
| C | 15 | 214 | 151627 | 1623.27 | 401 | 403 | 93.2 |
| C | 0 | 10 | 51552 | 549.04 | 401 | 403 | 93.2 |
| C | 14 | 67 | 29967 | 317.35 | 401 | 403 | 93.2 |
| D | 10 | 118 | 448057 | 4615.09 | 393 | 382 | 97.0 |
| D | 12 | 235 | 419259 | 4318.21 | 393 | 382 | 97.0 |
| D | 8 | 195 | 343698 | 3539.25 | 393 | 382 | 97.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

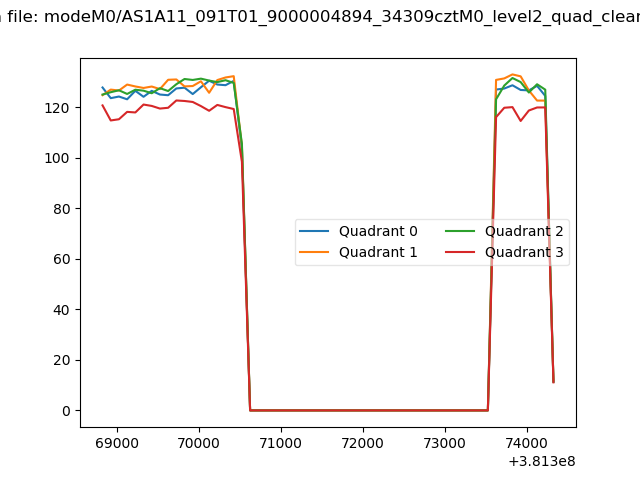

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

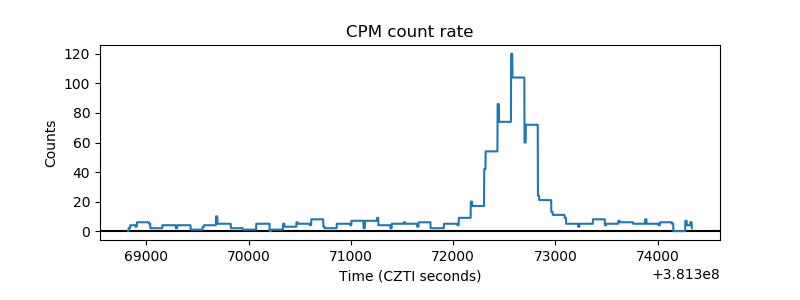

| _CPM_Rate |  |

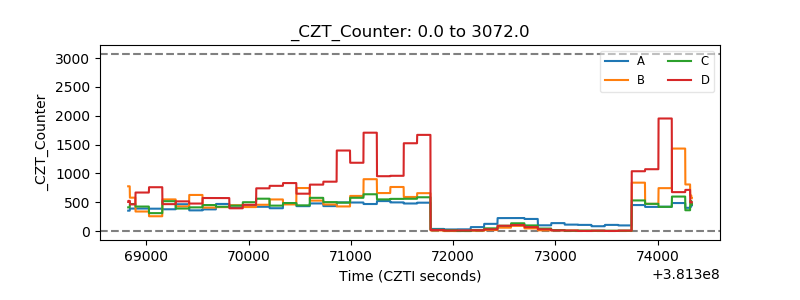

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

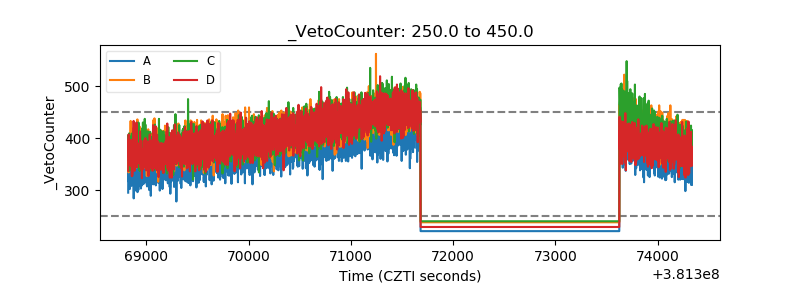

| Veto Counter |  |
