| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_012T02_9000004898_34318cztM0_level2.evt | modeM0/AS1A05_012T02_9000004898_34318cztM0_level2_quad_clean.evt |
| Size (bytes) | 205,752,960 | 26,121,600 |
| Size | 196.2 MB | 24.9 MB |
| Events in quadrant A | 858,178 | 183,618 |
| Events in quadrant B | 957,739 | 187,106 |
| Events in quadrant C | 971,376 | 183,277 |
| Events in quadrant D | 3,330,615 | 115,822 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3611 | 2 |
| B | 0 | 3908 | 1 |
| C | 0 | 3989 | 1 |
| D | 0 | 10998 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 34 | 0 |
| B | 0 | 34 | 0 |
| C | 0 | 34 | 0 |
| D | 0 | 34 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1638 | 5 | 0.305250% |
| B | 1638 | 17 | 1.037851% |
| C | 1638 | 12 | 0.732601% |
| D | 1638 | 993 | 60.622711% |

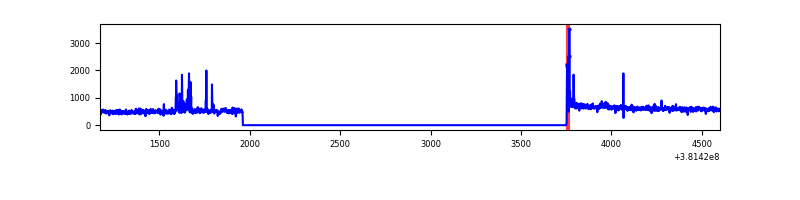

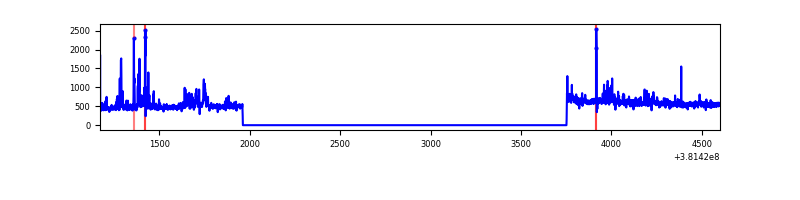

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3430 | 1639 | 0 | 0 | 0.00% | 0.00% |  |
| B | 3430 | 1639 | 5 | 5 | 0.15% | 0.31% |  |
| C | 3430 | 1639 | 4 | 4 | 0.12% | 0.24% |  |
| D | 3430 | 1639 | 848 | 848 | 24.72% | 51.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 13693 | 300.17 | 217 | 213 | 44.9 |
| A | 13 | 6 | 5093 | 108.67 | 217 | 213 | 44.9 |
| A | 13 | 254 | 2593 | 53.0 | 217 | 213 | 44.9 |
| B | 5 | 172 | 69671 | 1614.41 | 216 | 210 | 43.0 |
| B | 4 | 251 | 22513 | 518.36 | 216 | 210 | 43.0 |
| B | 0 | 190 | 8989 | 204.04 | 216 | 210 | 43.0 |
| C | 15 | 214 | 71935 | 1428.57 | 211 | 213 | 50.2 |
| C | 14 | 254 | 36784 | 728.43 | 211 | 213 | 50.2 |
| C | 0 | 10 | 22972 | 453.32 | 211 | 213 | 50.2 |
| D | 1 | 52 | 1945667 | 48441.98 | 142 | 139 | 40.2 |
| D | 12 | 227 | 337241 | 8393.55 | 142 | 139 | 40.2 |
| D | 8 | 195 | 202939 | 5049.55 | 142 | 139 | 40.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

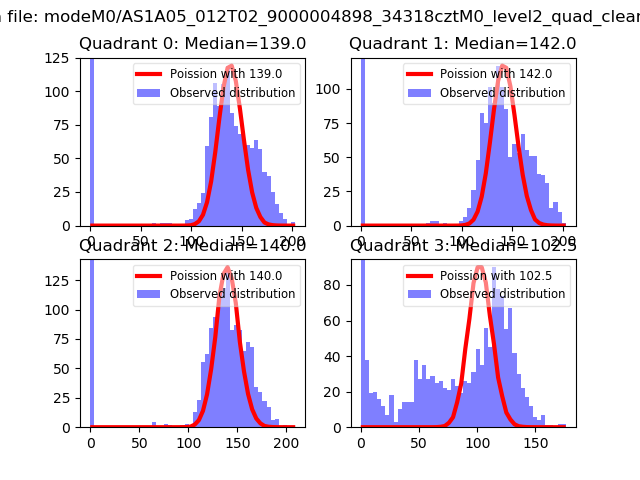

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

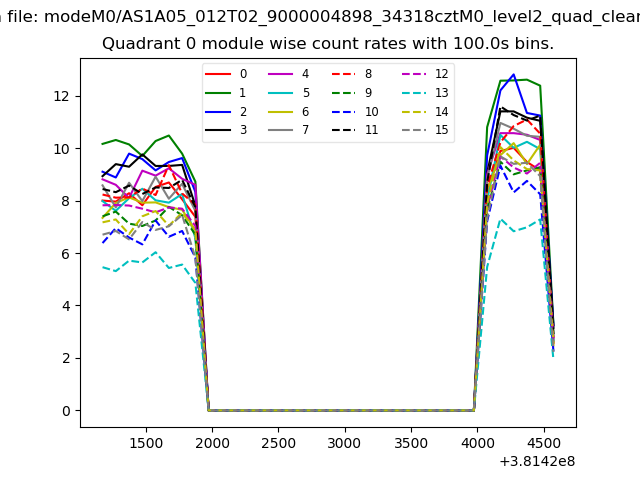

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

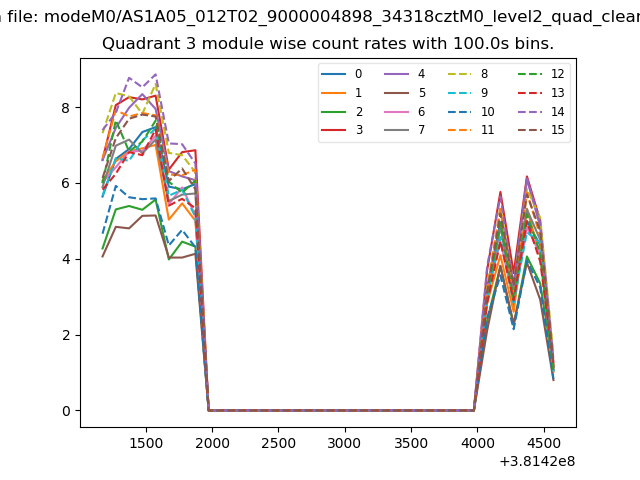

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

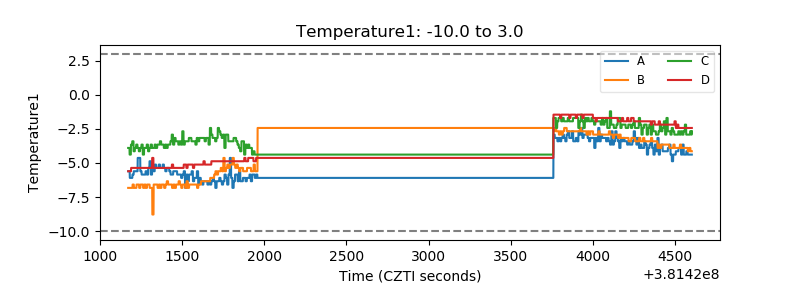

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

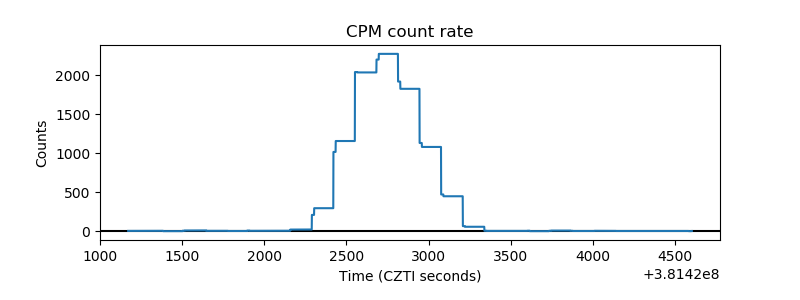

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

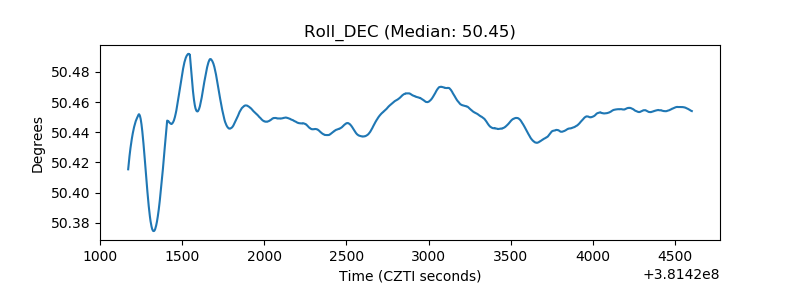

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
