| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_012T02_9000004898_34320cztM0_level2.evt | modeM0/AS1A05_012T02_9000004898_34320cztM0_level2_quad_clean.evt |
| Size (bytes) | 609,742,080 | 100,920,960 |
| Size | 581.5 MB | 96.2 MB |
| Events in quadrant A | 2,585,183 | 705,219 |
| Events in quadrant B | 3,098,562 | 721,889 |
| Events in quadrant C | 3,634,665 | 700,257 |
| Events in quadrant D | 8,804,953 | 572,860 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10825 | 2 |
| B | 0 | 12432 | 1 |
| C | 0 | 14106 | 1 |
| D | 0 | 29678 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 22 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5072 | 17 | 0.335174% |
| B | 5072 | 72 | 1.419558% |
| C | 5072 | 236 | 4.652997% |
| D | 5072 | 1725 | 34.010252% |

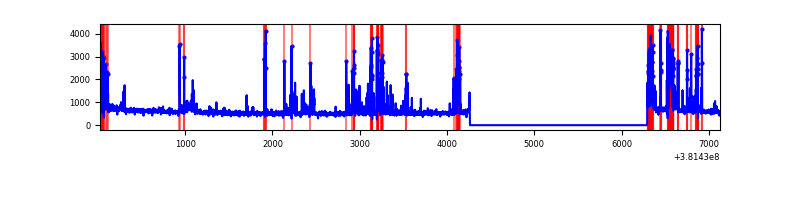

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7104 | 5073 | 8 | 8 | 0.11% | 0.16% |  |
| B | 7104 | 5073 | 48 | 48 | 0.68% | 0.95% |  |
| C | 7104 | 5073 | 175 | 175 | 2.46% | 3.45% |  |
| D | 7104 | 5072 | 1726 | 1726 | 24.30% | 34.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 191 | 39553 | 298.39 | 649 | 638 | 130.4 |
| A | 10 | 83 | 29376 | 220.35 | 649 | 638 | 130.4 |
| A | 13 | 6 | 9506 | 68.0 | 649 | 638 | 130.4 |
| B | 5 | 172 | 264211 | 2178.76 | 652 | 638 | 121.0 |
| B | 5 | 31 | 65868 | 539.21 | 652 | 638 | 121.0 |
| B | 0 | 199 | 62135 | 508.35 | 652 | 638 | 121.0 |
| C | 14 | 254 | 719214 | 4941.92 | 637 | 644 | 145.4 |
| C | 15 | 214 | 211093 | 1447.35 | 637 | 644 | 145.4 |
| C | 0 | 10 | 177262 | 1214.68 | 637 | 644 | 145.4 |
| D | 12 | 227 | 3144394 | 23487.33 | 559 | 546 | 133.9 |
| D | 12 | 235 | 1729023 | 12913.25 | 559 | 546 | 133.9 |
| D | 1 | 52 | 678426 | 5064.36 | 559 | 546 | 133.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

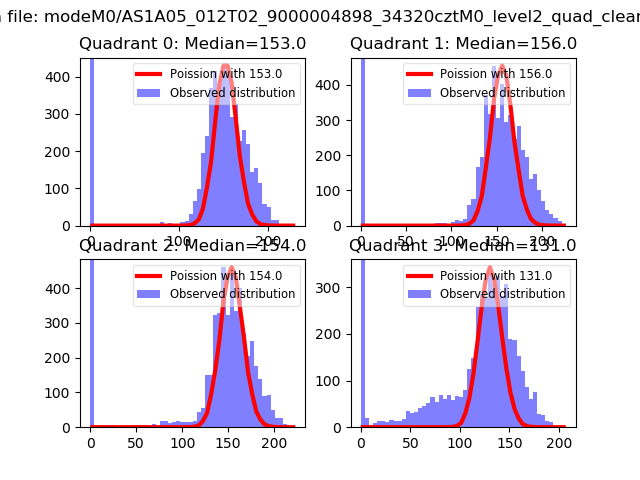

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

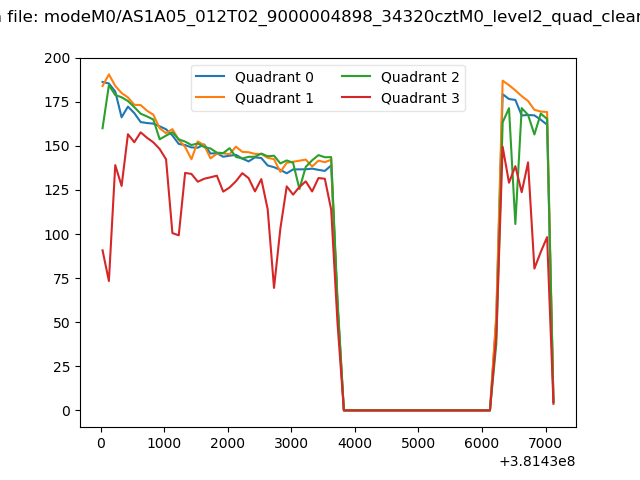

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

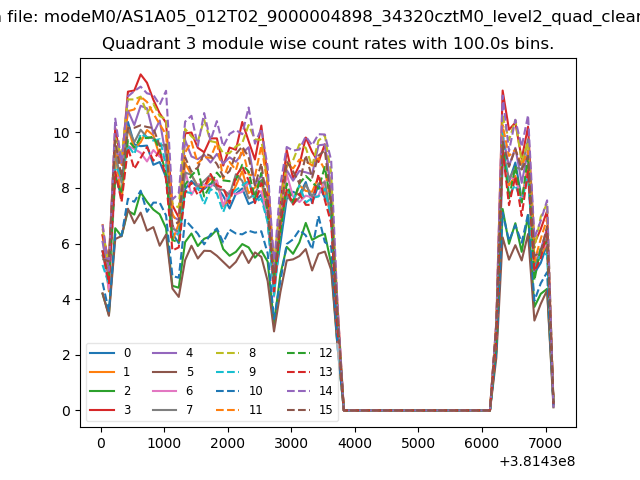

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

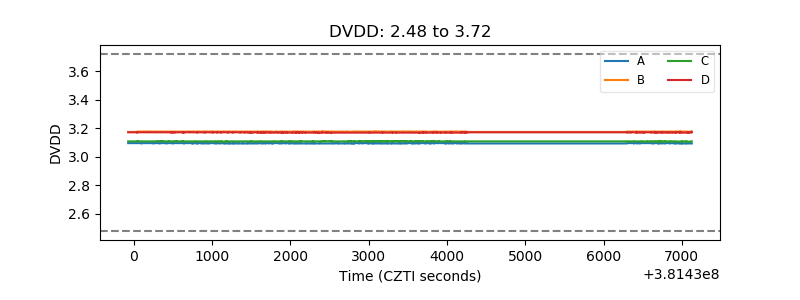

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

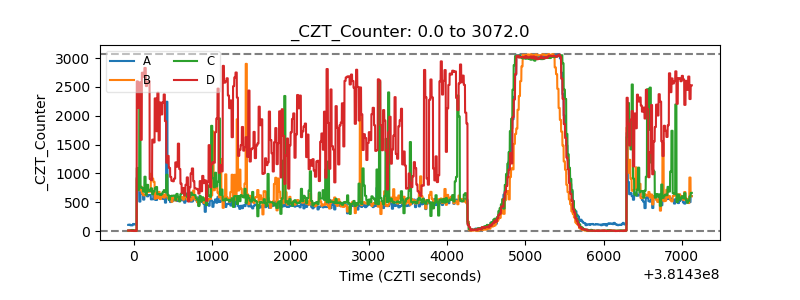

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

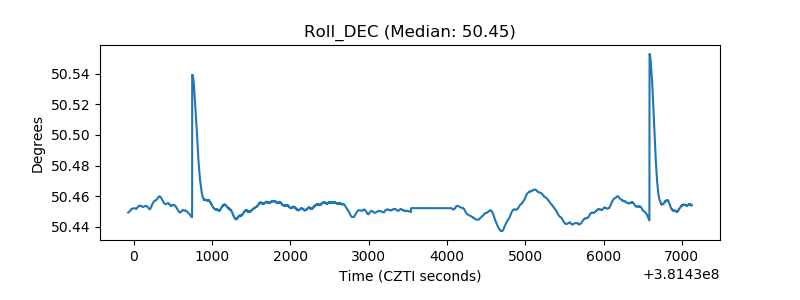

| _Roll_DEC |  |
| _Roll_RA |  |

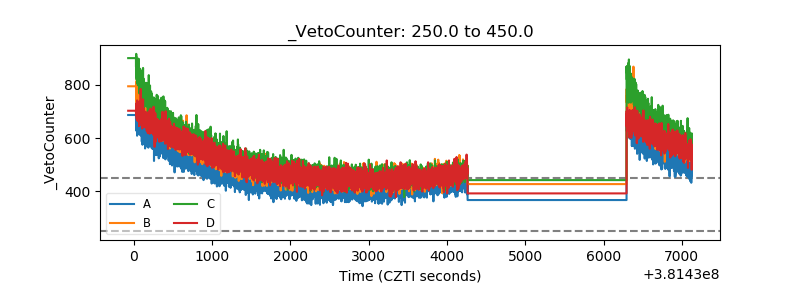

| Veto Counter |  |
