| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_082T08_9000004900_34324cztM0_level2.evt | modeM0/AS1A05_082T08_9000004900_34324cztM0_level2_quad_clean.evt |
| Size (bytes) | 821,531,520 | 132,701,760 |
| Size | 783.5 MB | 126.6 MB |
| Events in quadrant A | 4,529,683 | 842,399 |
| Events in quadrant B | 5,378,883 | 857,671 |
| Events in quadrant C | 5,497,154 | 850,792 |
| Events in quadrant D | 8,810,569 | 787,338 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 47 | 0 |
| B | 0 | 47 | 0 |
| C | 0 | 47 | 0 |
| D | 0 | 48 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 200 | 0 |
| B | 0 | 200 | 0 |
| C | 0 | 200 | 0 |
| D | 0 | 200 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20027 | 4 |
| B | 0 | 22287 | 3 |
| C | 0 | 22183 | 3 |
| D | 0 | 33126 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 9823 | 22 | 0.223964% |
| B | 9823 | 125 | 1.272524% |
| C | 9823 | 116 | 1.180902% |
| D | 9823 | 652 | 6.637483% |

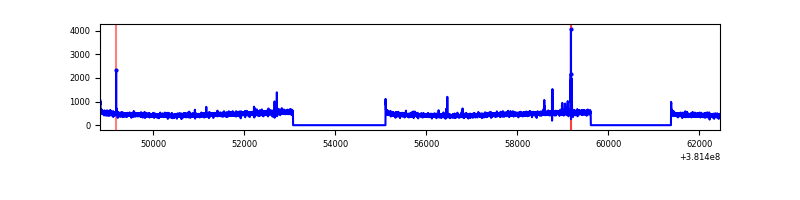

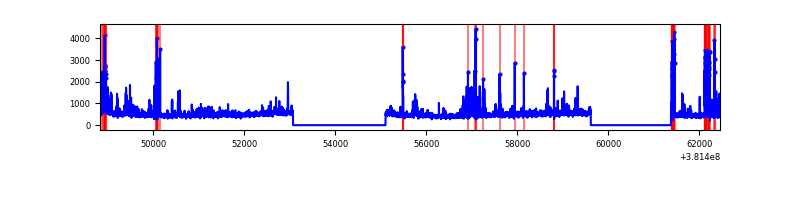

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13618 | 9825 | 3 | 3 | 0.02% | 0.03% |  |
| B | 13618 | 9825 | 79 | 79 | 0.58% | 0.80% |  |
| C | 13618 | 9825 | 94 | 94 | 0.69% | 0.96% |  |
| D | 13618 | 9825 | 470 | 470 | 3.45% | 4.78% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 45482 | 193.53 | 1150 | 1126 | 229.2 |
| A | 9 | 143 | 29593 | 124.21 | 1150 | 1126 | 229.2 |
| A | 13 | 254 | 15641 | 63.33 | 1150 | 1126 | 229.2 |
| B | 5 | 172 | 462637 | 2116.44 | 1147 | 1120 | 218.1 |
| B | 0 | 190 | 153870 | 700.49 | 1147 | 1120 | 218.1 |
| B | 5 | 31 | 83967 | 379.92 | 1147 | 1120 | 218.1 |
| C | 14 | 254 | 420878 | 1630.33 | 1123 | 1134 | 257.5 |
| C | 15 | 214 | 406287 | 1573.66 | 1123 | 1134 | 257.5 |
| C | 0 | 10 | 179118 | 691.31 | 1123 | 1134 | 257.5 |
| D | 8 | 195 | 1670162 | 6207.99 | 1098 | 1070 | 268.9 |
| D | 12 | 235 | 1162262 | 4318.92 | 1098 | 1070 | 268.9 |
| D | 10 | 118 | 899566 | 3341.85 | 1098 | 1070 | 268.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

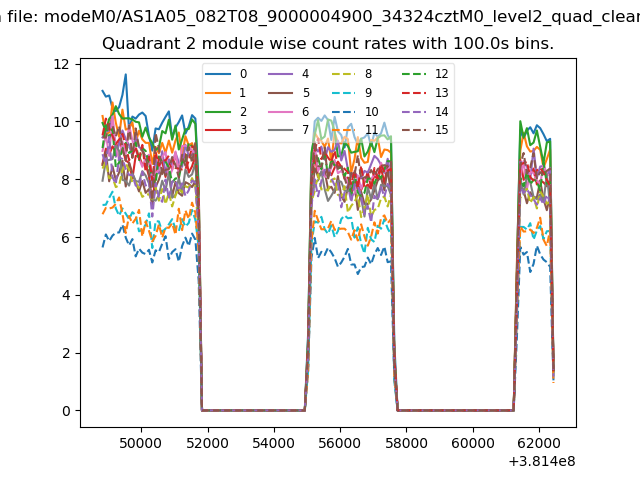

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

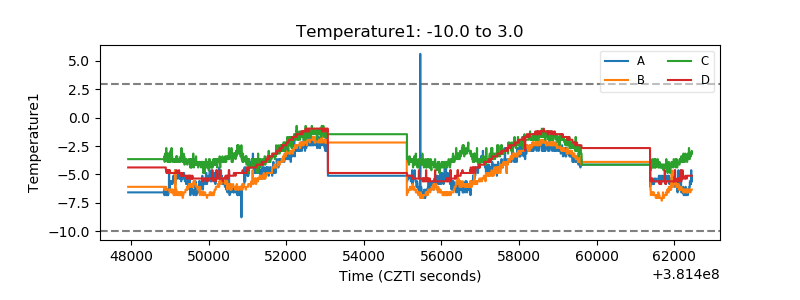

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

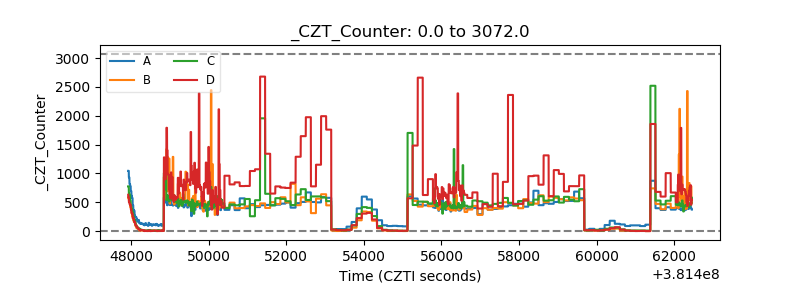

| CZT Counter |  |

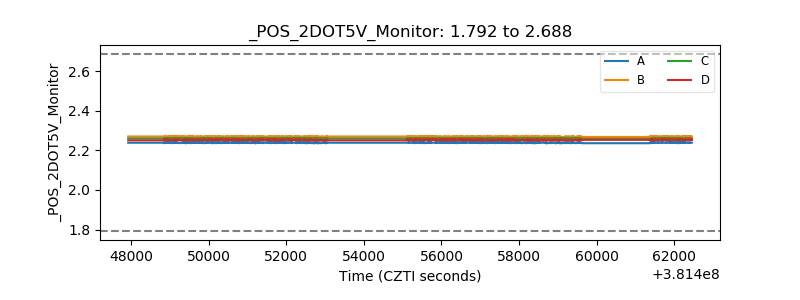

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

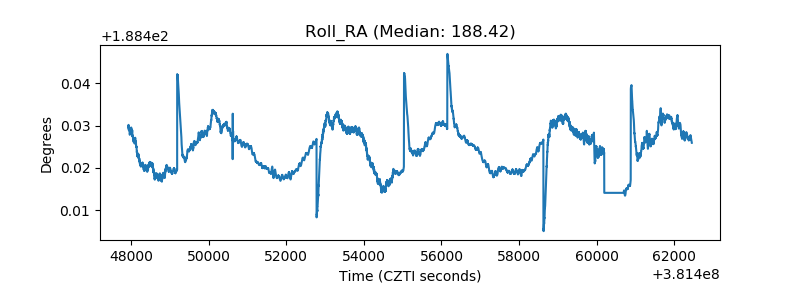

| _Roll_RA |  |

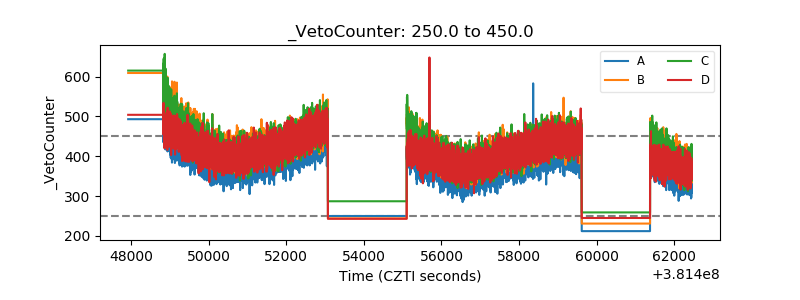

| Veto Counter |  |
