| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_084T04_9000004896_34318cztM0_level2.evt | modeM0/AS1A05_084T04_9000004896_34318cztM0_level2_quad_clean.evt |
| Size (bytes) | 302,673,600 | 44,395,200 |
| Size | 288.7 MB | 42.3 MB |
| Events in quadrant A | 1,208,213 | 319,730 |
| Events in quadrant B | 1,632,380 | 313,379 |
| Events in quadrant C | 1,268,669 | 313,691 |
| Events in quadrant D | 4,894,295 | 225,409 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 6 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 48 | 0 |
| B | 0 | 48 | 0 |
| C | 0 | 48 | 0 |
| D | 0 | 48 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5151 | 1 |
| B | 0 | 6502 | 1 |
| C | 0 | 5258 | 1 |
| D | 0 | 16186 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2379 | 24 | 1.008827% |
| B | 2379 | 75 | 3.152585% |
| C | 2379 | 23 | 0.966793% |
| D | 2379 | 1303 | 54.770912% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2379 | 2379 | 22 | 22 | 0.92% | 0.92% |  |
| B | 2379 | 2379 | 37 | 37 | 1.56% | 1.56% |  |
| C | 2379 | 2379 | 14 | 14 | 0.59% | 0.59% |  |
| D | 2379 | 2379 | 1231 | 1231 | 51.74% | 51.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 82939 | 1417.39 | 280 | 275 | 58.3 |
| A | 13 | 6 | 24366 | 413.07 | 280 | 275 | 58.3 |
| A | 10 | 83 | 15218 | 256.22 | 280 | 275 | 58.3 |
| B | 0 | 219 | 136866 | 2555.71 | 274 | 269 | 53.4 |
| B | 0 | 229 | 113516 | 2118.84 | 274 | 269 | 53.4 |
| B | 4 | 171 | 108871 | 2031.93 | 274 | 269 | 53.4 |
| C | 15 | 214 | 103151 | 1641.39 | 265 | 267 | 62.7 |
| C | 14 | 254 | 65639 | 1042.93 | 265 | 267 | 62.7 |
| C | 0 | 10 | 26478 | 418.16 | 265 | 267 | 62.7 |
| D | 12 | 227 | 1828588 | 32456.29 | 216 | 211 | 56.3 |
| D | 2 | 249 | 649812 | 11531.34 | 216 | 211 | 56.3 |
| D | 1 | 52 | 633669 | 11244.78 | 216 | 211 | 56.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

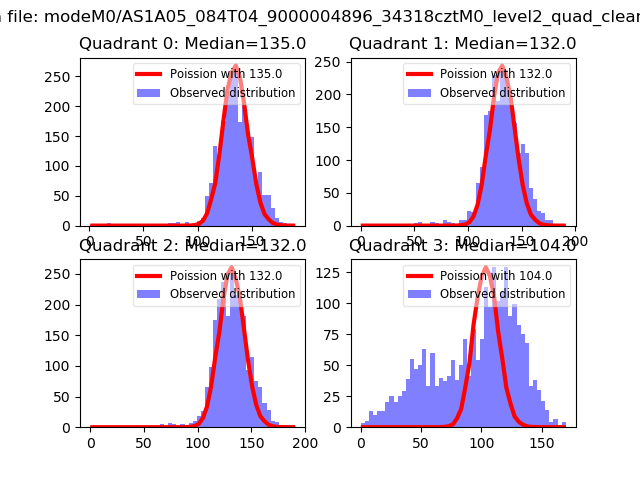

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

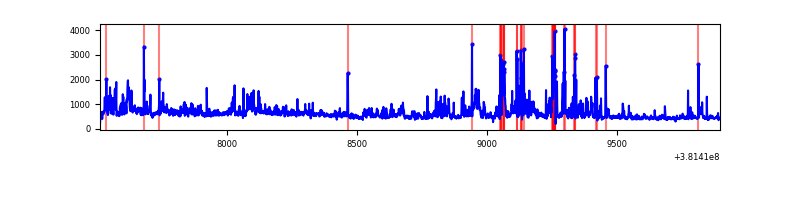

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

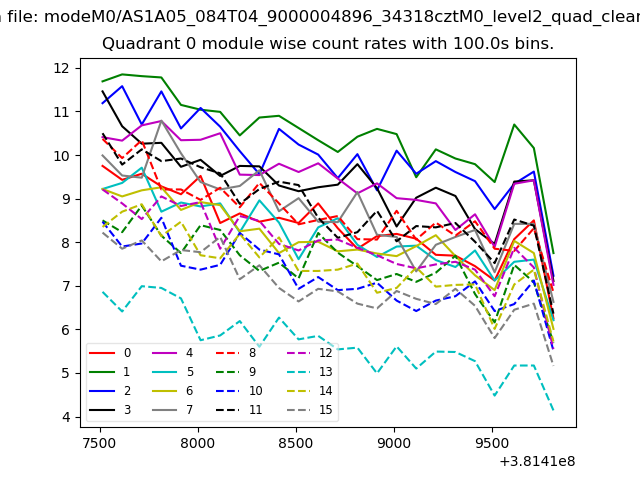

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

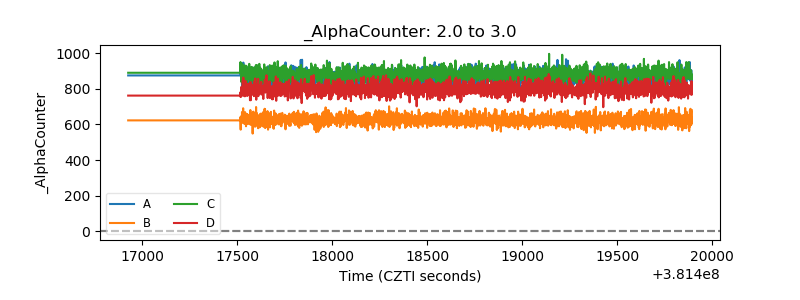

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

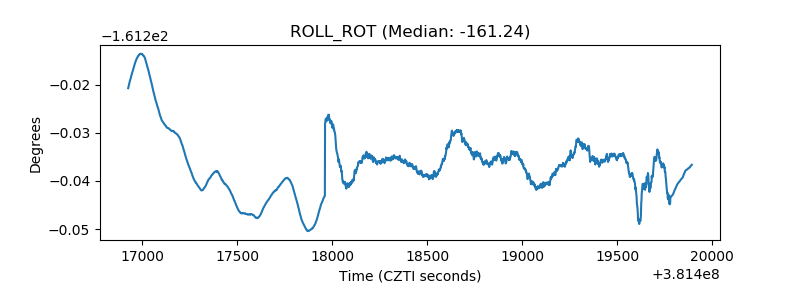

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
