| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T05_9000004902_34336cztM0_level2.evt | modeM0/AS1C07_001T05_9000004902_34336cztM0_level2_quad_clean.evt |
| Size (bytes) | 478,632,960 | 103,760,640 |
| Size | 456.5 MB | 99.0 MB |
| Events in quadrant A | 2,368,119 | 713,319 |
| Events in quadrant B | 3,000,655 | 717,348 |
| Events in quadrant C | 3,501,019 | 716,971 |
| Events in quadrant D | 5,296,402 | 653,641 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 98 | 0 |
| B | 0 | 98 | 0 |
| C | 0 | 98 | 0 |
| D | 0 | 98 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 26 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10105 | 3 |
| B | 0 | 12007 | 2 |
| C | 0 | 13458 | 2 |
| D | 0 | 19191 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4862 | 6 | 0.123406% |
| B | 4862 | 180 | 3.702180% |
| C | 4862 | 196 | 4.031263% |
| D | 4862 | 571 | 11.744138% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6983 | 4863 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6983 | 4863 | 115 | 115 | 1.65% | 2.36% |  |
| C | 6983 | 4863 | 176 | 176 | 2.52% | 3.62% |  |
| D | 6983 | 4863 | 507 | 507 | 7.26% | 10.43% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 30853 | 256.09 | 594 | 584 | 118.2 |
| A | 13 | 6 | 21243 | 174.78 | 594 | 584 | 118.2 |
| A | 9 | 143 | 21195 | 174.38 | 594 | 584 | 118.2 |
| B | 5 | 172 | 523515 | 4789.81 | 589 | 577 | 109.2 |
| B | 0 | 229 | 37500 | 338.19 | 589 | 577 | 109.2 |
| B | 4 | 171 | 35365 | 318.64 | 589 | 577 | 109.2 |
| C | 14 | 254 | 851346 | 6377.97 | 587 | 593 | 133.4 |
| C | 15 | 214 | 205280 | 1534.51 | 587 | 593 | 133.4 |
| C | 0 | 10 | 121136 | 903.69 | 587 | 593 | 133.4 |
| D | 12 | 235 | 1870959 | 12226.01 | 564 | 554 | 153.0 |
| D | 8 | 195 | 571735 | 3733.56 | 564 | 554 | 153.0 |
| D | 1 | 52 | 180738 | 1177.78 | 564 | 554 | 153.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

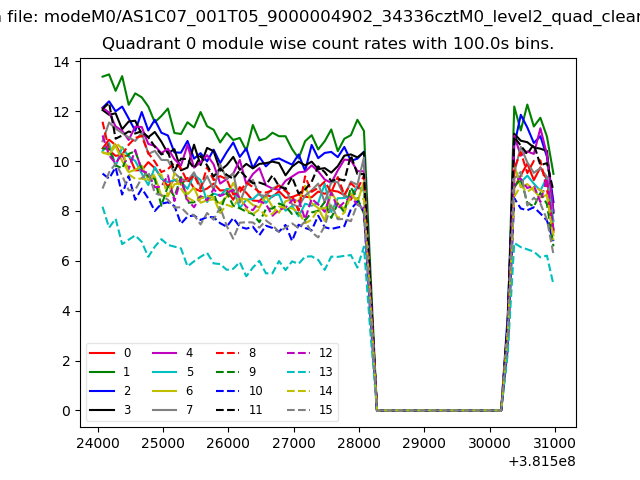

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

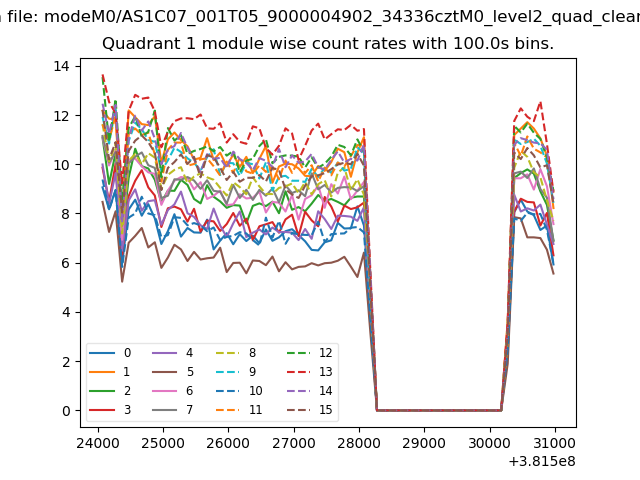

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

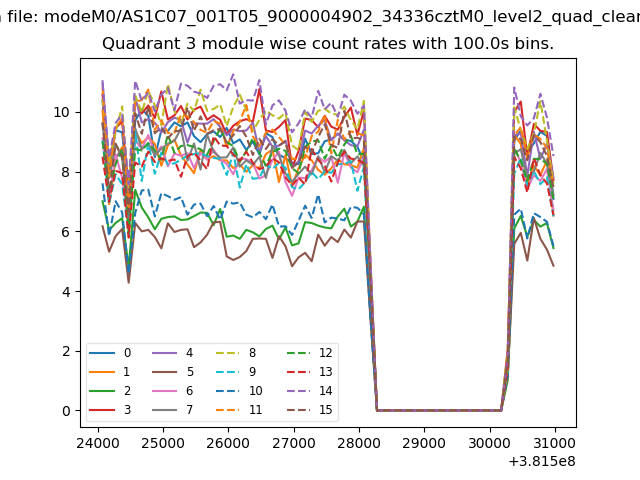

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

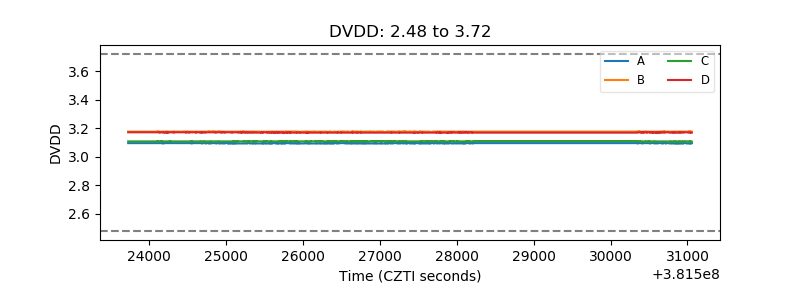

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

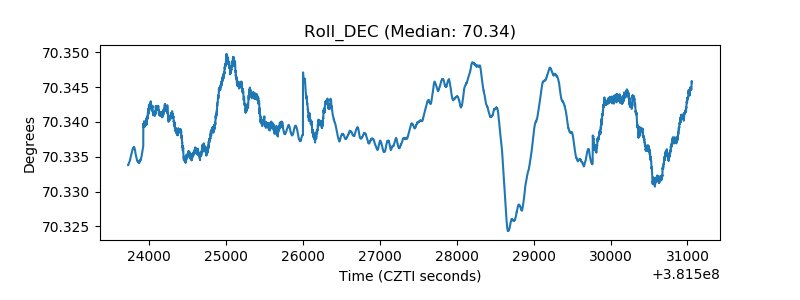

| _Roll_DEC |  |
| _Roll_RA |  |

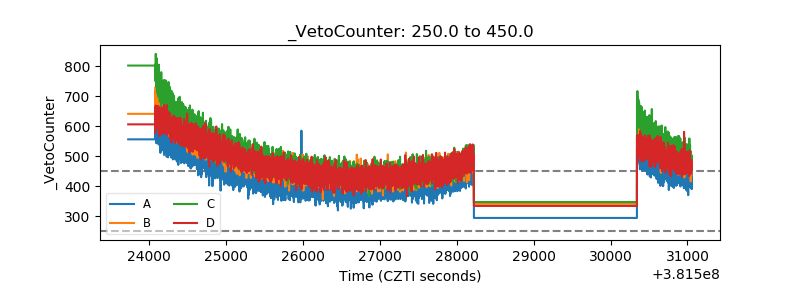

| Veto Counter |  |
