| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_019T01_9000004906_34355cztM0_level2.evt | modeM0/AS1A05_019T01_9000004906_34355cztM0_level2_quad_clean.evt |
| Size (bytes) | 773,573,760 | 60,364,800 |
| Size | 737.7 MB | 57.6 MB |
| Events in quadrant A | 2,823,443 | 400,583 |
| Events in quadrant B | 3,738,609 | 399,154 |
| Events in quadrant C | 3,596,220 | 394,288 |
| Events in quadrant D | 12,857,595 | 206,951 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12409 | 3 |
| B | 0 | 15115 | 2 |
| C | 0 | 14415 | 2 |
| D | 0 | 42176 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27 | 0 |
| B | 0 | 27 | 0 |
| C | 0 | 27 | 0 |
| D | 0 | 27 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6095 | 15 | 0.246103% |
| B | 6095 | 192 | 3.150123% |
| C | 6095 | 70 | 1.148482% |
| D | 6095 | 3923 | 64.364233% |

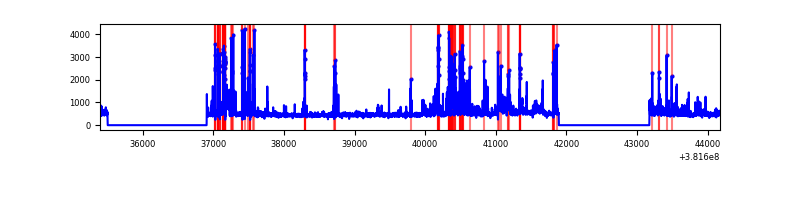

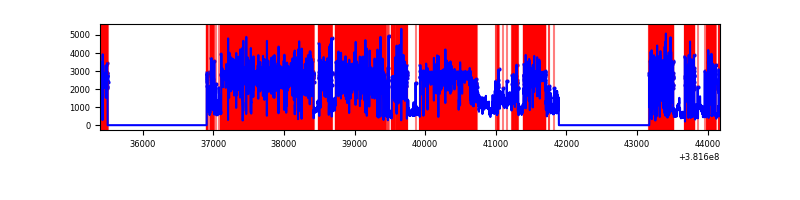

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8781 | 6097 | 8 | 8 | 0.09% | 0.13% |  |
| B | 8781 | 6097 | 137 | 137 | 1.56% | 2.25% |  |
| C | 8781 | 6097 | 47 | 47 | 0.54% | 0.77% |  |
| D | 8781 | 6096 | 3668 | 3668 | 41.77% | 60.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 52893 | 366.84 | 707 | 690 | 142.3 |
| A | 10 | 83 | 31936 | 219.57 | 707 | 690 | 142.3 |
| A | 13 | 254 | 10080 | 65.99 | 707 | 690 | 142.3 |
| B | 5 | 172 | 420297 | 3135.92 | 696 | 679 | 133.8 |
| B | 5 | 200 | 299265 | 2231.42 | 696 | 679 | 133.8 |
| B | 0 | 190 | 163112 | 1213.91 | 696 | 679 | 133.8 |
| C | 15 | 214 | 257459 | 1596.24 | 690 | 693 | 160.9 |
| C | 3 | 233 | 256620 | 1591.02 | 690 | 693 | 160.9 |
| C | 14 | 254 | 177708 | 1100.45 | 690 | 693 | 160.9 |
| D | 7 | 223 | 9235215 | 88614.74 | 414 | 401 | 104.2 |
| D | 8 | 195 | 1204848 | 11557.54 | 414 | 401 | 104.2 |
| D | 12 | 235 | 529671 | 5078.73 | 414 | 401 | 104.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

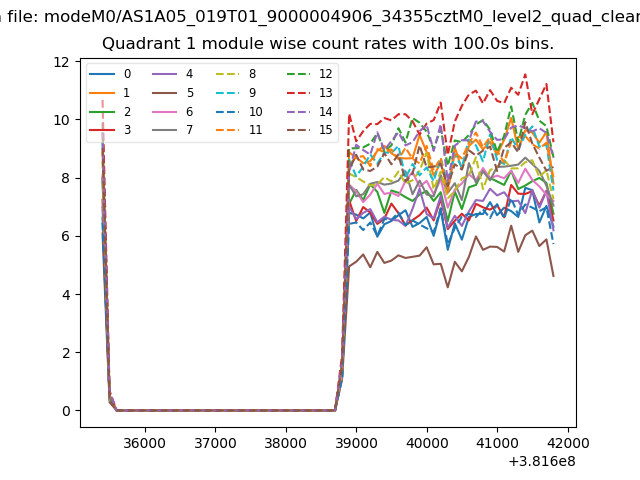

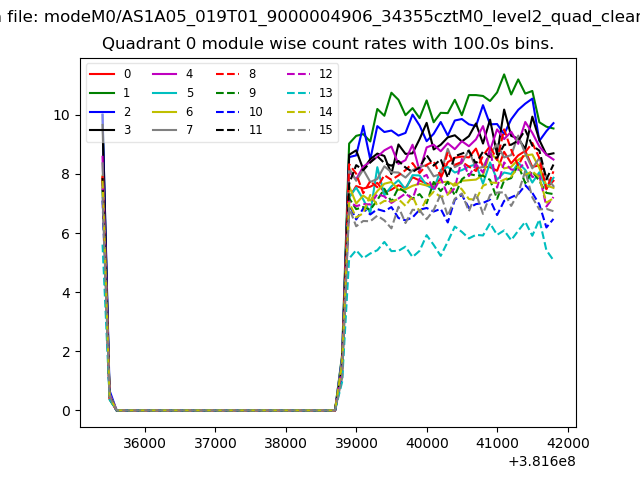

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

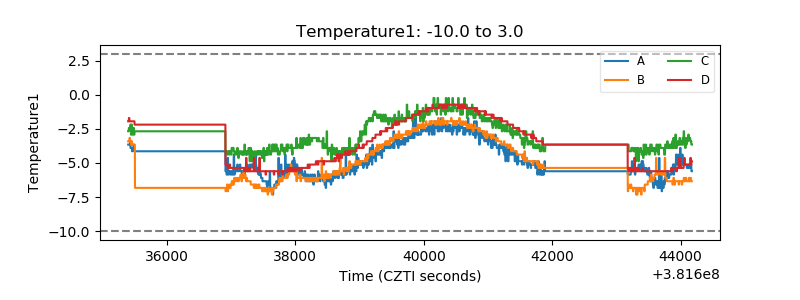

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

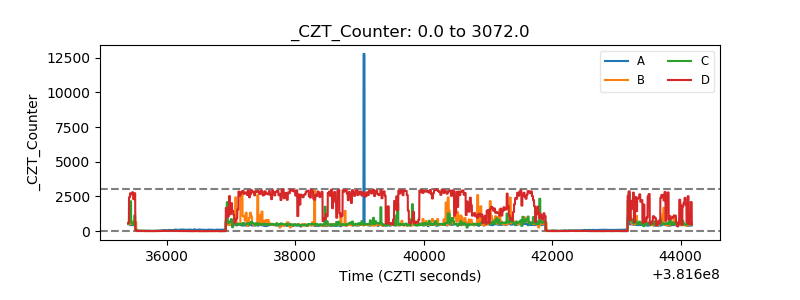

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

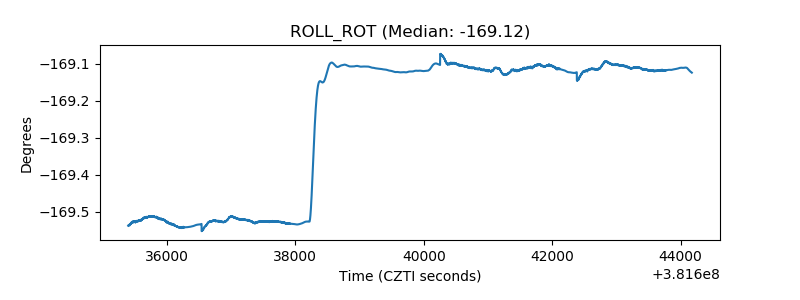

| _ROLL_ROT |  |
| _Roll_DEC |  |

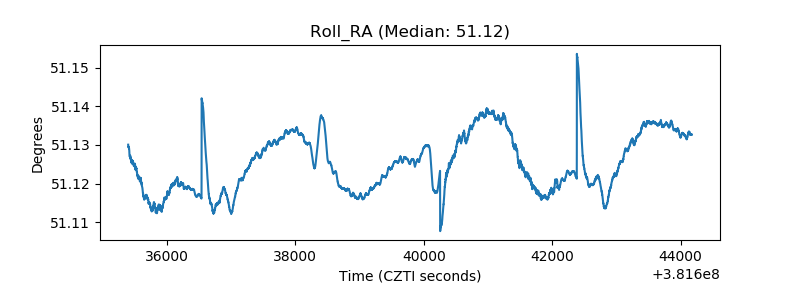

| _Roll_RA |  |
| Veto Counter |  |
