| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_019T01_9000004906_34364cztM0_level2.evt | modeM0/AS1A05_019T01_9000004906_34364cztM0_level2_quad_clean.evt |
| Size (bytes) | 708,557,760 | 69,531,840 |
| Size | 675.7 MB | 66.3 MB |
| Events in quadrant A | 2,573,042 | 499,128 |
| Events in quadrant B | 3,564,138 | 494,254 |
| Events in quadrant C | 7,068,103 | 368,902 |
| Events in quadrant D | 7,905,149 | 379,463 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10715 | 3 |
| B | 0 | 13886 | 2 |
| C | 0 | 24619 | 2 |
| D | 0 | 27145 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 26 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5176 | 7 | 0.135240% |
| B | 5176 | 197 | 3.806028% |
| C | 5176 | 1472 | 28.438949% |
| D | 5176 | 1281 | 24.748841% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7239 | 5177 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7239 | 5177 | 132 | 132 | 1.82% | 2.55% |  |
| C | 7239 | 5177 | 1321 | 1321 | 18.25% | 25.52% |  |
| D | 7239 | 5177 | 1386 | 1386 | 19.15% | 26.77% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 34352 | 259.06 | 653 | 641 | 130.1 |
| A | 9 | 143 | 9599 | 68.84 | 653 | 641 | 130.1 |
| A | 13 | 6 | 9188 | 65.68 | 653 | 641 | 130.1 |
| B | 5 | 172 | 445702 | 3686.2 | 643 | 629 | 120.7 |
| B | 4 | 171 | 273827 | 2262.69 | 643 | 629 | 120.7 |
| B | 4 | 251 | 116553 | 960.11 | 643 | 629 | 120.7 |
| C | 4 | 254 | 4509256 | 35979.42 | 549 | 554 | 125.3 |
| C | 15 | 214 | 191960 | 1527.42 | 549 | 554 | 125.3 |
| C | 0 | 10 | 95488 | 757.57 | 549 | 554 | 125.3 |
| D | 7 | 223 | 4307004 | 27513.48 | 574 | 563 | 156.5 |
| D | 8 | 195 | 736205 | 4699.95 | 574 | 563 | 156.5 |
| D | 12 | 235 | 170799 | 1087.62 | 574 | 563 | 156.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

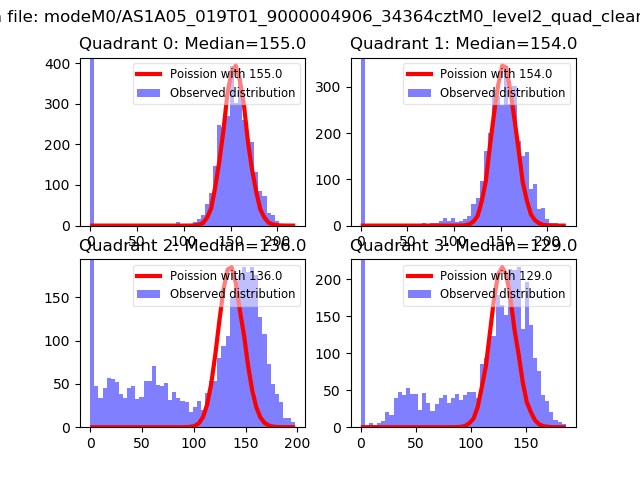

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

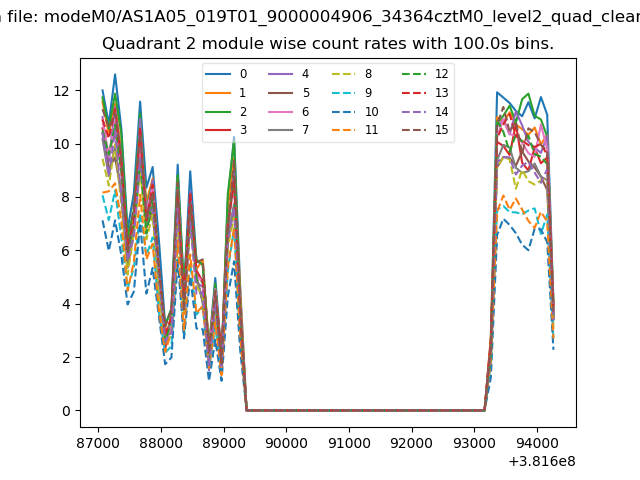

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

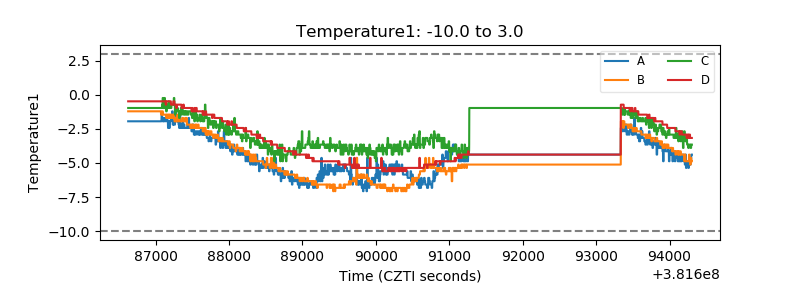

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

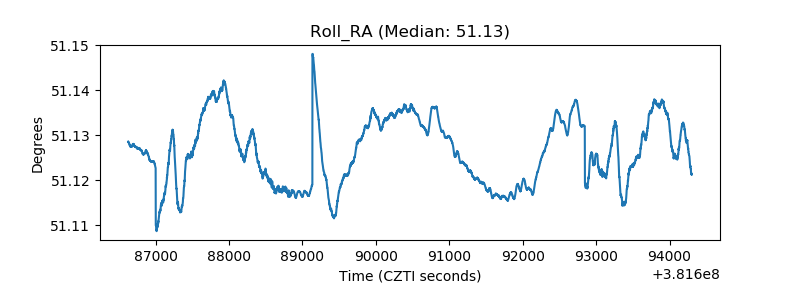

| _Roll_RA |  |
| Veto Counter |  |
