| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_019T01_9000004906_34366cztM0_level2.evt | modeM0/AS1A05_019T01_9000004906_34366cztM0_level2_quad_clean.evt |
| Size (bytes) | 707,290,560 | 56,543,040 |
| Size | 674.5 MB | 53.9 MB |
| Events in quadrant A | 2,340,897 | 391,264 |
| Events in quadrant B | 3,753,931 | 383,764 |
| Events in quadrant C | 3,084,526 | 382,890 |
| Events in quadrant D | 11,904,422 | 203,728 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10130 | 3 |
| B | 0 | 14299 | 2 |
| C | 0 | 12222 | 2 |
| D | 0 | 38736 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31 | 0 |
| B | 0 | 31 | 0 |
| C | 0 | 31 | 0 |
| D | 0 | 32 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4973 | 6 | 0.120652% |
| B | 4973 | 274 | 5.509753% |
| C | 4973 | 62 | 1.246732% |
| D | 4973 | 4339 | 87.251156% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7066 | 4974 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7066 | 4974 | 200 | 200 | 2.83% | 4.02% |  |
| C | 7066 | 4974 | 44 | 44 | 0.62% | 0.88% |  |
| D | 7066 | 4974 | 4267 | 4267 | 60.39% | 85.79% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 32045 | 265.27 | 590 | 579 | 118.6 |
| A | 9 | 143 | 13352 | 107.68 | 590 | 579 | 118.6 |
| A | 13 | 6 | 13231 | 106.66 | 590 | 579 | 118.6 |
| B | 5 | 172 | 568938 | 5126.59 | 582 | 568 | 110.9 |
| B | 4 | 171 | 389498 | 3508.07 | 582 | 568 | 110.9 |
| B | 5 | 31 | 362393 | 3263.59 | 582 | 568 | 110.9 |
| C | 4 | 254 | 361751 | 2705.62 | 579 | 585 | 133.5 |
| C | 15 | 214 | 208639 | 1558.6 | 579 | 585 | 133.5 |
| C | 0 | 10 | 171992 | 1284.07 | 579 | 585 | 133.5 |
| D | 7 | 223 | 9525658 | 92904.77 | 372 | 363 | 102.5 |
| D | 8 | 195 | 619244 | 6036.24 | 372 | 363 | 102.5 |
| D | 13 | 249 | 127754 | 1242.5 | 372 | 363 | 102.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

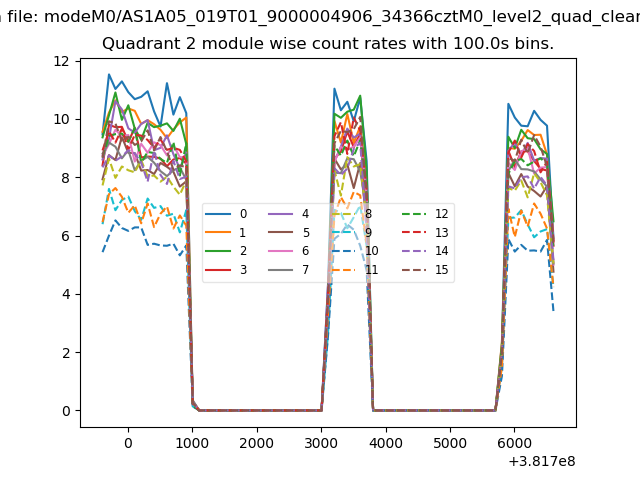

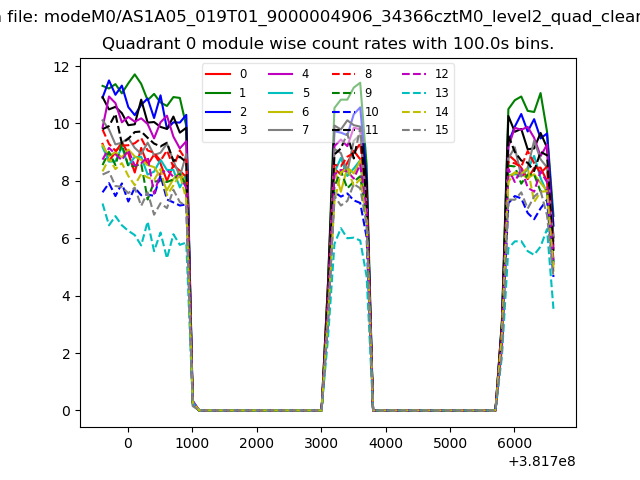

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

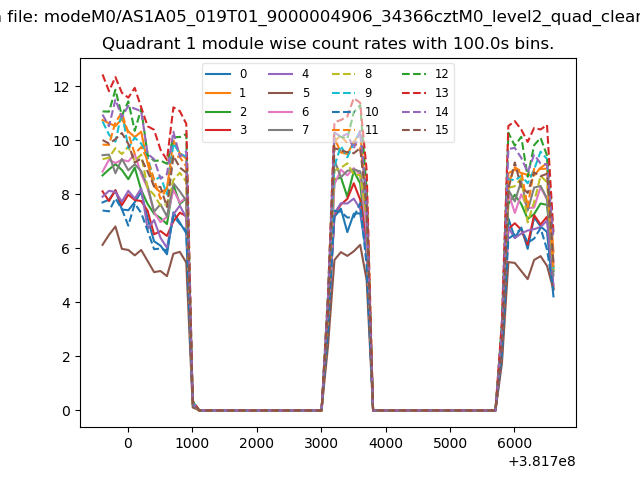

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

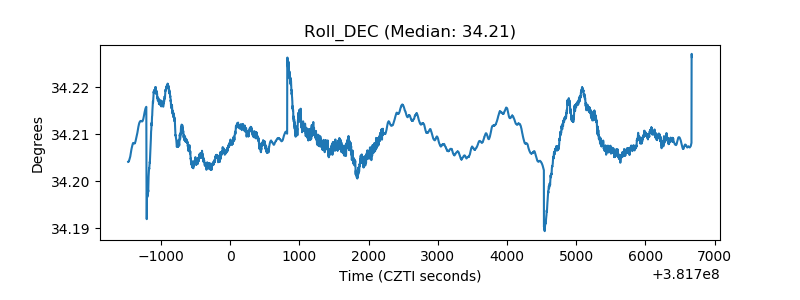

| _Roll_DEC |  |

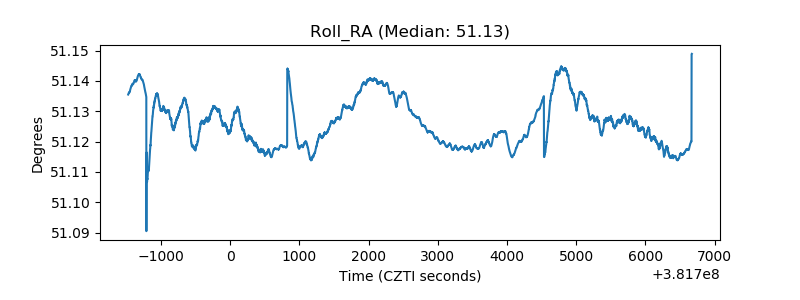

| _Roll_RA |  |
| Veto Counter |  |
