| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_019T01_9000004906_34367cztM0_level2.evt | modeM0/AS1A05_019T01_9000004906_34367cztM0_level2_quad_clean.evt |
| Size (bytes) | 681,045,120 | 54,800,640 |
| Size | 649.5 MB | 52.3 MB |
| Events in quadrant A | 2,340,169 | 365,565 |
| Events in quadrant B | 4,412,141 | 348,733 |
| Events in quadrant C | 3,328,494 | 355,389 |
| Events in quadrant D | 10,200,638 | 231,297 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10335 | 3 |
| B | 0 | 16497 | 2 |
| C | 0 | 13175 | 2 |
| D | 0 | 33777 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 27 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5094 | 6 | 0.117786% |
| B | 5094 | 476 | 9.344327% |
| C | 5094 | 56 | 1.099333% |
| D | 5094 | 3006 | 59.010601% |

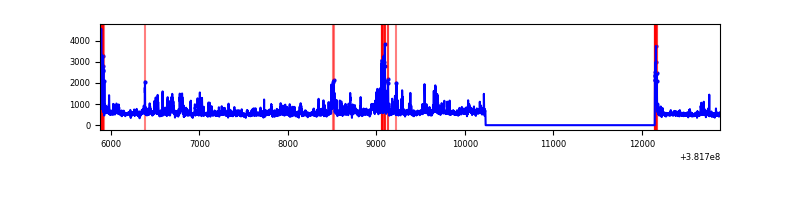

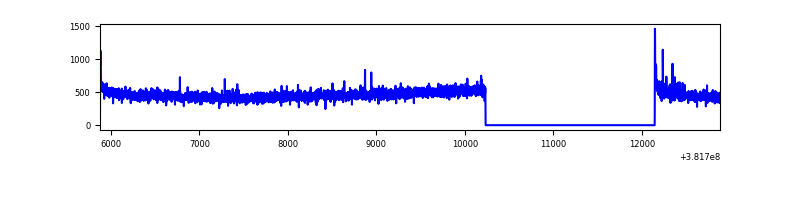

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7007 | 5095 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7007 | 5095 | 281 | 281 | 4.01% | 5.52% |  |
| C | 7007 | 5095 | 43 | 43 | 0.61% | 0.84% |  |
| D | 7007 | 5094 | 3145 | 3145 | 44.88% | 61.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 31625 | 260.37 | 591 | 579 | 119.2 |
| A | 13 | 6 | 10252 | 81.12 | 591 | 579 | 119.2 |
| A | 13 | 254 | 9043 | 70.98 | 591 | 579 | 119.2 |
| B | 4 | 171 | 971104 | 8805.01 | 572 | 559 | 110.2 |
| B | 5 | 172 | 866806 | 7858.8 | 572 | 559 | 110.2 |
| B | 5 | 31 | 186695 | 1688.67 | 572 | 559 | 110.2 |
| C | 4 | 254 | 707713 | 5246.95 | 577 | 582 | 134.8 |
| C | 15 | 214 | 213886 | 1582.73 | 577 | 582 | 134.8 |
| C | 0 | 10 | 97686 | 720.52 | 577 | 582 | 134.8 |
| D | 7 | 223 | 7249521 | 59834.04 | 448 | 440 | 121.2 |
| D | 8 | 195 | 620960 | 5121.78 | 448 | 440 | 121.2 |
| D | 13 | 249 | 224073 | 1845.87 | 448 | 440 | 121.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

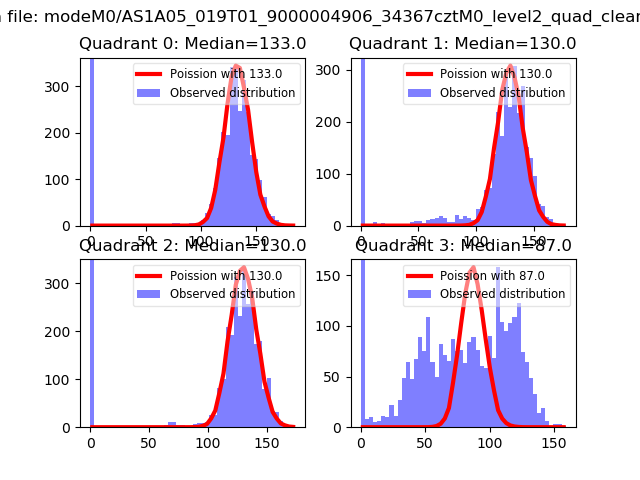

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

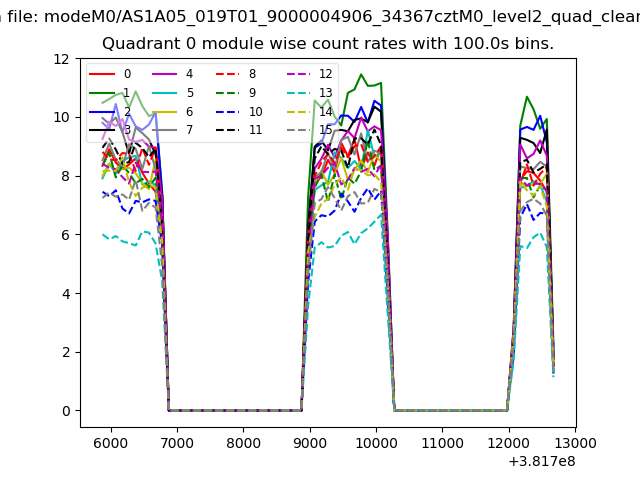

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

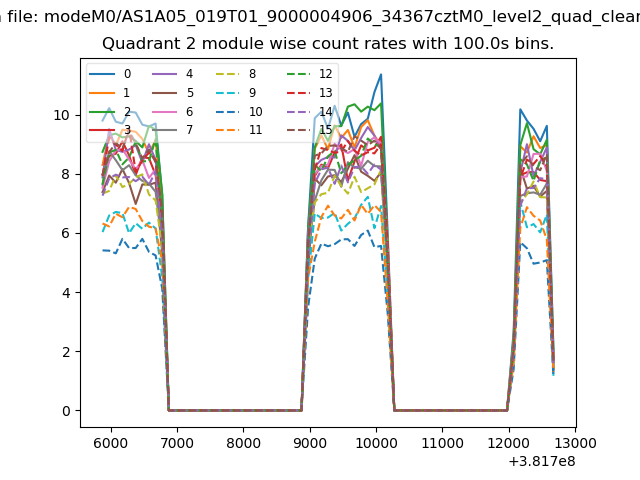

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

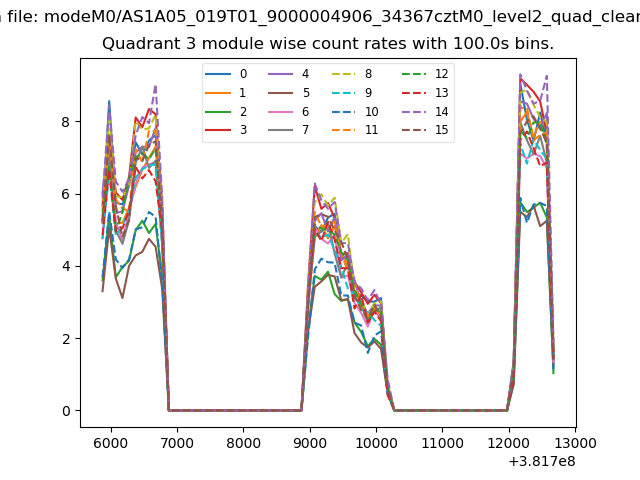

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

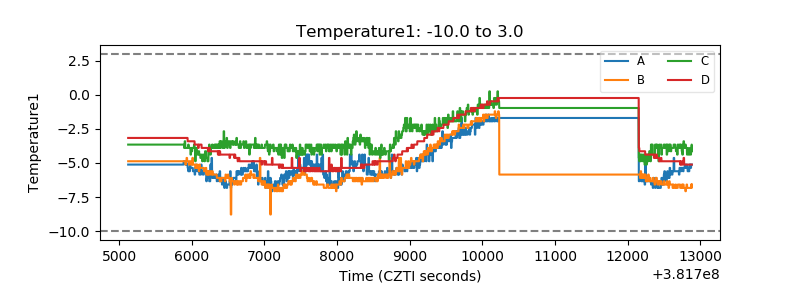

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

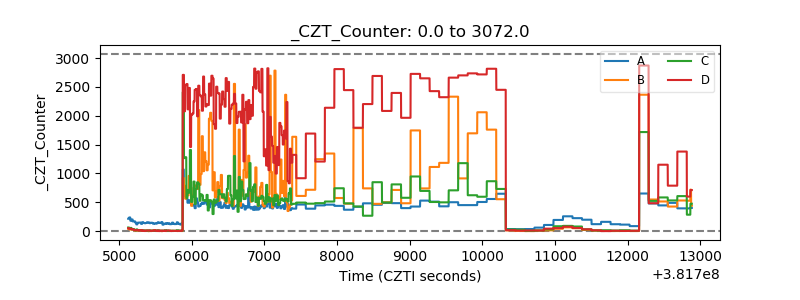

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
