| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_019T01_9000004906_34369cztM0_level2.evt | modeM0/AS1A05_019T01_9000004906_34369cztM0_level2_quad_clean.evt |
| Size (bytes) | 784,601,280 | 68,653,440 |
| Size | 748.3 MB | 65.5 MB |
| Events in quadrant A | 3,041,761 | 443,072 |
| Events in quadrant B | 4,561,841 | 435,838 |
| Events in quadrant C | 5,908,891 | 409,531 |
| Events in quadrant D | 9,809,220 | 334,795 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13257 | 3 |
| B | 0 | 17876 | 2 |
| C | 0 | 21945 | 2 |
| D | 0 | 33752 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28 | 0 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 28 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6512 | 13 | 0.199631% |
| B | 6512 | 314 | 4.821867% |
| C | 6512 | 642 | 9.858722% |
| D | 6512 | 2398 | 36.824324% |

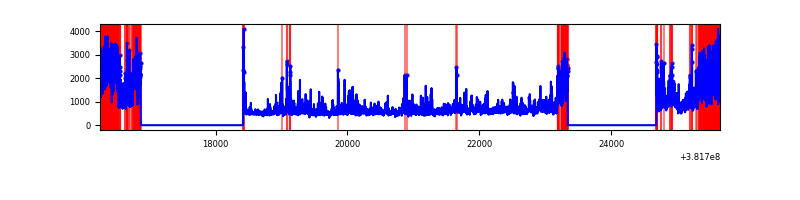

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9408 | 6514 | 5 | 5 | 0.05% | 0.08% |  |
| B | 9408 | 6514 | 193 | 193 | 2.05% | 2.96% |  |
| C | 9408 | 6514 | 544 | 544 | 5.78% | 8.35% |  |
| D | 9408 | 6513 | 2188 | 2188 | 23.26% | 33.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 43004 | 272.03 | 764 | 745 | 155.3 |
| A | 10 | 83 | 34286 | 215.91 | 764 | 745 | 155.3 |
| A | 13 | 254 | 11111 | 66.73 | 764 | 745 | 155.3 |
| B | 5 | 172 | 760841 | 5281.07 | 747 | 727 | 143.9 |
| B | 0 | 229 | 249281 | 1726.89 | 747 | 727 | 143.9 |
| B | 4 | 171 | 213748 | 1480.01 | 747 | 727 | 143.9 |
| C | 4 | 254 | 2674604 | 15914.7 | 718 | 722 | 168.0 |
| C | 15 | 214 | 267335 | 1586.85 | 718 | 722 | 168.0 |
| C | 14 | 67 | 61093 | 359.32 | 718 | 722 | 168.0 |
| D | 7 | 223 | 2730451 | 16122.02 | 620 | 608 | 169.3 |
| D | 12 | 235 | 2120646 | 12520.61 | 620 | 608 | 169.3 |
| D | 8 | 195 | 956114 | 5643.07 | 620 | 608 | 169.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

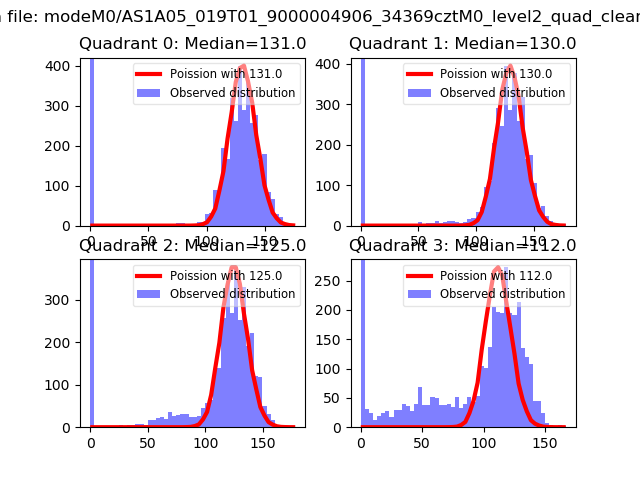

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

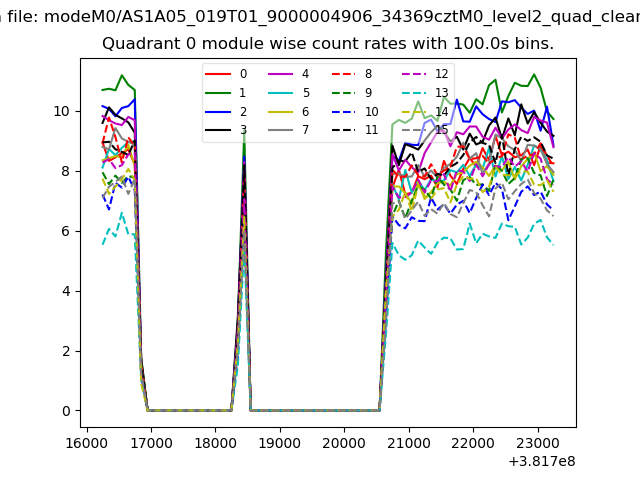

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

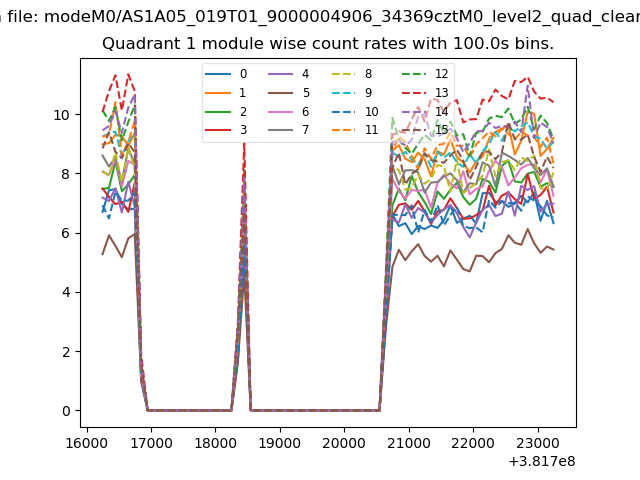

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

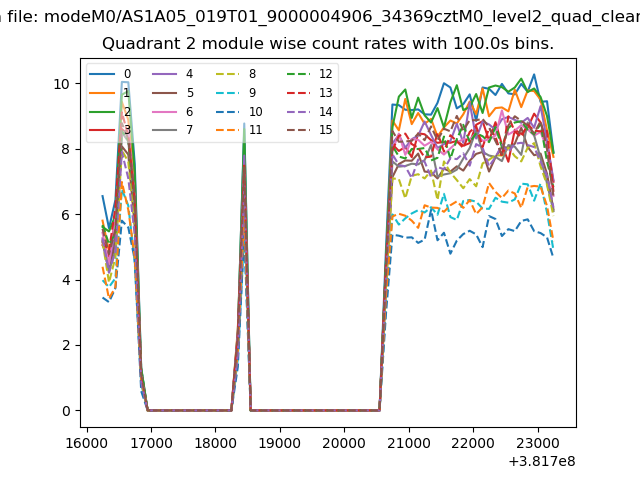

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

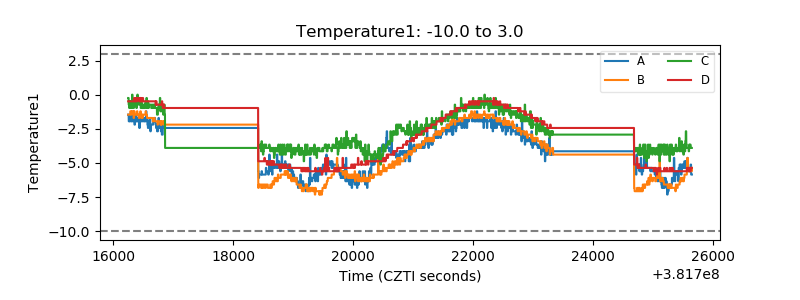

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

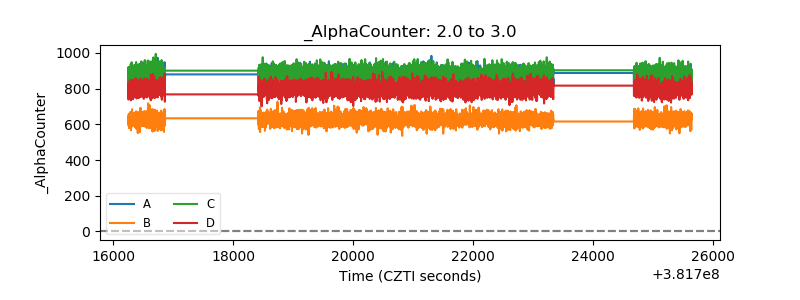

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

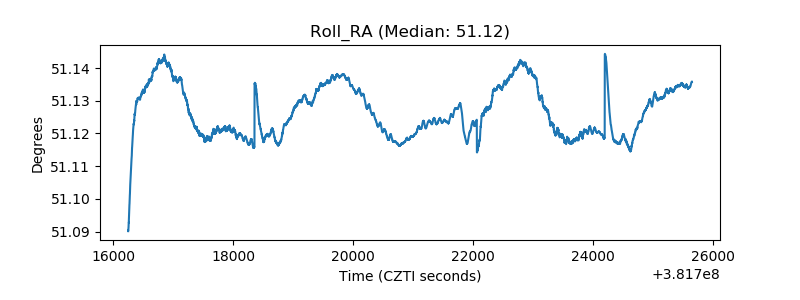

| _Roll_RA |  |
| Veto Counter |  |
