| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_085T01_9000004910_34377cztM0_level2.evt | modeM0/AS1A05_085T01_9000004910_34377cztM0_level2_quad_clean.evt |
| Size (bytes) | 694,719,360 | 96,016,320 |
| Size | 662.5 MB | 91.6 MB |
| Events in quadrant A | 2,742,282 | 696,474 |
| Events in quadrant B | 4,517,662 | 671,087 |
| Events in quadrant C | 4,390,397 | 667,205 |
| Events in quadrant D | 9,023,695 | 492,474 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 0 |
| B | 0 | 112 | 0 |
| C | 0 | 112 | 0 |
| D | 0 | 112 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11591 | 3 |
| B | 0 | 17111 | 2 |
| C | 0 | 16921 | 2 |
| D | 0 | 30610 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5417 | 7 | 0.129223% |
| B | 5417 | 496 | 9.156360% |
| C | 5417 | 110 | 2.030644% |
| D | 5418 | 1911 | 35.271318% |

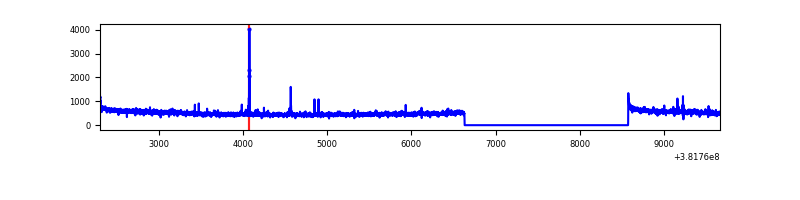

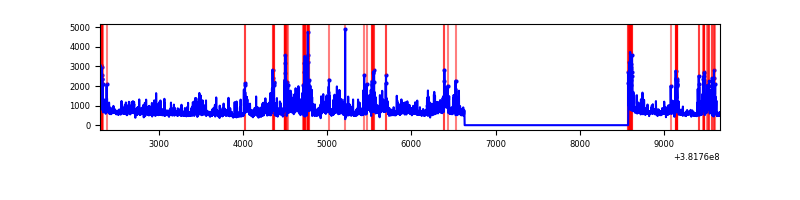

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7360 | 5418 | 3 | 3 | 0.04% | 0.06% |  |
| B | 7360 | 5418 | 359 | 359 | 4.88% | 6.63% |  |
| C | 7360 | 5418 | 114 | 114 | 1.55% | 2.10% |  |
| D | 7361 | 5419 | 1937 | 1937 | 26.31% | 35.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 34028 | 242.68 | 688 | 676 | 137.4 |
| A | 9 | 143 | 33184 | 236.54 | 688 | 676 | 137.4 |
| A | 13 | 6 | 17902 | 125.34 | 688 | 676 | 137.4 |
| B | 5 | 172 | 1408598 | 11316.45 | 659 | 644 | 124.4 |
| B | 4 | 251 | 192382 | 1541.1 | 659 | 644 | 124.4 |
| B | 0 | 190 | 77604 | 618.57 | 659 | 644 | 124.4 |
| C | 4 | 254 | 1083171 | 7284.04 | 646 | 651 | 148.6 |
| C | 14 | 254 | 351214 | 2358.86 | 646 | 651 | 148.6 |
| C | 15 | 214 | 225672 | 1514.11 | 646 | 651 | 148.6 |
| D | 12 | 235 | 2704180 | 20080.16 | 549 | 533 | 134.6 |
| D | 7 | 223 | 2286918 | 16981.13 | 549 | 533 | 134.6 |
| D | 8 | 195 | 789528 | 5859.92 | 549 | 533 | 134.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

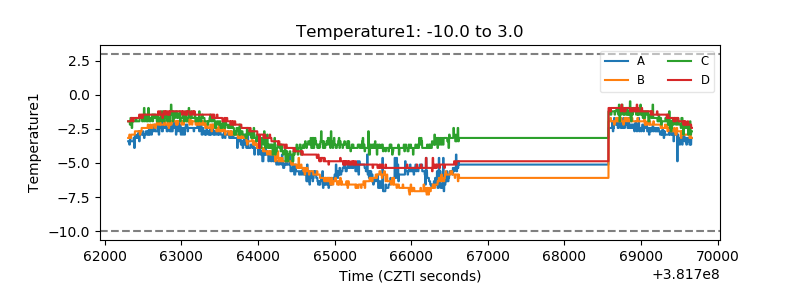

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

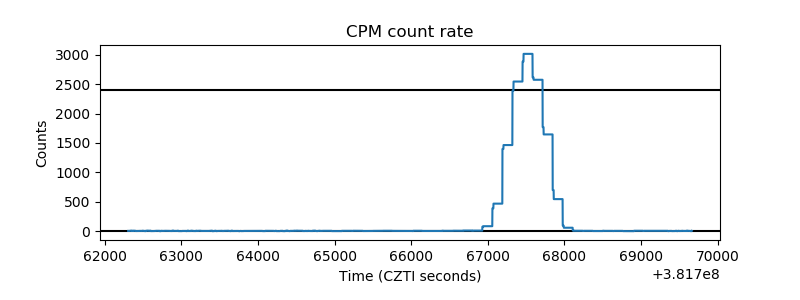

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

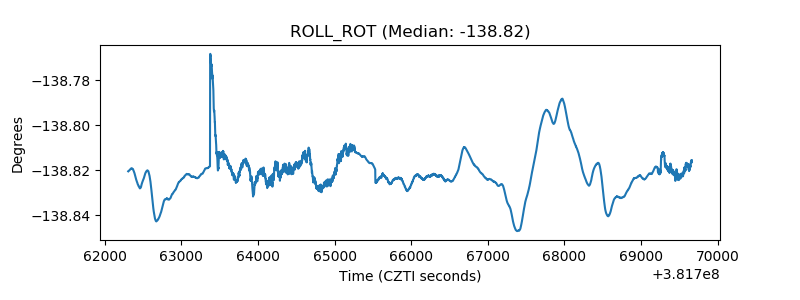

| _ROLL_ROT |  |
| _Roll_DEC |  |

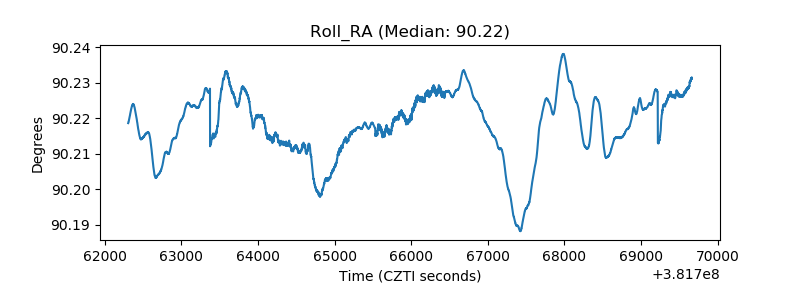

| _Roll_RA |  |

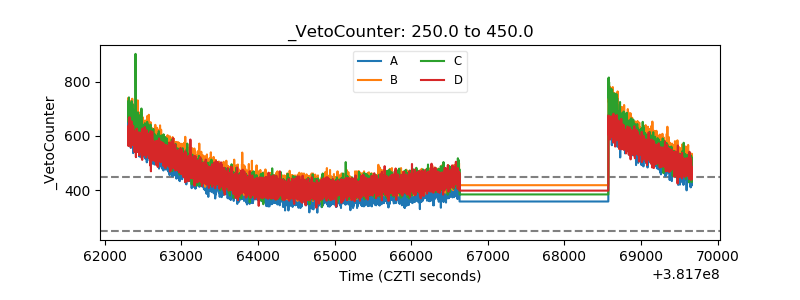

| Veto Counter |  |
