| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_085T01_9000004910_34393cztM0_level2.evt | modeM0/AS1A05_085T01_9000004910_34393cztM0_level2_quad_clean.evt |
| Size (bytes) | 671,774,400 | 80,948,160 |
| Size | 640.7 MB | 77.2 MB |
| Events in quadrant A | 2,852,817 | 582,880 |
| Events in quadrant B | 3,989,508 | 573,273 |
| Events in quadrant C | 2,788,255 | 588,009 |
| Events in quadrant D | 10,369,419 | 348,439 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11627 | 2 |
| B | 0 | 15097 | 1 |
| C | 0 | 11230 | 1 |
| D | 0 | 34230 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5101 | 182 | 3.567928% |
| B | 5101 | 505 | 9.900020% |
| C | 5101 | 30 | 0.588120% |
| D | 5101 | 2662 | 52.185846% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7193 | 5102 | 78 | 78 | 1.08% | 1.53% |  |
| B | 7193 | 5102 | 393 | 393 | 5.46% | 7.70% |  |
| C | 7193 | 5102 | 24 | 24 | 0.33% | 0.47% |  |
| D | 7193 | 5102 | 2601 | 2601 | 36.16% | 50.98% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 340670 | 2734.85 | 628 | 620 | 124.3 |
| A | 7 | 16 | 57261 | 455.53 | 628 | 620 | 124.3 |
| A | 10 | 83 | 22424 | 175.36 | 628 | 620 | 124.3 |
| B | 5 | 172 | 1188229 | 10424.87 | 608 | 595 | 113.9 |
| B | 5 | 200 | 177595 | 1553.68 | 608 | 595 | 113.9 |
| B | 5 | 255 | 81957 | 714.18 | 608 | 595 | 113.9 |
| C | 15 | 214 | 213429 | 1518.19 | 612 | 620 | 140.2 |
| C | 0 | 10 | 87873 | 622.47 | 612 | 620 | 140.2 |
| C | 15 | 159 | 59518 | 420.18 | 612 | 620 | 140.2 |
| D | 7 | 223 | 6642684 | 58498.44 | 452 | 437 | 113.5 |
| D | 8 | 195 | 469720 | 4132.99 | 452 | 437 | 113.5 |
| D | 1 | 47 | 406967 | 3580.32 | 452 | 437 | 113.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

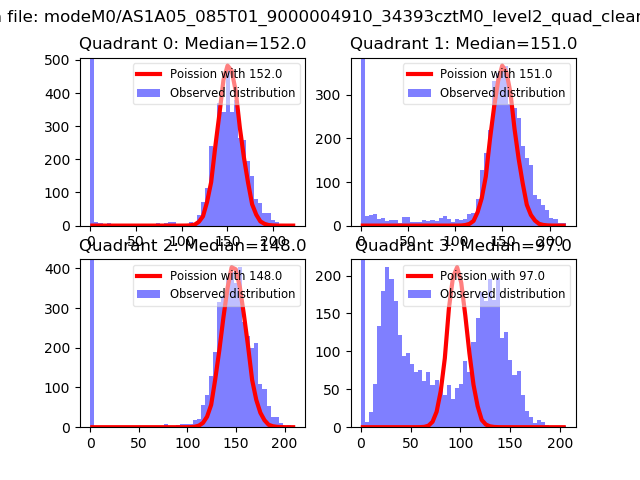

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

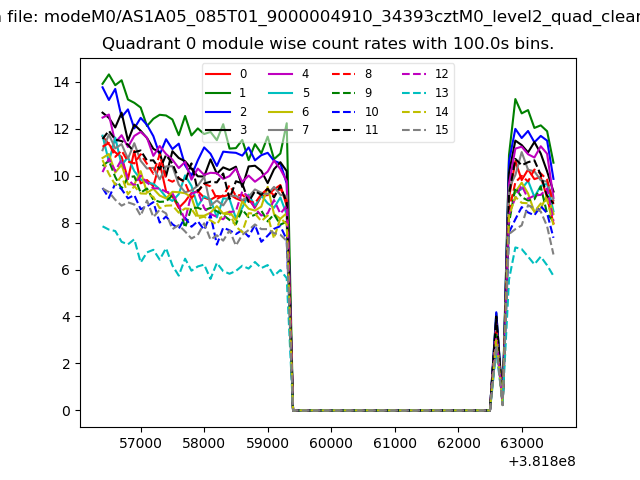

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

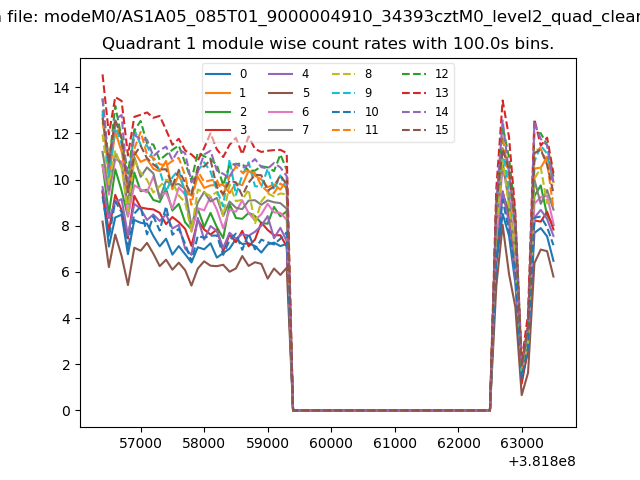

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

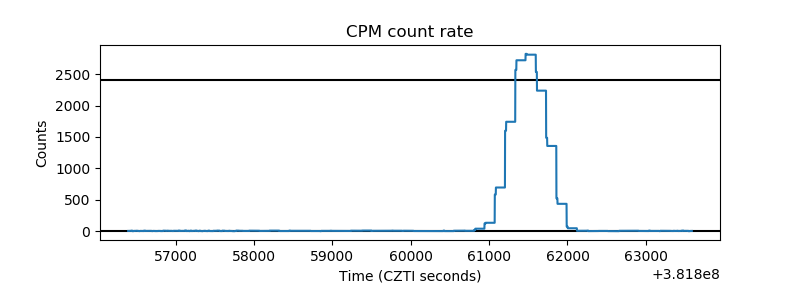

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

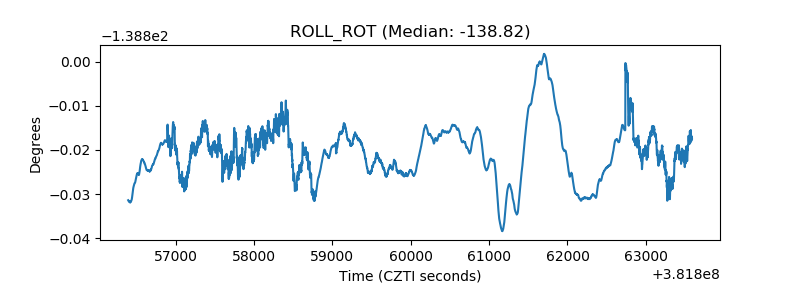

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

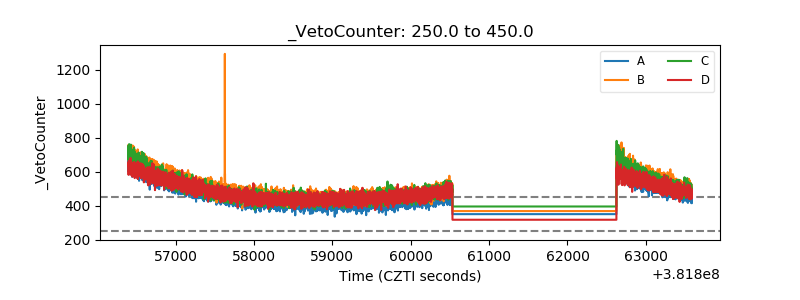

| Veto Counter |  |
