| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_085T01_9000004910_34405cztM0_level2.evt | modeM0/AS1A05_085T01_9000004910_34405cztM0_level2_quad_clean.evt |
| Size (bytes) | 529,629,120 | 96,503,040 |
| Size | 505.1 MB | 92.0 MB |
| Events in quadrant A | 2,662,527 | 662,487 |
| Events in quadrant B | 4,228,904 | 638,773 |
| Events in quadrant C | 2,948,119 | 658,844 |
| Events in quadrant D | 5,834,473 | 584,107 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 110 | 0 |
| B | 0 | 110 | 0 |
| C | 0 | 110 | 0 |
| D | 0 | 110 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27 | 0 |
| B | 0 | 27 | 0 |
| C | 0 | 27 | 0 |
| D | 0 | 28 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11407 | 3 |
| B | 0 | 16105 | 2 |
| C | 0 | 12065 | 2 |
| D | 0 | 21253 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5398 | 14 | 0.259355% |
| B | 5398 | 505 | 9.355317% |
| C | 5398 | 30 | 0.555761% |
| D | 5398 | 660 | 12.226751% |

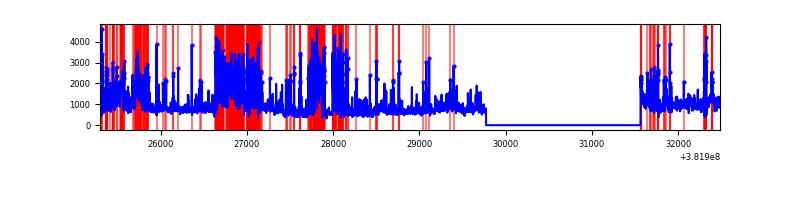

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7190 | 5399 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7190 | 5399 | 345 | 345 | 4.80% | 6.39% |  |
| C | 7190 | 5399 | 15 | 15 | 0.21% | 0.28% |  |
| D | 7190 | 5399 | 524 | 524 | 7.29% | 9.71% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 35007 | 254.2 | 673 | 663 | 135.1 |
| A | 13 | 6 | 15109 | 106.92 | 673 | 663 | 135.1 |
| A | 9 | 143 | 10097 | 69.83 | 673 | 663 | 135.1 |
| B | 5 | 172 | 1463835 | 11900.63 | 644 | 630 | 123.0 |
| B | 0 | 190 | 102236 | 826.39 | 644 | 630 | 123.0 |
| B | 5 | 255 | 44337 | 355.48 | 644 | 630 | 123.0 |
| C | 15 | 214 | 228013 | 1541.05 | 643 | 649 | 147.5 |
| C | 0 | 10 | 80227 | 539.37 | 643 | 649 | 147.5 |
| C | 14 | 67 | 64235 | 430.98 | 643 | 649 | 147.5 |
| D | 7 | 80 | 1222031 | 8074.25 | 619 | 602 | 151.3 |
| D | 8 | 195 | 777720 | 5137.13 | 619 | 602 | 151.3 |
| D | 14 | 52 | 394357 | 2602.91 | 619 | 602 | 151.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

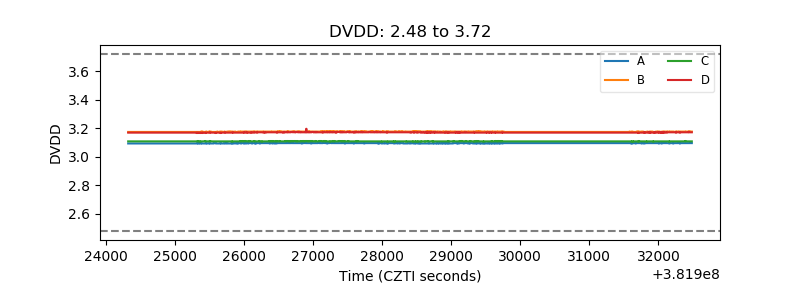

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

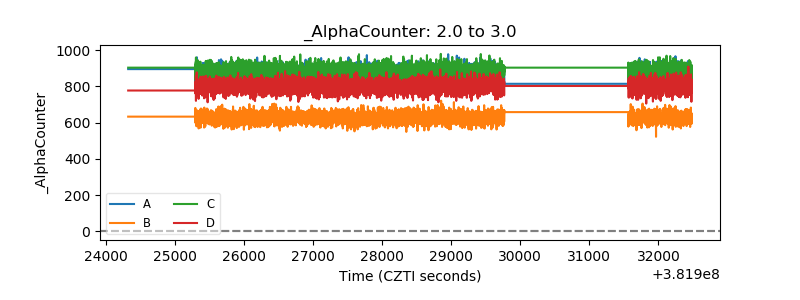

| Alpha Counter |  |
| _CPM_Rate |  |

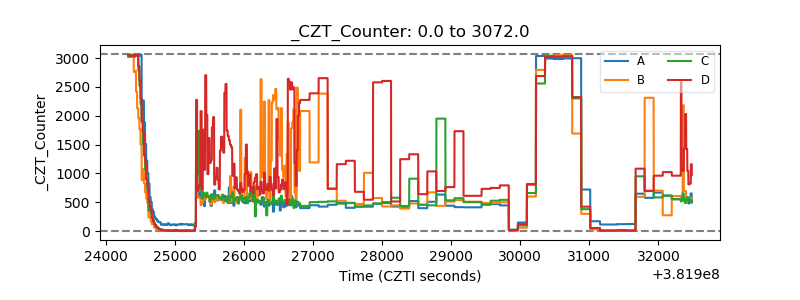

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

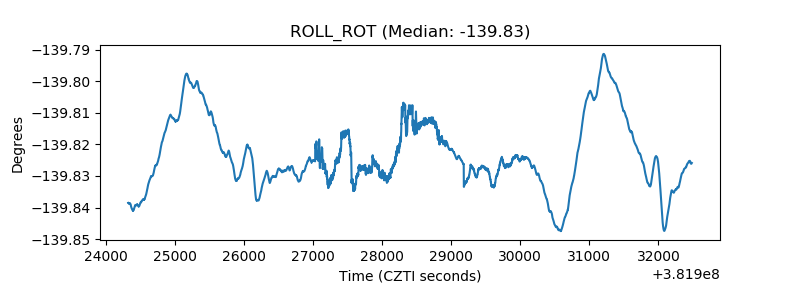

| _ROLL_ROT |  |

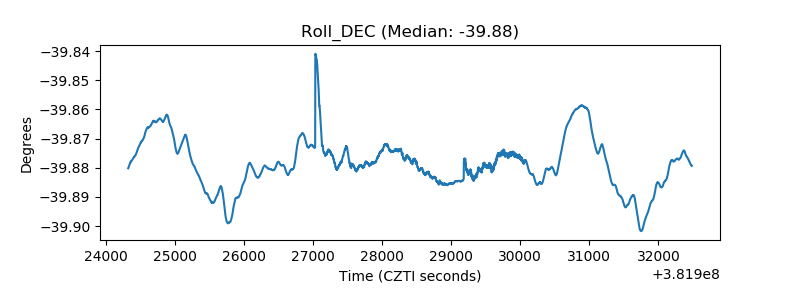

| _Roll_DEC |  |

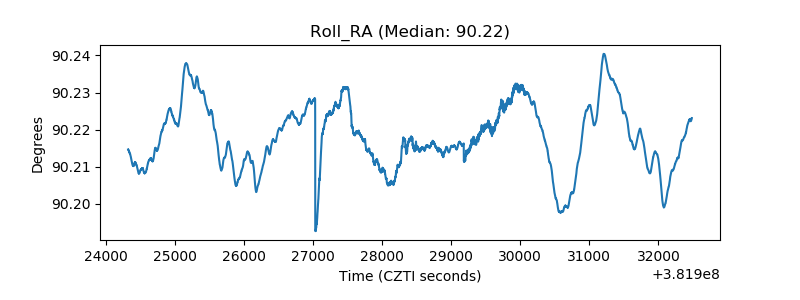

| _Roll_RA |  |

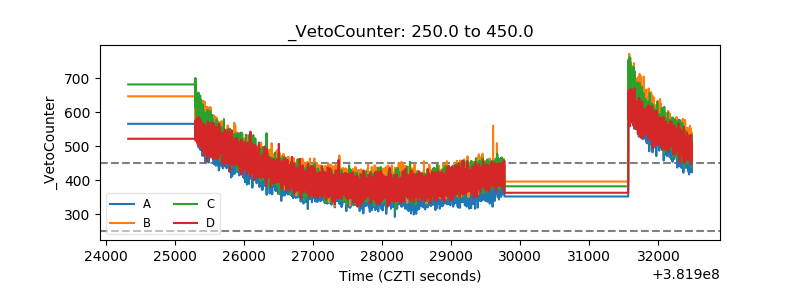

| Veto Counter |  |
