| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_103T01_9000004912_34407cztM0_level2.evt | modeM0/AS1A05_103T01_9000004912_34407cztM0_level2_quad_clean.evt |
| Size (bytes) | 526,026,240 | 70,012,800 |
| Size | 501.7 MB | 66.8 MB |
| Events in quadrant A | 2,627,989 | 451,862 |
| Events in quadrant B | 3,475,625 | 458,095 |
| Events in quadrant C | 2,990,335 | 454,612 |
| Events in quadrant D | 6,500,652 | 406,970 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 33 | 0 |
| B | 0 | 33 | 0 |
| C | 0 | 33 | 0 |
| D | 0 | 34 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10941 | 3 |
| B | 0 | 13496 | 2 |
| C | 0 | 12039 | 2 |
| D | 0 | 22810 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4962 | 12 | 0.241838% |
| B | 4962 | 288 | 5.804111% |
| C | 4962 | 75 | 1.511487% |
| D | 4962 | 1138 | 22.934301% |

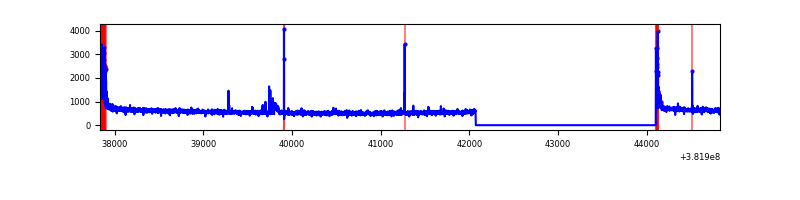

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6994 | 4963 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6994 | 4963 | 162 | 162 | 2.32% | 3.26% |  |
| C | 6994 | 4963 | 50 | 50 | 0.71% | 1.01% |  |
| D | 6994 | 4963 | 980 | 980 | 14.01% | 19.75% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 35515 | 263.6 | 666 | 656 | 132.2 |
| A | 13 | 6 | 13721 | 98.8 | 666 | 656 | 132.2 |
| A | 13 | 254 | 9019 | 63.24 | 666 | 656 | 132.2 |
| B | 5 | 172 | 741447 | 6055.58 | 652 | 638 | 122.3 |
| B | 0 | 229 | 75004 | 607.89 | 652 | 638 | 122.3 |
| B | 0 | 190 | 73732 | 597.49 | 652 | 638 | 122.3 |
| C | 15 | 214 | 204948 | 1360.81 | 656 | 665 | 150.1 |
| C | 0 | 10 | 163951 | 1087.71 | 656 | 665 | 150.1 |
| C | 15 | 159 | 23911 | 154.85 | 656 | 665 | 150.1 |
| D | 2 | 249 | 1555789 | 9813.19 | 587 | 579 | 158.5 |
| D | 8 | 195 | 788231 | 4969.99 | 587 | 579 | 158.5 |
| D | 7 | 223 | 614605 | 3874.43 | 587 | 579 | 158.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

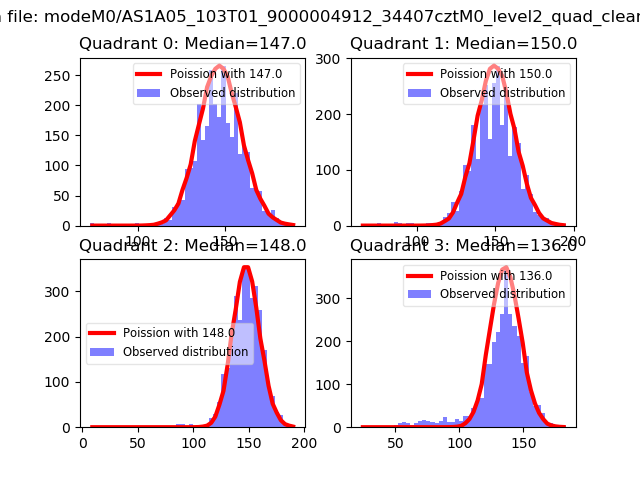

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

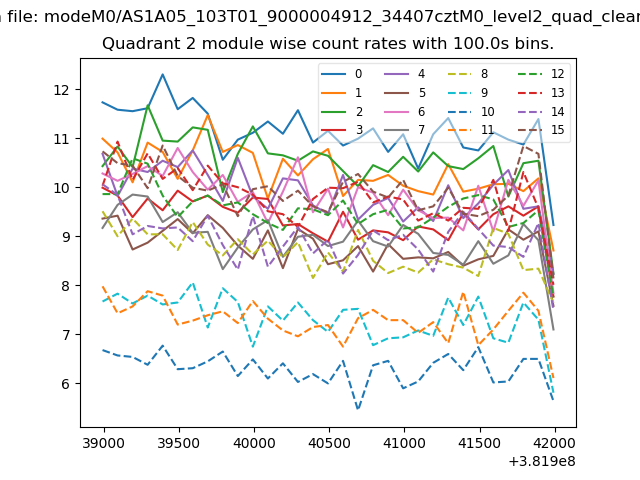

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

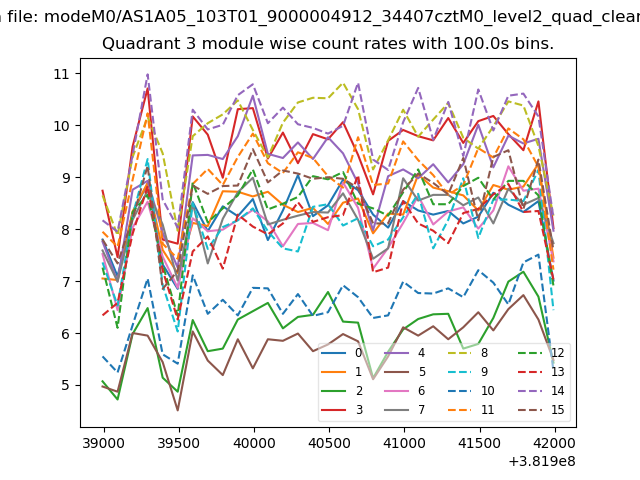

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

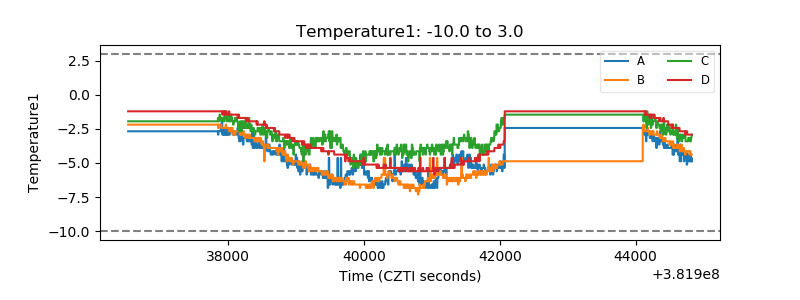

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

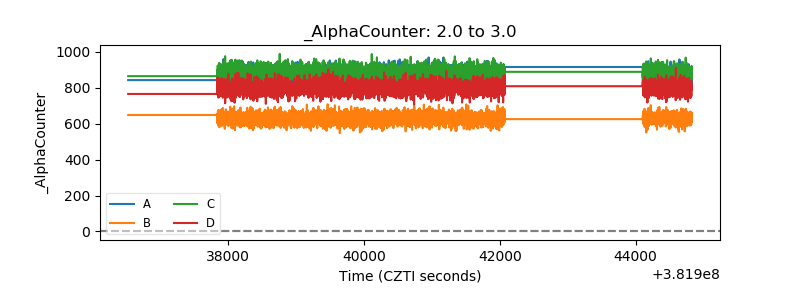

| Alpha Counter |  |

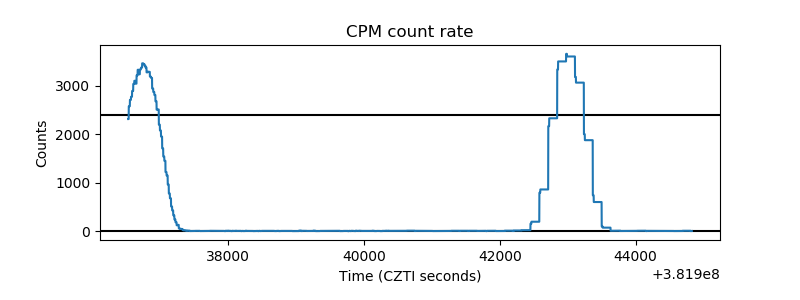

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

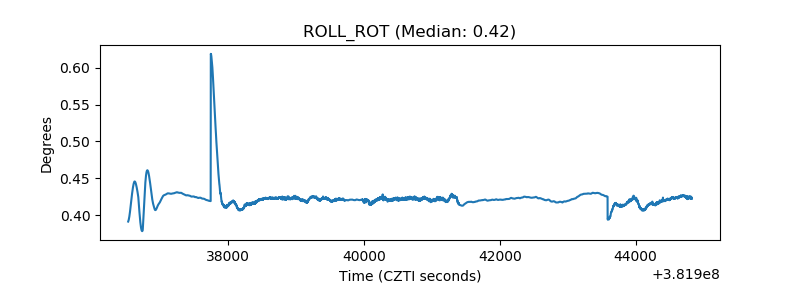

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
