| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_103T01_9000004912_34409cztM0_level2.evt | modeM0/AS1A05_103T01_9000004912_34409cztM0_level2_quad_clean.evt |
| Size (bytes) | 236,943,360 | 47,750,400 |
| Size | 226.0 MB | 45.5 MB |
| Events in quadrant A | 1,258,620 | 319,463 |
| Events in quadrant B | 1,625,562 | 327,502 |
| Events in quadrant C | 1,422,197 | 327,888 |
| Events in quadrant D | 2,697,848 | 291,027 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5399 | 1 |
| B | 0 | 6439 | 1 |
| C | 0 | 5707 | 1 |
| D | 0 | 9839 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 50 | 0 |
| B | 0 | 50 | 0 |
| C | 0 | 50 | 0 |
| D | 0 | 50 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2503 | 3 | 0.119856% |
| B | 2503 | 123 | 4.914103% |
| C | 2503 | 35 | 1.398322% |
| D | 2503 | 252 | 10.067918% |

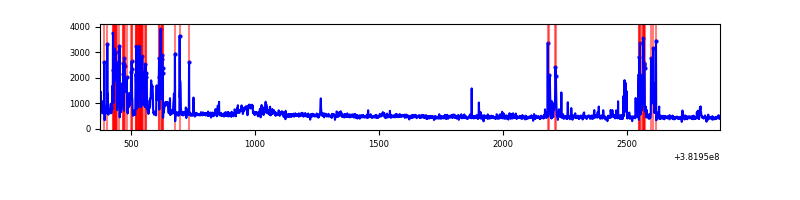

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2503 | 2503 | 0 | 0 | 0.00% | 0.00% |  |
| B | 2503 | 2503 | 73 | 73 | 2.92% | 2.92% |  |
| C | 2503 | 2503 | 21 | 21 | 0.84% | 0.84% |  |
| D | 2503 | 2503 | 218 | 218 | 8.71% | 8.71% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 22869 | 358.82 | 310 | 305 | 62.9 |
| A | 10 | 83 | 17709 | 276.77 | 310 | 305 | 62.9 |
| A | 13 | 6 | 7620 | 116.33 | 310 | 305 | 62.9 |
| B | 5 | 172 | 348533 | 5919.16 | 308 | 301 | 58.8 |
| B | 0 | 190 | 25261 | 424.26 | 308 | 301 | 58.8 |
| B | 0 | 229 | 20862 | 349.49 | 308 | 301 | 58.8 |
| C | 15 | 214 | 105870 | 1457.86 | 311 | 314 | 72.4 |
| C | 0 | 10 | 80263 | 1104.2 | 311 | 314 | 72.4 |
| C | 14 | 67 | 12710 | 171.2 | 311 | 314 | 72.4 |
| D | 7 | 80 | 665759 | 8220.48 | 292 | 288 | 81.0 |
| D | 1 | 52 | 391428 | 4831.7 | 292 | 288 | 81.0 |
| D | 8 | 195 | 301204 | 3717.18 | 292 | 288 | 81.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

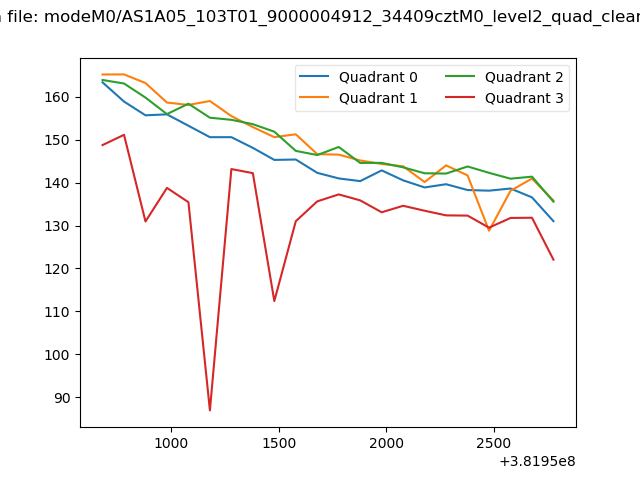

| Plot type | Count rate plots | Images |
|---|---|---|

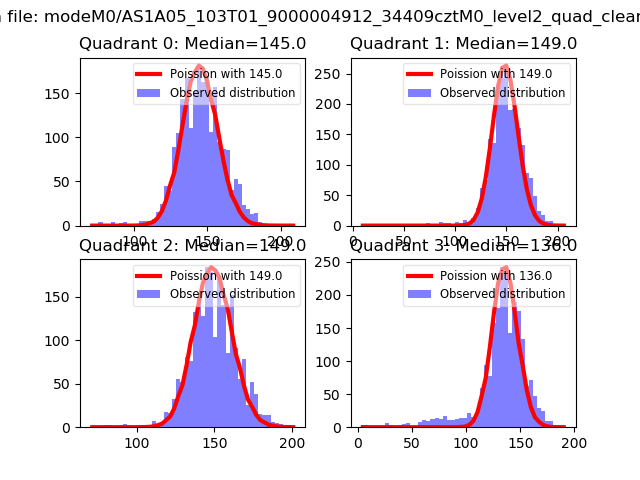

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

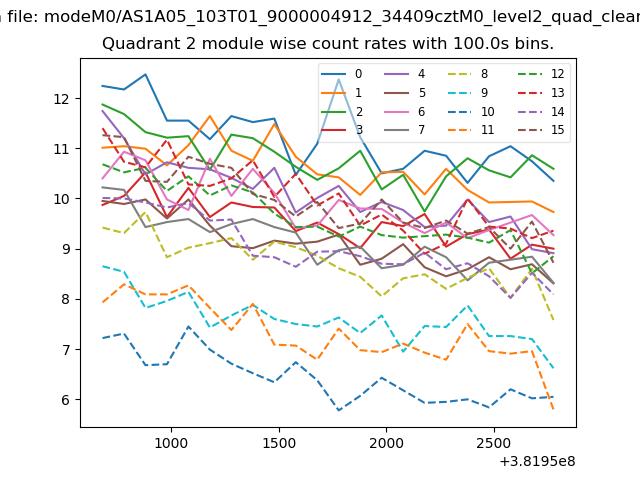

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

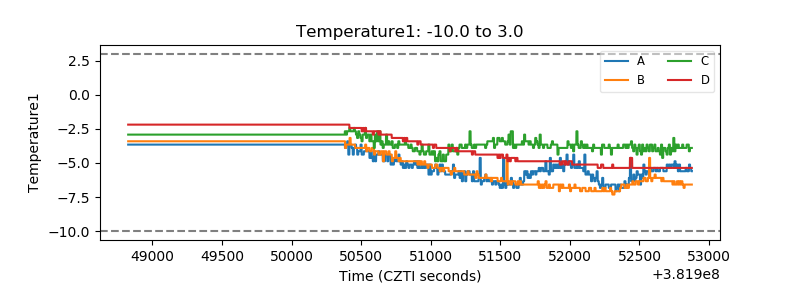

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

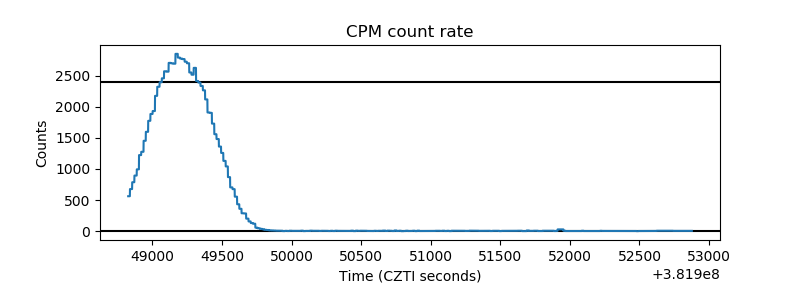

| _CPM_Rate |  |

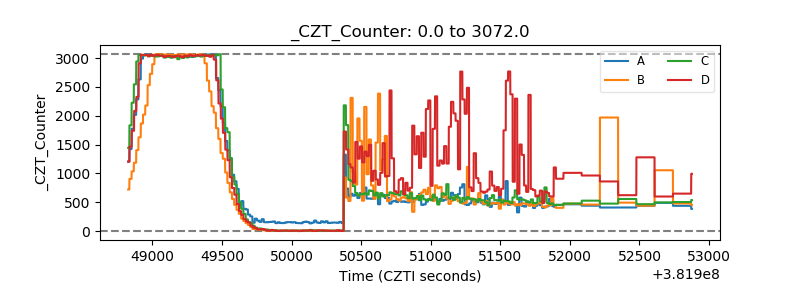

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

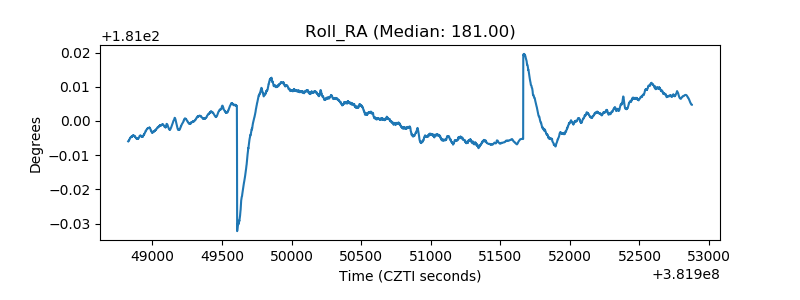

| _Roll_RA |  |
| Veto Counter |  |
