| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_058T05_9000004918_34448cztM0_level2.evt | modeM0/AS1A10_058T05_9000004918_34448cztM0_level2_quad_clean.evt |
| Size (bytes) | 504,973,440 | 59,693,760 |
| Size | 481.6 MB | 56.9 MB |
| Events in quadrant A | 2,659,061 | 365,816 |
| Events in quadrant B | 3,325,751 | 362,401 |
| Events in quadrant C | 3,675,123 | 358,823 |
| Events in quadrant D | 5,263,234 | 337,707 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 24 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11258 | 3 |
| B | 0 | 13227 | 2 |
| C | 0 | 14595 | 2 |
| D | 0 | 19666 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 110 | 0 |
| B | 0 | 110 | 0 |
| C | 0 | 110 | 0 |
| D | 0 | 110 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5470 | 7 | 0.127971% |
| B | 5470 | 169 | 3.089580% |
| C | 5470 | 32 | 0.585009% |
| D | 5470 | 137 | 2.504570% |

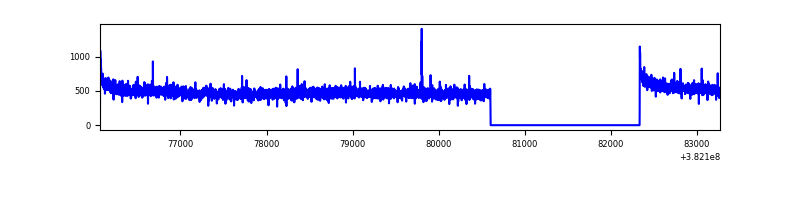

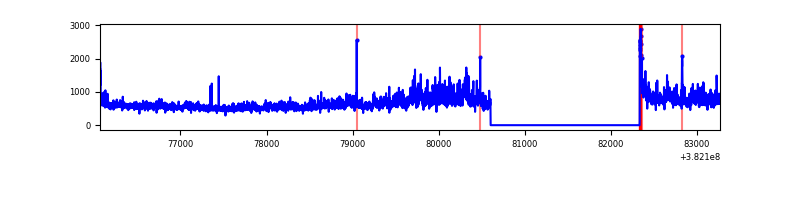

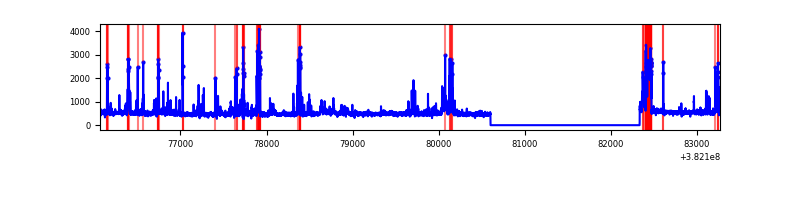

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

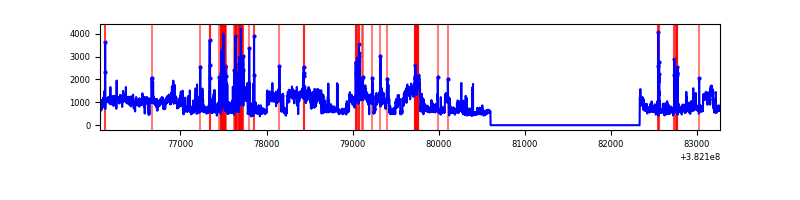

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7203 | 5471 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7203 | 5471 | 125 | 125 | 1.74% | 2.28% |  |
| C | 7203 | 5471 | 15 | 15 | 0.21% | 0.27% |  |
| D | 7203 | 5471 | 121 | 121 | 1.68% | 2.21% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 35898 | 260.11 | 674 | 660 | 135.5 |
| A | 13 | 254 | 8310 | 56.47 | 674 | 660 | 135.5 |
| A | 3 | 137 | 6564 | 43.58 | 674 | 660 | 135.5 |
| B | 5 | 172 | 328011 | 2628.11 | 656 | 637 | 124.6 |
| B | 0 | 229 | 205432 | 1644.07 | 656 | 637 | 124.6 |
| B | 5 | 255 | 94008 | 749.57 | 656 | 637 | 124.6 |
| C | 4 | 254 | 829152 | 5496.0 | 654 | 659 | 150.7 |
| C | 15 | 214 | 233378 | 1543.8 | 654 | 659 | 150.7 |
| C | 0 | 10 | 35386 | 230.37 | 654 | 659 | 150.7 |
| D | 8 | 195 | 2023220 | 12763.18 | 651 | 634 | 158.5 |
| D | 2 | 249 | 231036 | 1453.91 | 651 | 634 | 158.5 |
| D | 2 | 250 | 145106 | 911.67 | 651 | 634 | 158.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

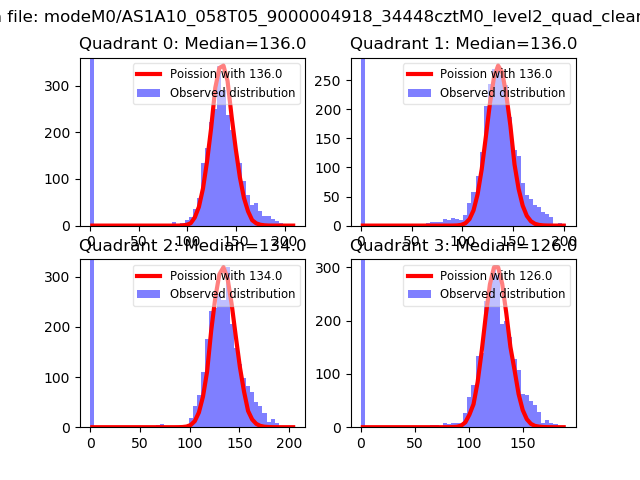

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

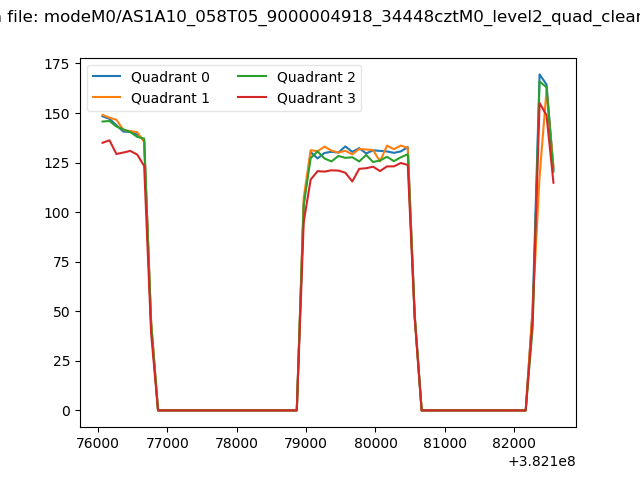

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

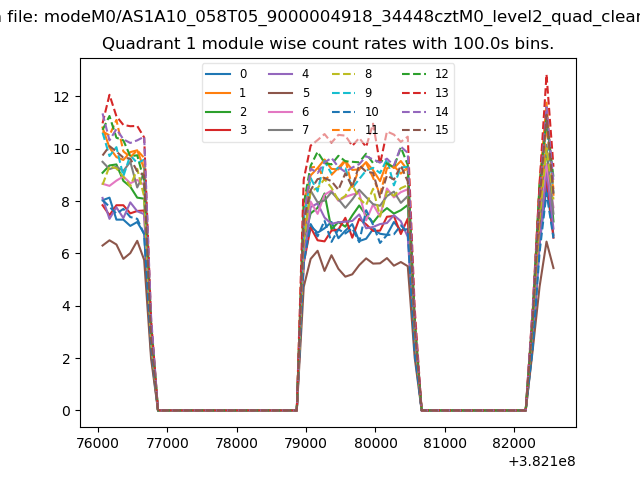

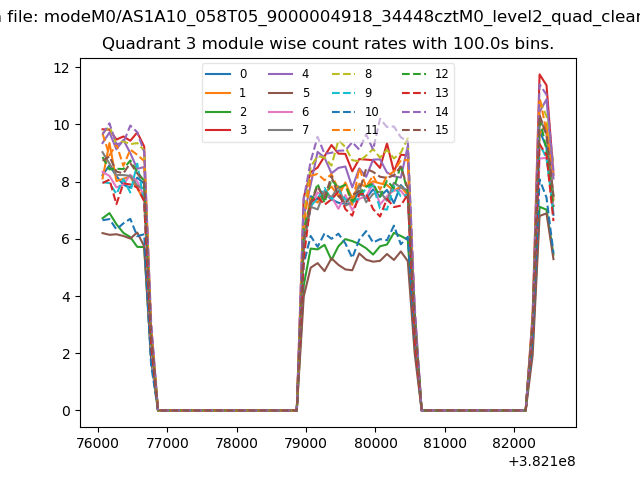

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

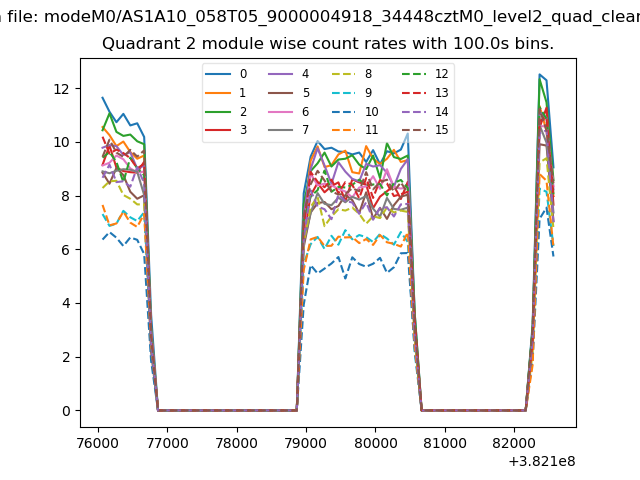

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

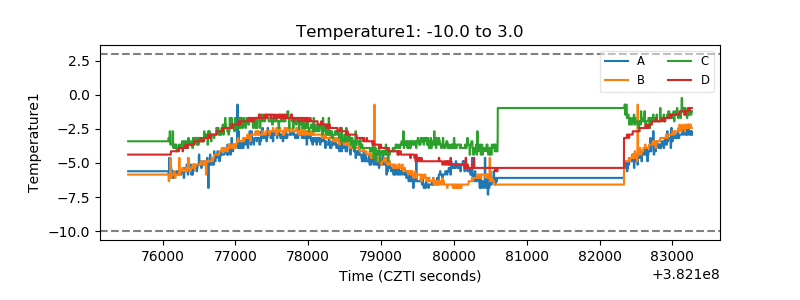

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

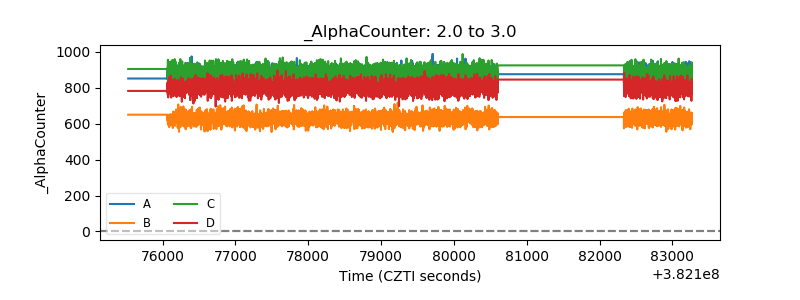

| Alpha Counter |  |
| _CPM_Rate |  |

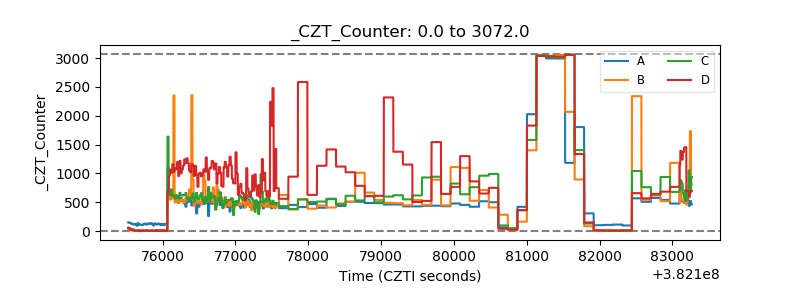

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

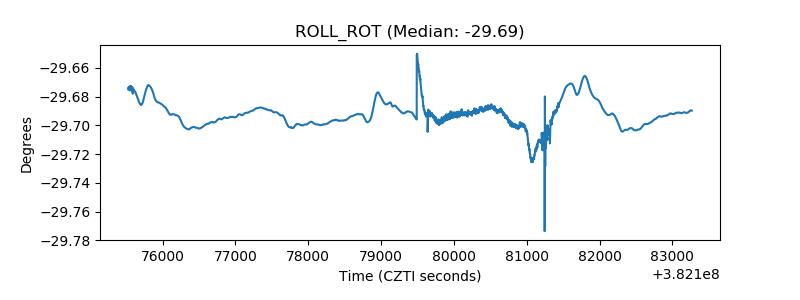

| _ROLL_ROT |  |

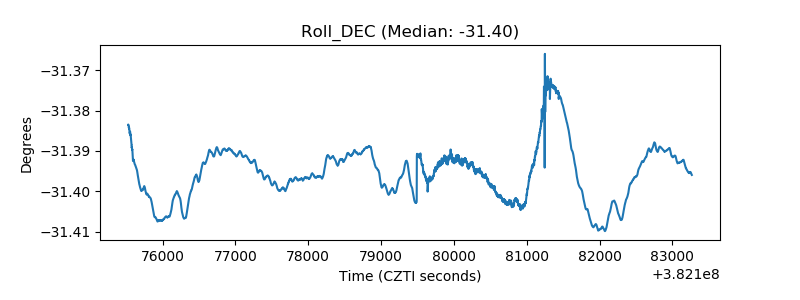

| _Roll_DEC |  |

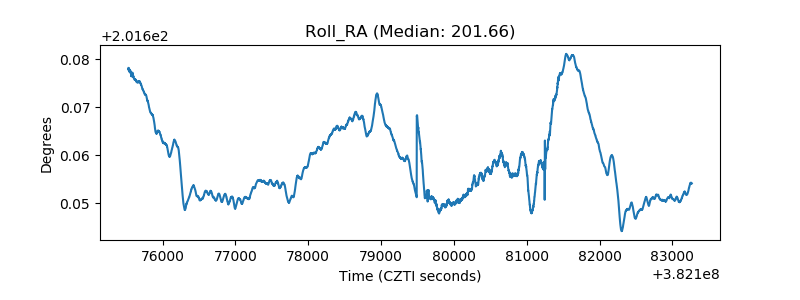

| _Roll_RA |  |
| Veto Counter |  |
