| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_058T06_9000004920_34450cztM0_level2.evt | modeM0/AS1A10_058T06_9000004920_34450cztM0_level2_quad_clean.evt |
| Size (bytes) | 224,611,200 | 28,575,360 |
| Size | 214.2 MB | 27.3 MB |
| Events in quadrant A | 1,266,818 | 178,633 |
| Events in quadrant B | 1,732,093 | 178,597 |
| Events in quadrant C | 1,625,182 | 173,663 |
| Events in quadrant D | 2,017,930 | 165,375 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 48 | 0 |
| B | 0 | 48 | 0 |
| C | 0 | 48 | 0 |
| D | 0 | 48 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5315 | 2 |
| B | 0 | 6719 | 1 |
| C | 0 | 6646 | 1 |
| D | 0 | 7702 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2342 | 5 | 0.213493% |
| B | 2342 | 151 | 6.447481% |
| C | 2342 | 16 | 0.683177% |
| D | 2342 | 31 | 1.323655% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4345 | 2343 | 0 | 0 | 0.00% | 0.00% |  |
| B | 4345 | 2343 | 99 | 99 | 2.28% | 4.23% |  |
| C | 4345 | 2343 | 10 | 10 | 0.23% | 0.43% |  |
| D | 4345 | 2343 | 24 | 24 | 0.55% | 1.02% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 17826 | 269.86 | 321 | 316 | 64.9 |
| A | 13 | 254 | 4119 | 58.61 | 321 | 316 | 64.9 |
| A | 9 | 143 | 2996 | 41.3 | 321 | 316 | 64.9 |
| B | 5 | 172 | 436149 | 7368.21 | 309 | 302 | 59.2 |
| B | 0 | 190 | 31670 | 530.29 | 309 | 302 | 59.2 |
| B | 5 | 31 | 22957 | 382.99 | 309 | 302 | 59.2 |
| C | 4 | 254 | 287504 | 4014.27 | 308 | 312 | 71.5 |
| C | 15 | 214 | 99733 | 1389.67 | 308 | 312 | 71.5 |
| C | 0 | 10 | 15699 | 215.07 | 308 | 312 | 71.5 |
| D | 8 | 195 | 619265 | 8206.72 | 307 | 299 | 75.4 |
| D | 7 | 80 | 60800 | 802.17 | 307 | 299 | 75.4 |
| D | 12 | 235 | 52268 | 689.04 | 307 | 299 | 75.4 |

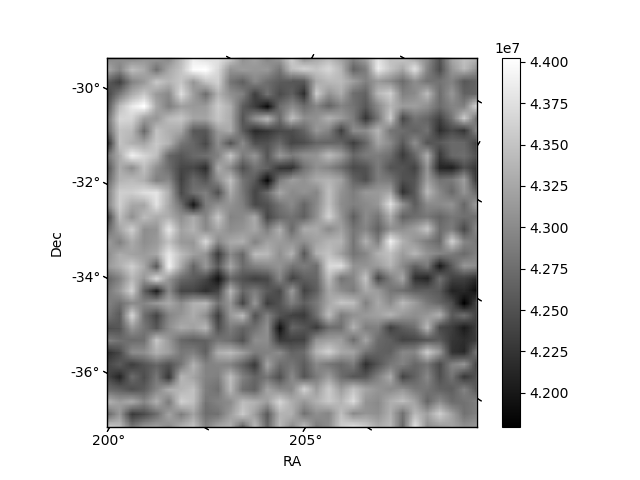

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

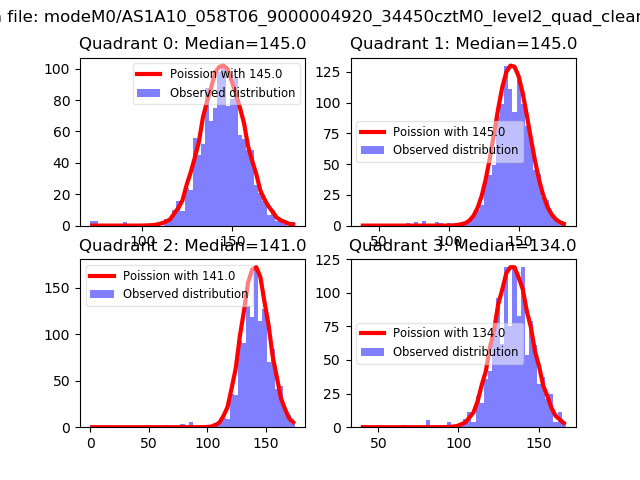

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

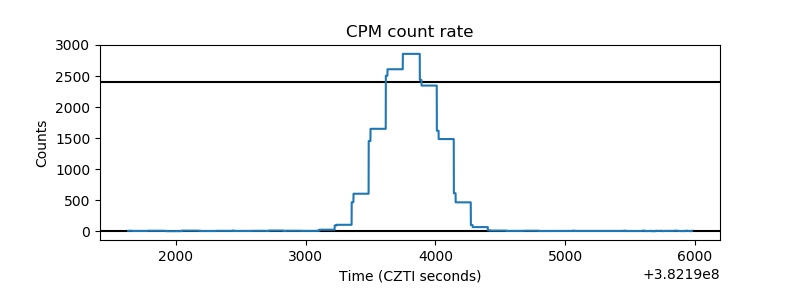

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

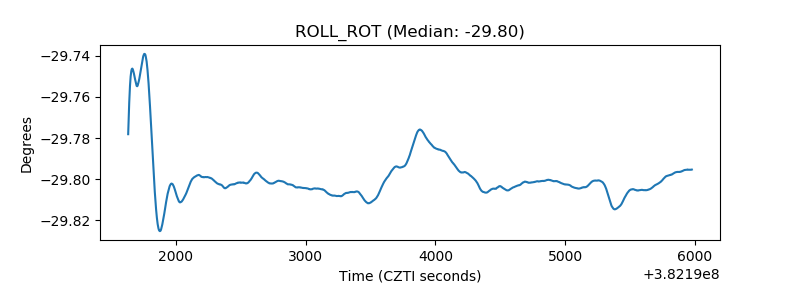

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

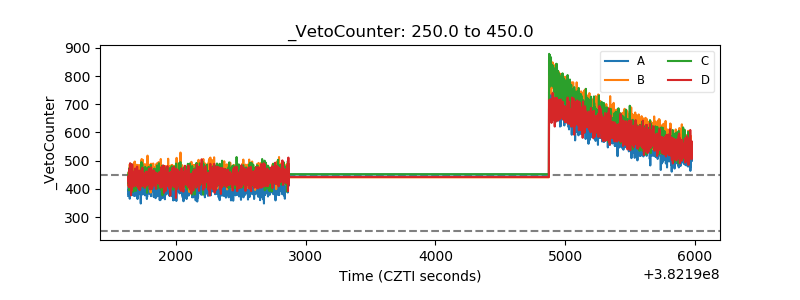

| Veto Counter |  |
