| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_058T06_9000004920_34459cztM0_level2.evt | modeM0/AS1A10_058T06_9000004920_34459cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,300,184,640 | 146,649,600 |
| Size | 1.2 GB | 139.9 MB |
| Events in quadrant A | 9,968,062 | 893,460 |
| Events in quadrant B | 7,785,090 | 918,578 |
| Events in quadrant C | 6,697,260 | 912,355 |
| Events in quadrant D | 14,048,816 | 816,194 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 264 | 0 |
| B | 0 | 264 | 0 |
| C | 0 | 264 | 0 |
| D | 0 | 264 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38215 | 4 |
| B | 0 | 31687 | 3 |
| C | 0 | 27517 | 3 |
| D | 0 | 50860 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 40 | 0 |
| B | 0 | 40 | 0 |
| C | 0 | 40 | 0 |
| D | 0 | 40 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 13035 | 741 | 5.684695% |
| B | 13035 | 518 | 3.973916% |
| C | 13035 | 35 | 0.268508% |
| D | 13035 | 1820 | 13.962409% |

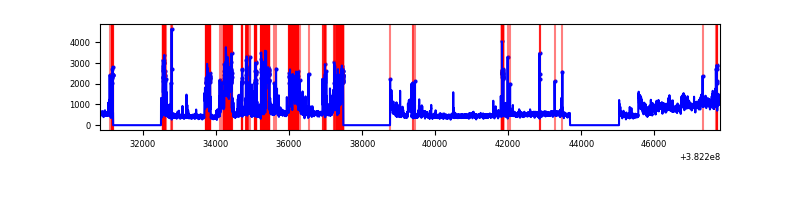

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 16974 | 13038 | 570 | 570 | 3.36% | 4.37% |  |
| B | 16974 | 13038 | 326 | 326 | 1.92% | 2.50% |  |
| C | 16974 | 13038 | 19 | 19 | 0.11% | 0.15% |  |
| D | 16974 | 13037 | 1585 | 1585 | 9.34% | 12.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 3951752 | 13149.13 | 1508 | 1478 | 300.4 |
| A | 10 | 83 | 60759 | 197.33 | 1508 | 1478 | 300.4 |
| A | 12 | 227 | 54169 | 175.39 | 1508 | 1478 | 300.4 |
| B | 5 | 172 | 1594453 | 5531.88 | 1507 | 1467 | 288.0 |
| B | 0 | 229 | 127172 | 436.53 | 1507 | 1467 | 288.0 |
| B | 0 | 190 | 37076 | 123.66 | 1507 | 1467 | 288.0 |
| C | 15 | 214 | 541433 | 1555.89 | 1505 | 1517 | 347.0 |
| C | 14 | 67 | 84739 | 239.82 | 1505 | 1517 | 347.0 |
| C | 15 | 208 | 83309 | 235.7 | 1505 | 1517 | 347.0 |
| D | 8 | 195 | 2694619 | 7814.74 | 1410 | 1369 | 344.6 |
| D | 7 | 223 | 2661657 | 7719.1 | 1410 | 1369 | 344.6 |
| D | 7 | 80 | 1207444 | 3499.55 | 1410 | 1369 | 344.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

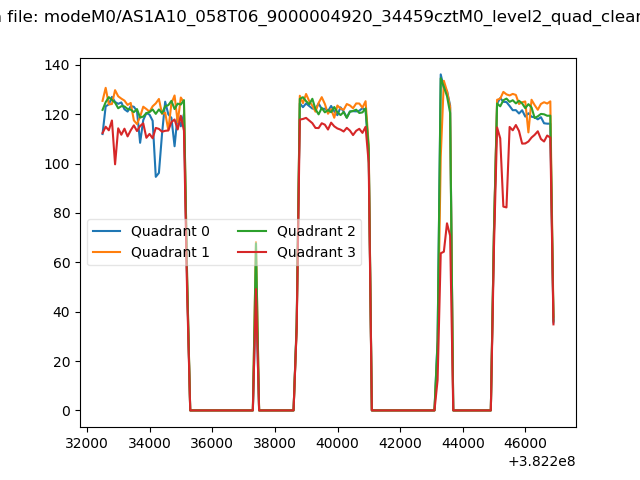

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

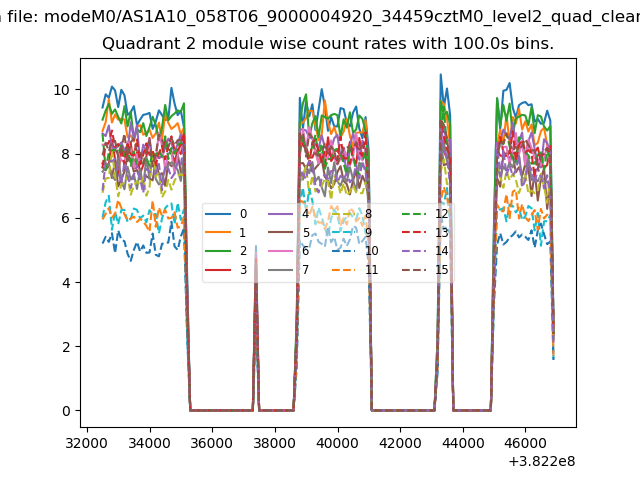

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

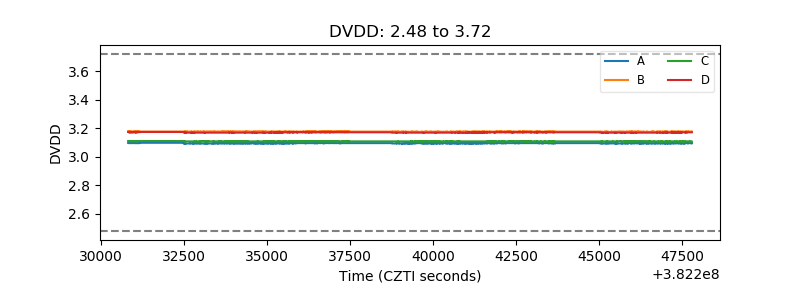

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

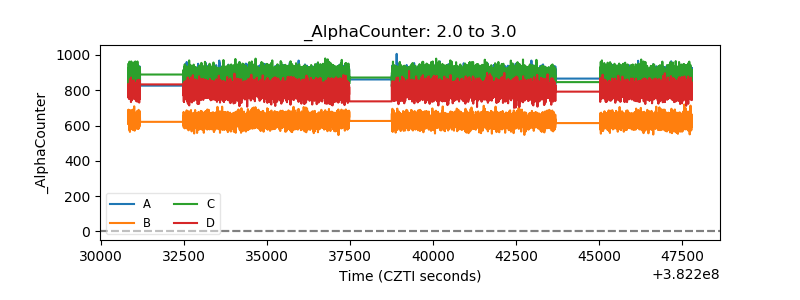

| Alpha Counter |  |

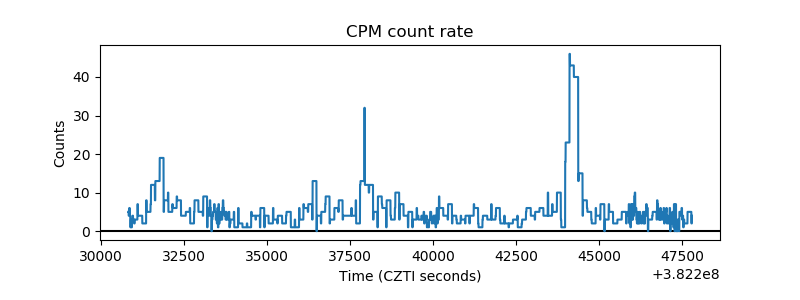

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

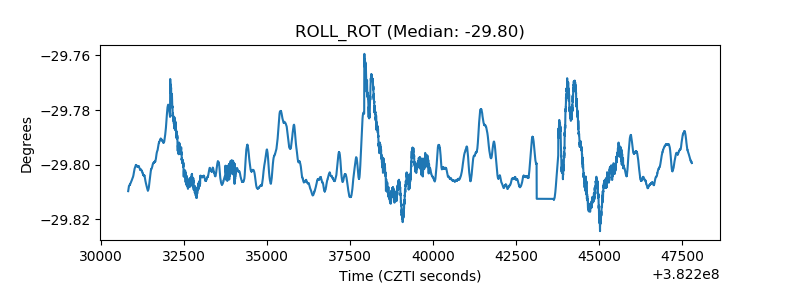

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
