| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T13_9000004922_34474cztM0_level2.evt | modeM0/AS1A10_071T13_9000004922_34474cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,306,175,040 | 178,243,200 |
| Size | 1.2 GB | 170.0 MB |
| Events in quadrant A | 7,822,455 | 1,093,574 |
| Events in quadrant B | 8,970,819 | 1,116,943 |
| Events in quadrant C | 8,112,068 | 1,103,919 |
| Events in quadrant D | 13,596,581 | 1,004,353 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 51 | 0 |
| B | 0 | 51 | 0 |
| C | 0 | 51 | 0 |
| D | 0 | 52 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 320 | 0 |
| B | 0 | 320 | 0 |
| C | 0 | 320 | 0 |
| D | 0 | 320 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 33165 | 5 |
| B | 0 | 36612 | 4 |
| C | 0 | 33244 | 4 |
| D | 0 | 50971 | 4 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 15638 | 108 | 0.690625% |
| B | 15638 | 466 | 2.979921% |
| C | 15638 | 21 | 0.134288% |
| D | 15638 | 1793 | 11.465661% |

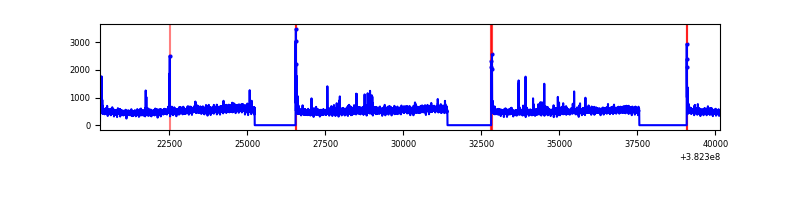

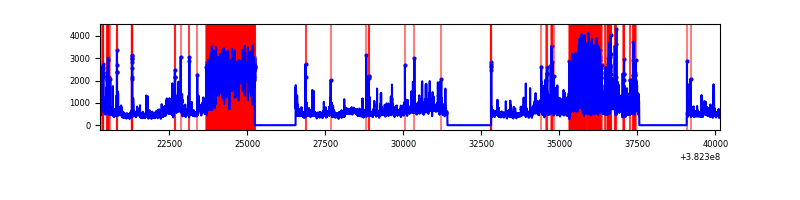

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19876 | 15641 | 69 | 69 | 0.35% | 0.44% |  |
| B | 19876 | 15641 | 298 | 298 | 1.50% | 1.91% |  |
| C | 19876 | 15641 | 11 | 11 | 0.06% | 0.07% |  |
| D | 19876 | 15640 | 1558 | 1558 | 7.84% | 9.96% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 445779 | 1203.25 | 1851 | 1811 | 369.0 |
| A | 7 | 16 | 92817 | 246.65 | 1851 | 1811 | 369.0 |
| A | 10 | 83 | 77078 | 203.99 | 1851 | 1811 | 369.0 |
| B | 5 | 172 | 1480042 | 4214.7 | 1825 | 1772 | 350.7 |
| B | 0 | 189 | 102404 | 286.91 | 1825 | 1772 | 350.7 |
| B | 0 | 190 | 86261 | 240.89 | 1825 | 1772 | 350.7 |
| C | 15 | 214 | 655121 | 1572.93 | 1797 | 1808 | 415.3 |
| C | 3 | 233 | 152863 | 363.68 | 1797 | 1808 | 415.3 |
| C | 14 | 67 | 129219 | 306.76 | 1797 | 1808 | 415.3 |
| D | 7 | 223 | 2999018 | 7263.95 | 1694 | 1648 | 412.6 |
| D | 8 | 195 | 1700802 | 4117.8 | 1694 | 1648 | 412.6 |
| D | 12 | 79 | 1289143 | 3120.17 | 1694 | 1648 | 412.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

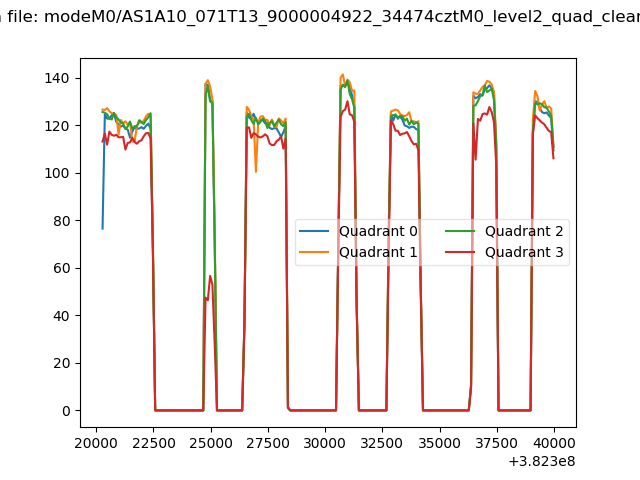

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

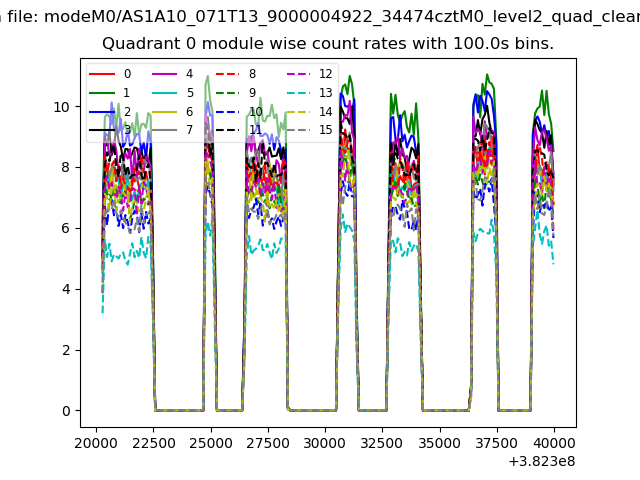

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

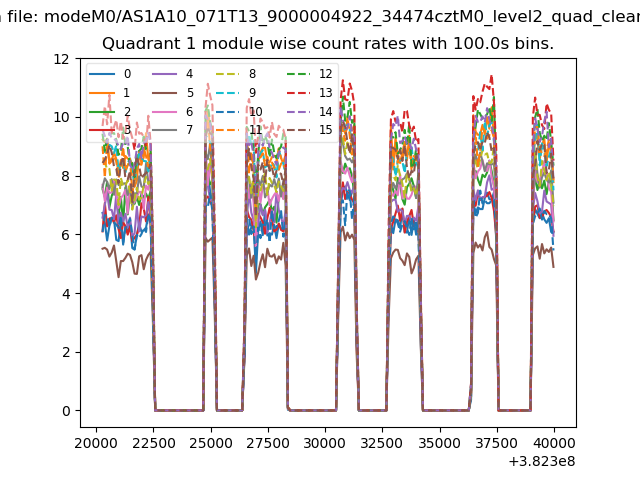

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

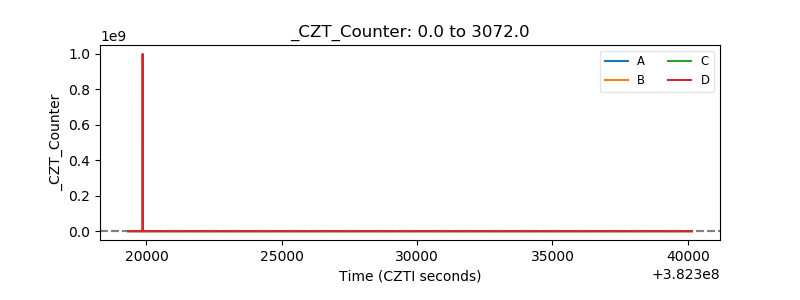

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

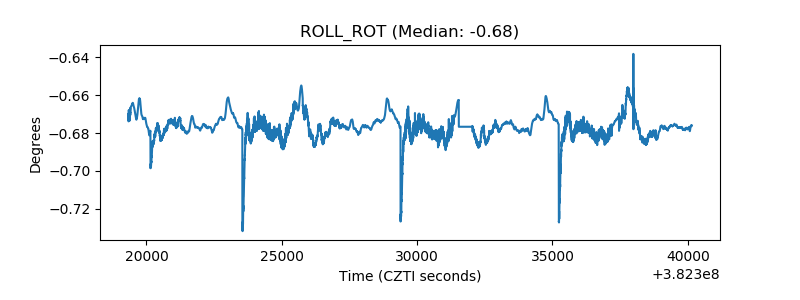

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
