| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_118T04_9000004926_34492cztM0_level2.evt | modeM0/AS1A05_118T04_9000004926_34492cztM0_level2_quad_clean.evt |
| Size (bytes) | 894,706,560 | 109,215,360 |
| Size | 853.3 MB | 104.2 MB |
| Events in quadrant A | 5,189,188 | 655,646 |
| Events in quadrant B | 6,999,596 | 660,463 |
| Events in quadrant C | 5,529,351 | 656,672 |
| Events in quadrant D | 8,672,282 | 610,478 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31 | 0 |
| B | 0 | 31 | 0 |
| C | 0 | 31 | 0 |
| D | 0 | 31 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 214 | 0 |
| B | 0 | 214 | 0 |
| C | 0 | 214 | 0 |
| D | 0 | 214 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22015 | 5 |
| B | 0 | 27563 | 3 |
| C | 0 | 22534 | 3 |
| D | 0 | 32977 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 10448 | 23 | 0.220138% |
| B | 10448 | 708 | 6.776417% |
| C | 10448 | 49 | 0.468989% |
| D | 10448 | 527 | 5.044028% |

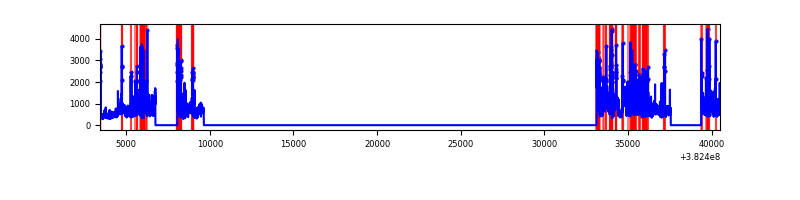

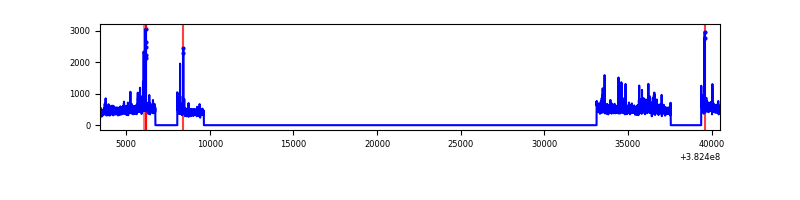

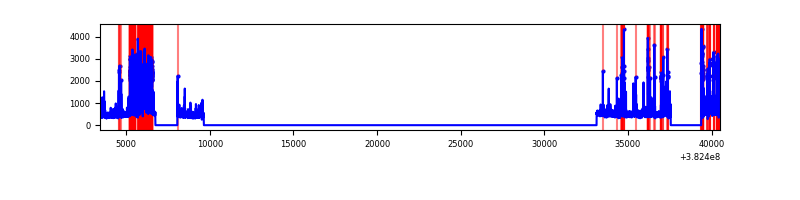

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 37066 | 10451 | 10 | 10 | 0.03% | 0.10% |  |
| B | 37066 | 10451 | 417 | 417 | 1.13% | 3.99% |  |
| C | 37066 | 10451 | 31 | 31 | 0.08% | 0.30% |  |
| D | 37066 | 10451 | 437 | 437 | 1.18% | 4.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 188820 | 744.54 | 1264 | 1241 | 251.9 |
| A | 10 | 83 | 55249 | 214.37 | 1264 | 1241 | 251.9 |
| A | 9 | 143 | 43819 | 169.0 | 1264 | 1241 | 251.9 |
| B | 5 | 172 | 1479668 | 6420.72 | 1214 | 1183 | 230.3 |
| B | 0 | 189 | 374932 | 1623.11 | 1214 | 1183 | 230.3 |
| B | 5 | 255 | 136894 | 589.36 | 1214 | 1183 | 230.3 |
| C | 15 | 214 | 441487 | 1579.83 | 1216 | 1225 | 278.7 |
| C | 0 | 10 | 183284 | 653.3 | 1216 | 1225 | 278.7 |
| C | 14 | 67 | 130710 | 464.64 | 1216 | 1225 | 278.7 |
| D | 8 | 195 | 2134433 | 7257.78 | 1201 | 1166 | 293.9 |
| D | 12 | 79 | 337008 | 1142.6 | 1201 | 1166 | 293.9 |
| D | 2 | 249 | 312275 | 1058.45 | 1201 | 1166 | 293.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

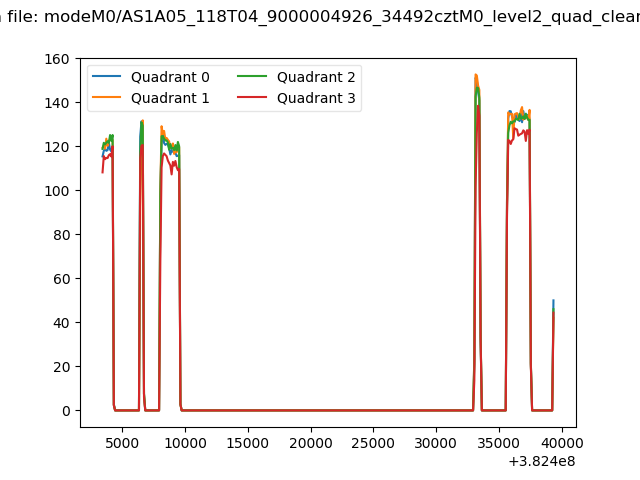

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

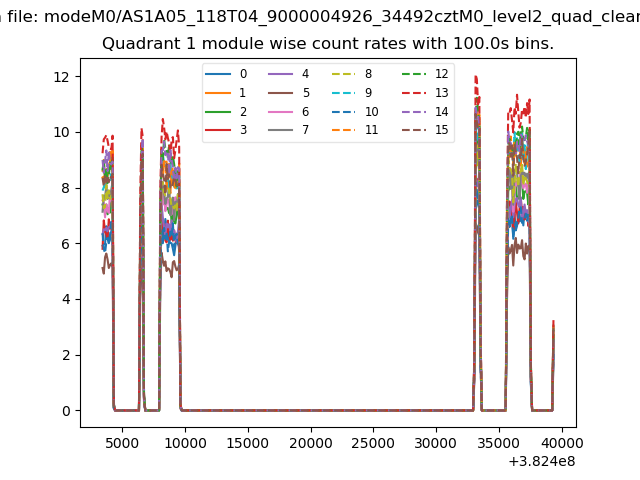

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

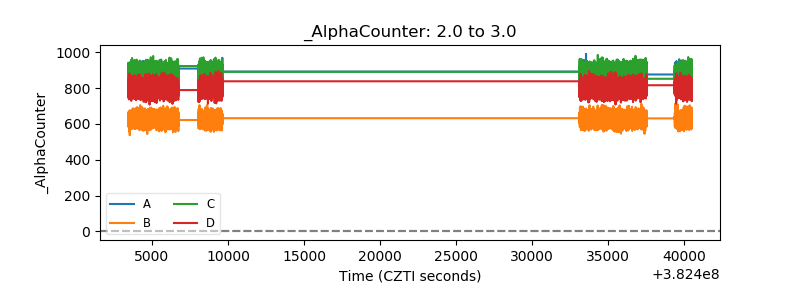

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

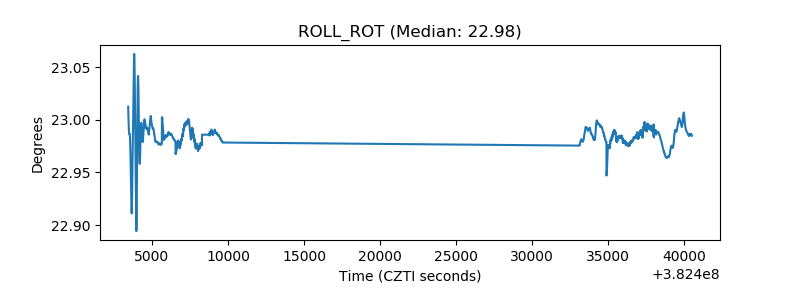

| _ROLL_ROT |  |

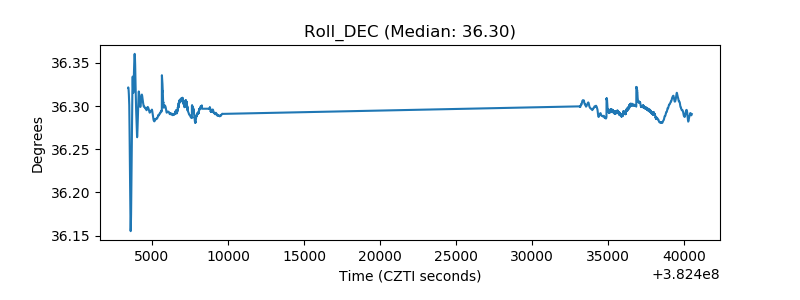

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
