| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T14_9000004924_34481cztM0_level2.evt | modeM0/AS1A10_071T14_9000004924_34481cztM0_level2_quad_clean.evt |
| Size (bytes) | 442,212,480 | 68,990,400 |
| Size | 421.7 MB | 65.8 MB |
| Events in quadrant A | 2,672,583 | 440,375 |
| Events in quadrant B | 3,731,669 | 448,020 |
| Events in quadrant C | 2,783,445 | 445,114 |
| Events in quadrant D | 3,877,994 | 417,748 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11013 | 3 |
| B | 0 | 14030 | 2 |
| C | 0 | 11176 | 2 |
| D | 0 | 14936 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 98 | 0 |
| B | 0 | 98 | 0 |
| C | 0 | 98 | 0 |
| D | 0 | 98 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 37 | 0 |
| B | 0 | 37 | 0 |
| C | 0 | 37 | 0 |
| D | 0 | 38 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4814 | 12 | 0.249273% |
| B | 4814 | 552 | 11.466556% |
| C | 4814 | 48 | 0.997092% |
| D | 4814 | 196 | 4.071458% |

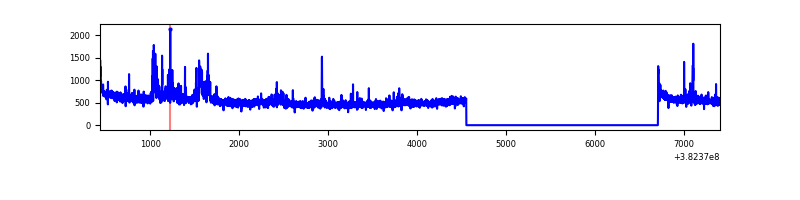

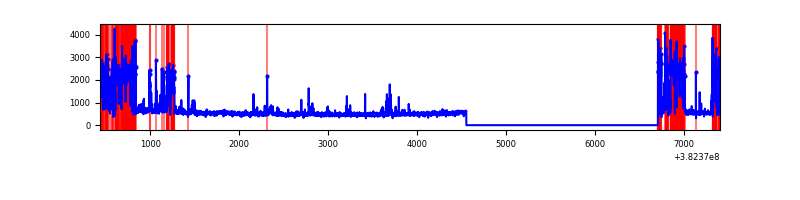

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6968 | 4815 | 1 | 1 | 0.01% | 0.02% |  |
| B | 6968 | 4815 | 442 | 442 | 6.34% | 9.18% |  |
| C | 6968 | 4815 | 26 | 26 | 0.37% | 0.54% |  |
| D | 6968 | 4815 | 160 | 160 | 2.30% | 3.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 174387 | 1384.61 | 626 | 617 | 125.5 |
| A | 10 | 83 | 38644 | 303.0 | 626 | 617 | 125.5 |
| A | 9 | 143 | 18858 | 145.35 | 626 | 617 | 125.5 |
| B | 5 | 172 | 1313552 | 12009.2 | 585 | 573 | 109.3 |
| B | 0 | 189 | 42244 | 381.14 | 585 | 573 | 109.3 |
| B | 0 | 190 | 27810 | 249.12 | 585 | 573 | 109.3 |
| C | 15 | 214 | 206428 | 1459.58 | 617 | 626 | 141.0 |
| C | 0 | 10 | 147168 | 1039.3 | 617 | 626 | 141.0 |
| C | 14 | 67 | 12960 | 87.47 | 617 | 626 | 141.0 |
| D | 8 | 195 | 463589 | 3150.3 | 607 | 594 | 147.0 |
| D | 1 | 52 | 405892 | 2757.72 | 607 | 594 | 147.0 |
| D | 7 | 223 | 197466 | 1339.55 | 607 | 594 | 147.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

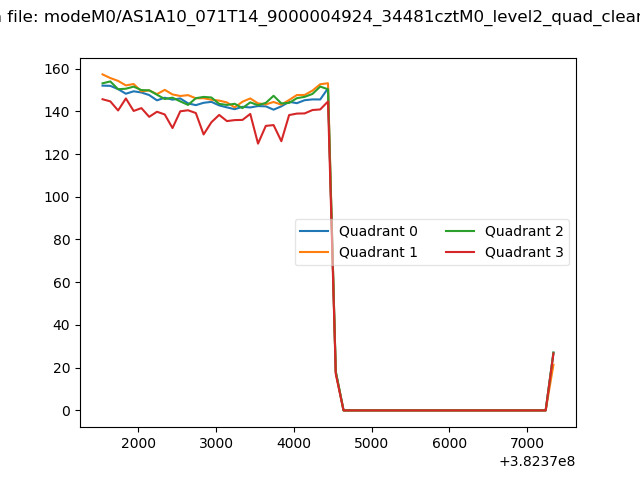

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

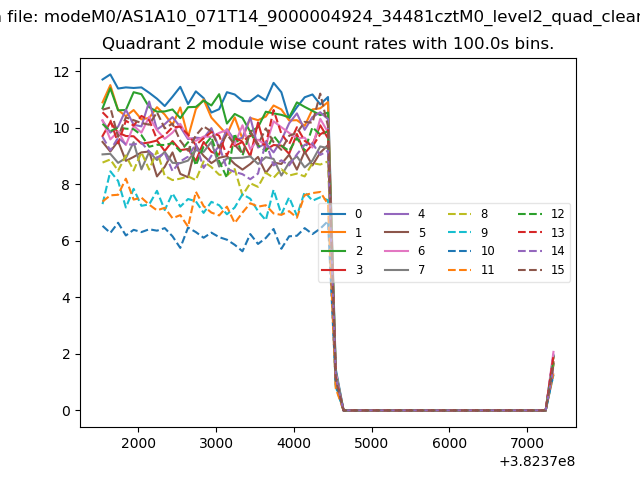

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

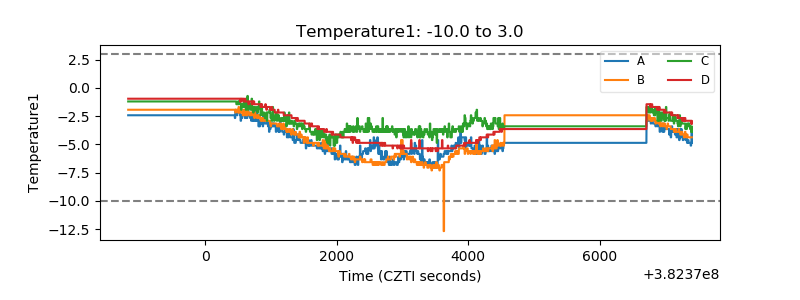

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

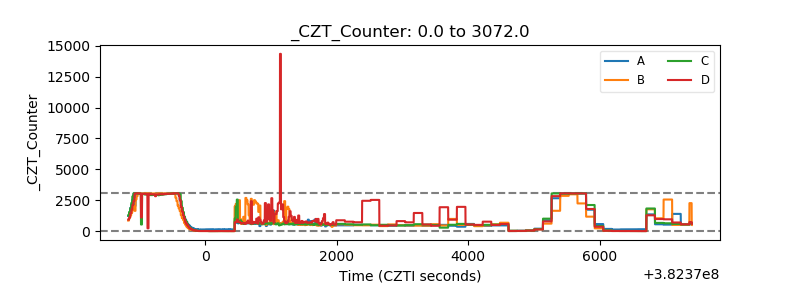

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

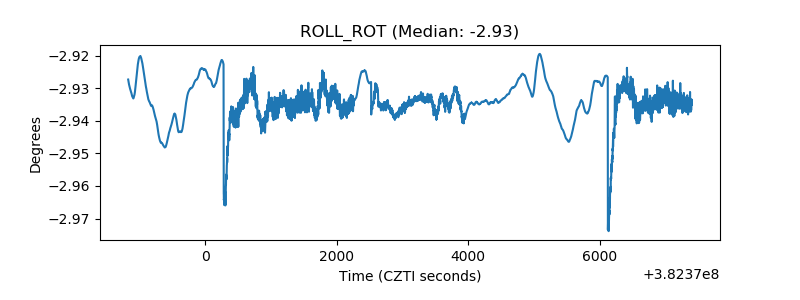

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
