| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T14_9000004924_34486cztM0_level2.evt | modeM0/AS1A10_071T14_9000004924_34486cztM0_level2_quad_clean.evt |
| Size (bytes) | 113,284,800 | 21,170,880 |
| Size | 108.0 MB | 20.2 MB |
| Events in quadrant A | 991,345 | 134,931 |
| Events in quadrant B | 721,433 | 138,229 |
| Events in quadrant C | 697,581 | 136,856 |
| Events in quadrant D | 926,053 | 129,798 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3892 | 1 |
| B | 0 | 3081 | 1 |
| C | 0 | 2891 | 1 |
| D | 0 | 3721 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30 | 0 |
| B | 0 | 30 | 0 |
| C | 0 | 30 | 0 |
| D | 0 | 30 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1343 | 143 | 10.647803% |
| B | 1343 | 29 | 2.159345% |
| C | 1343 | 13 | 0.967982% |
| D | 1343 | 31 | 2.308265% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2686 | 1344 | 85 | 85 | 3.16% | 6.32% |  |
| B | 2686 | 1344 | 16 | 16 | 0.60% | 1.19% |  |
| C | 2686 | 1344 | 7 | 7 | 0.26% | 0.52% |  |
| D | 2686 | 1344 | 27 | 27 | 1.01% | 2.01% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 406225 | 13165.97 | 144 | 141 | 30.8 |
| A | 10 | 83 | 16378 | 526.43 | 144 | 141 | 30.8 |
| A | 10 | 255 | 4912 | 154.68 | 144 | 141 | 30.8 |
| B | 5 | 172 | 68187 | 2208.37 | 150 | 146 | 30.8 |
| B | 0 | 189 | 23680 | 763.83 | 150 | 146 | 30.8 |
| B | 5 | 255 | 14007 | 449.88 | 150 | 146 | 30.8 |
| C | 15 | 214 | 59981 | 1643.69 | 148 | 149 | 36.4 |
| C | 0 | 10 | 40825 | 1117.44 | 148 | 149 | 36.4 |
| C | 14 | 67 | 10766 | 291.67 | 148 | 149 | 36.4 |
| D | 8 | 195 | 182308 | 4900.19 | 144 | 140 | 37.2 |
| D | 12 | 218 | 69418 | 1863.53 | 144 | 140 | 37.2 |
| D | 5 | 171 | 25228 | 674.85 | 144 | 140 | 37.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

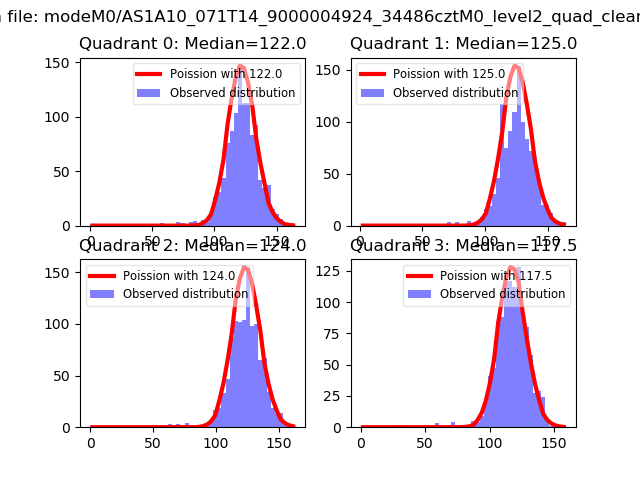

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

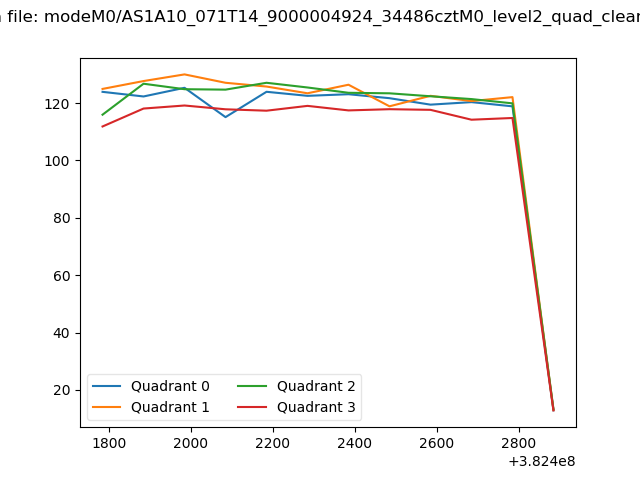

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

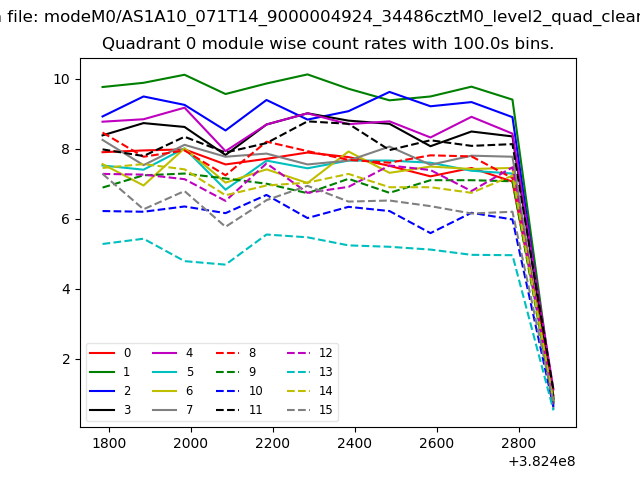

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

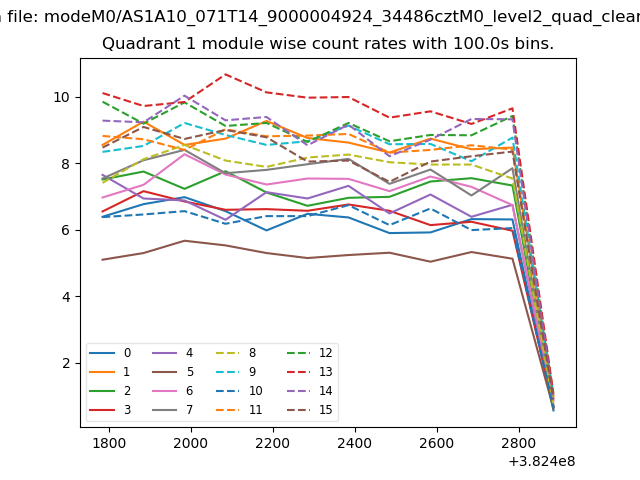

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

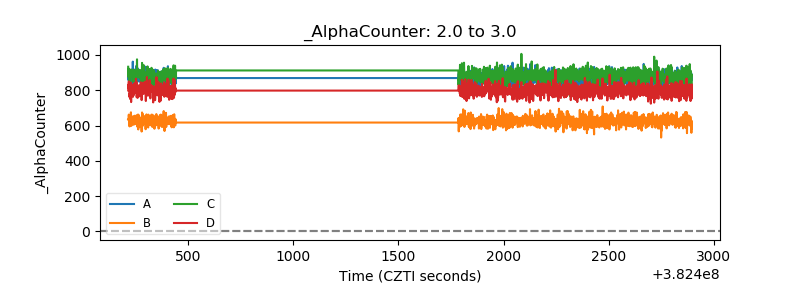

| Alpha Counter |  |

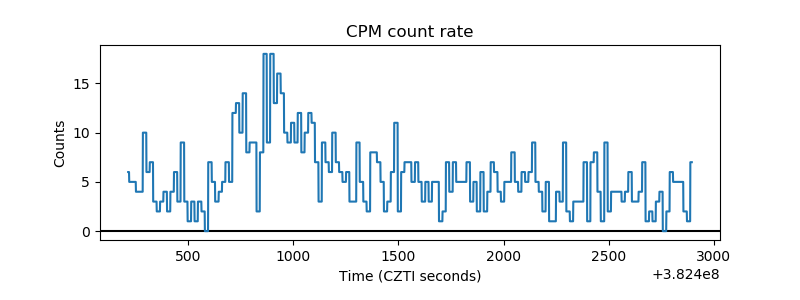

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

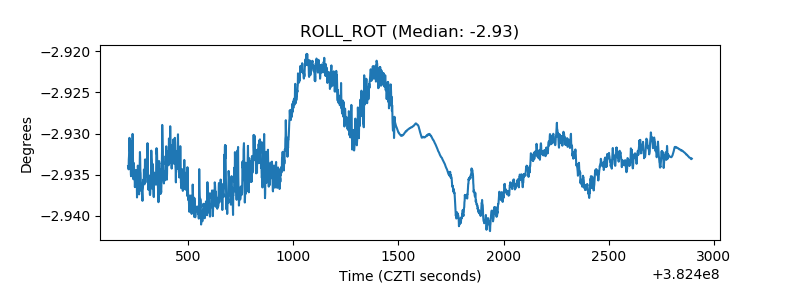

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

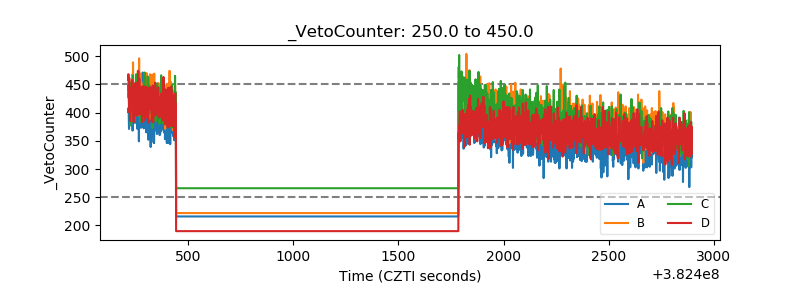

| Veto Counter |  |
