| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_156T01_9000004928_34499cztM0_level2.evt | modeM0/AS1A05_156T01_9000004928_34499cztM0_level2_quad_clean.evt |
| Size (bytes) | 514,463,040 | 88,672,320 |
| Size | 490.6 MB | 84.6 MB |
| Events in quadrant A | 2,759,058 | 581,982 |
| Events in quadrant B | 4,293,771 | 575,884 |
| Events in quadrant C | 3,040,763 | 581,509 |
| Events in quadrant D | 5,100,131 | 546,704 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12094 | 3 |
| B | 0 | 16651 | 2 |
| C | 0 | 12560 | 2 |
| D | 0 | 19254 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27 | 0 |
| B | 0 | 27 | 0 |
| C | 0 | 27 | 0 |
| D | 0 | 28 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5709 | 23 | 0.402873% |
| B | 5709 | 357 | 6.253284% |
| C | 5709 | 59 | 1.033456% |
| D | 5709 | 176 | 3.082852% |

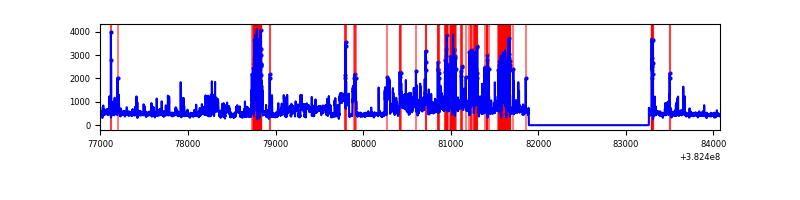

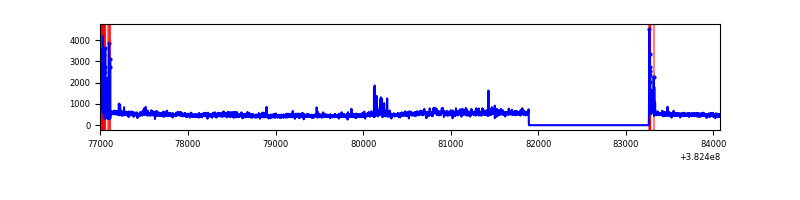

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7081 | 5710 | 13 | 13 | 0.18% | 0.23% |  |
| B | 7081 | 5710 | 238 | 238 | 3.36% | 4.17% |  |
| C | 7081 | 5710 | 39 | 39 | 0.55% | 0.68% |  |
| D | 7081 | 5710 | 136 | 136 | 1.92% | 2.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 110052 | 826.62 | 656 | 643 | 132.4 |
| A | 9 | 143 | 52513 | 391.9 | 656 | 643 | 132.4 |
| A | 10 | 83 | 39183 | 291.18 | 656 | 643 | 132.4 |
| B | 5 | 63 | 803523 | 6548.87 | 636 | 619 | 122.6 |
| B | 5 | 172 | 608725 | 4960.0 | 636 | 619 | 122.6 |
| B | 0 | 229 | 213387 | 1735.44 | 636 | 619 | 122.6 |
| C | 15 | 214 | 244448 | 1646.97 | 637 | 642 | 148.0 |
| C | 0 | 10 | 149006 | 1002.24 | 637 | 642 | 148.0 |
| C | 14 | 67 | 128958 | 866.81 | 637 | 642 | 148.0 |
| D | 8 | 195 | 1400161 | 8348.27 | 627 | 614 | 167.6 |
| D | 2 | 250 | 337464 | 2009.3 | 627 | 614 | 167.6 |
| D | 14 | 52 | 227322 | 1352.31 | 627 | 614 | 167.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

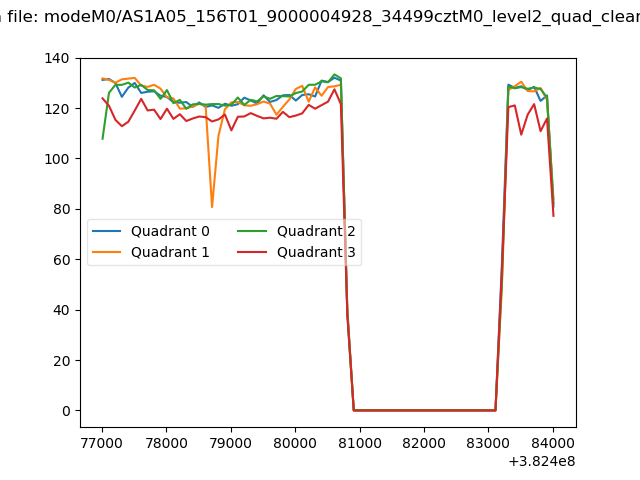

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

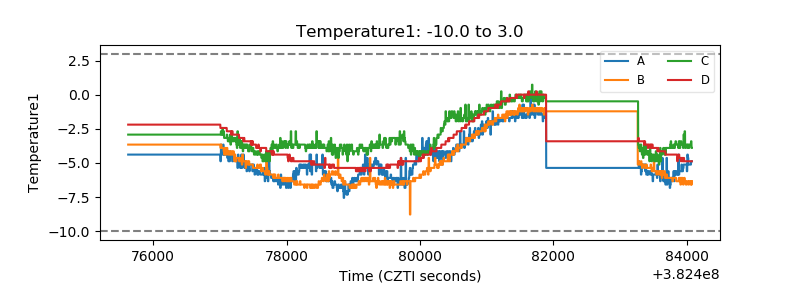

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

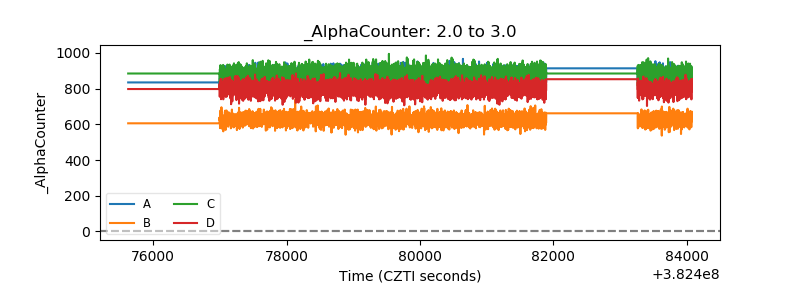

| Alpha Counter |  |

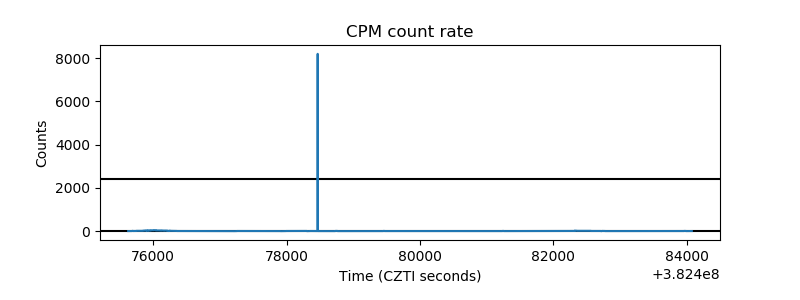

| _CPM_Rate |  |

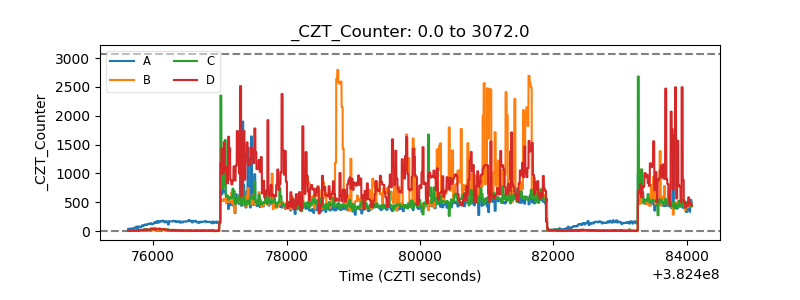

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

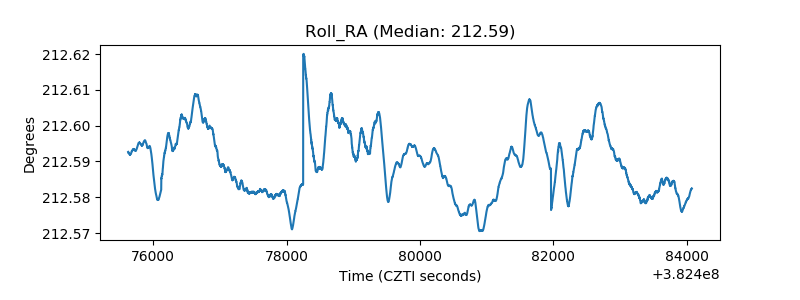

| _Roll_RA |  |
| Veto Counter |  |
