| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_156T01_9000004928_34506cztM0_level2.evt | modeM0/AS1A05_156T01_9000004928_34506cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,208,669,120 | 275,022,720 |
| Size | 2.1 GB | 262.3 MB |
| Events in quadrant A | 11,150,944 | 1,727,283 |
| Events in quadrant B | 15,898,366 | 1,725,751 |
| Events in quadrant C | 12,108,049 | 1,734,001 |
| Events in quadrant D | 26,123,216 | 1,496,961 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 490 | 0 |
| B | 0 | 490 | 0 |
| C | 0 | 490 | 0 |
| D | 0 | 490 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 48808 | 6 |
| B | 0 | 63132 | 5 |
| C | 0 | 50575 | 5 |
| D | 0 | 94383 | 5 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 76 | 0 |
| B | 0 | 76 | 0 |
| C | 0 | 76 | 0 |
| D | 0 | 76 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 23900 | 46 | 0.192469% |
| B | 23900 | 1563 | 6.539749% |
| C | 23900 | 43 | 0.179916% |
| D | 23900 | 3673 | 15.368201% |

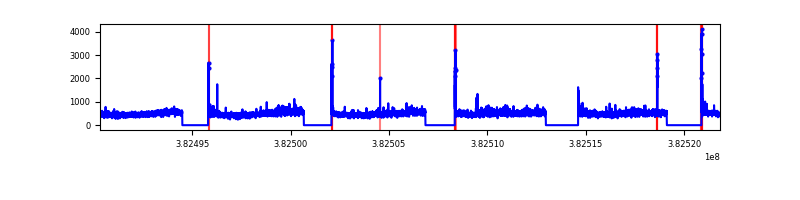

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 31515 | 23905 | 18 | 18 | 0.06% | 0.08% |  |
| B | 31515 | 23905 | 990 | 990 | 3.14% | 4.14% |  |
| C | 31515 | 23905 | 22 | 22 | 0.07% | 0.09% |  |
| D | 31515 | 23905 | 3176 | 3176 | 10.08% | 13.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 131367 | 232.67 | 2789 | 2736 | 552.8 |
| A | 10 | 83 | 113852 | 200.99 | 2789 | 2736 | 552.8 |
| A | 15 | 169 | 54352 | 93.36 | 2789 | 2736 | 552.8 |
| B | 5 | 172 | 4158849 | 8174.75 | 2686 | 2618 | 508.4 |
| B | 0 | 229 | 456702 | 893.12 | 2686 | 2618 | 508.4 |
| B | 4 | 171 | 196707 | 381.75 | 2686 | 2618 | 508.4 |
| C | 15 | 214 | 1005925 | 1630.61 | 2685 | 2705 | 615.2 |
| C | 14 | 67 | 428203 | 691.59 | 2685 | 2705 | 615.2 |
| C | 0 | 10 | 118967 | 188.97 | 2685 | 2705 | 615.2 |
| D | 12 | 17 | 4225667 | 6881.67 | 2525 | 2455 | 613.7 |
| D | 8 | 195 | 4168724 | 6788.88 | 2525 | 2455 | 613.7 |
| D | 2 | 250 | 1880149 | 3059.68 | 2525 | 2455 | 613.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

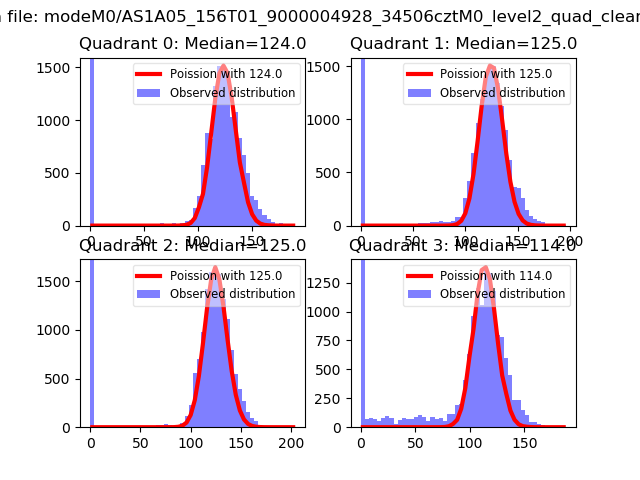

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

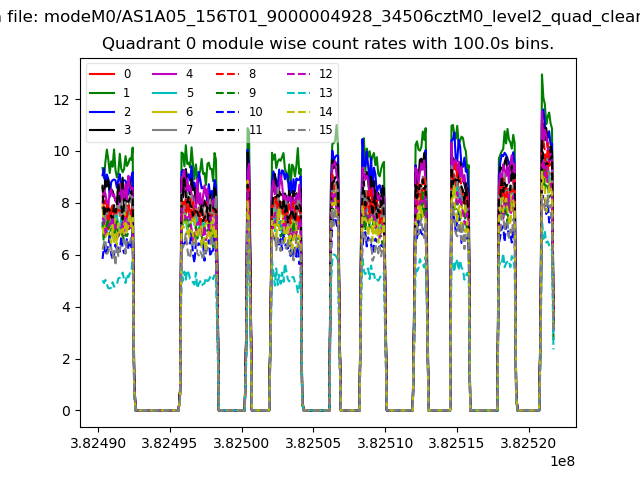

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

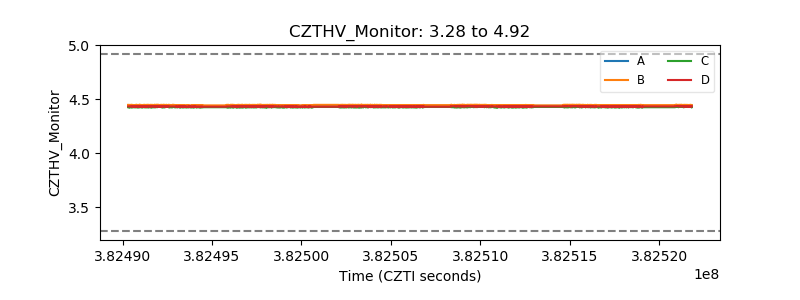

| CZT HV Monitor |  |
| D_VDD |  |

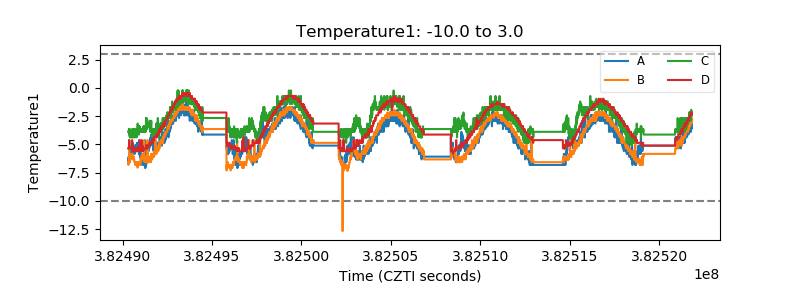

| Temperature 1 |  |

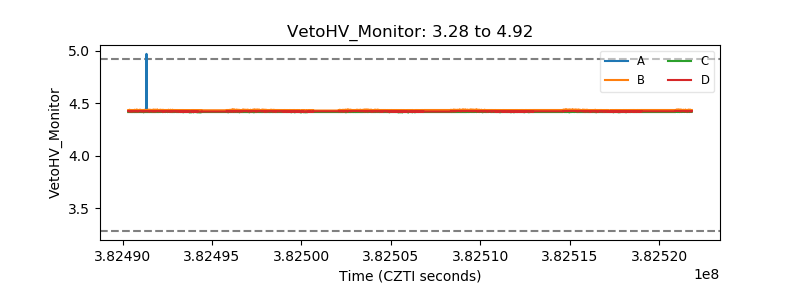

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

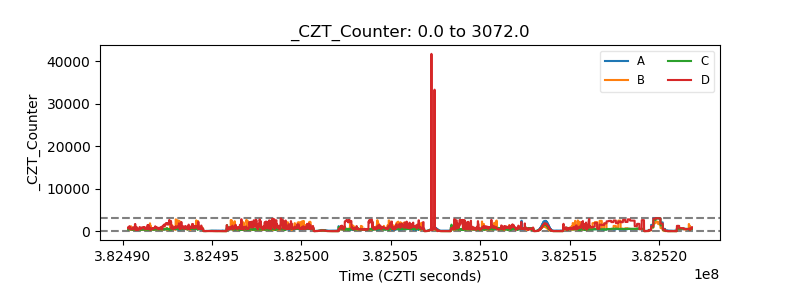

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

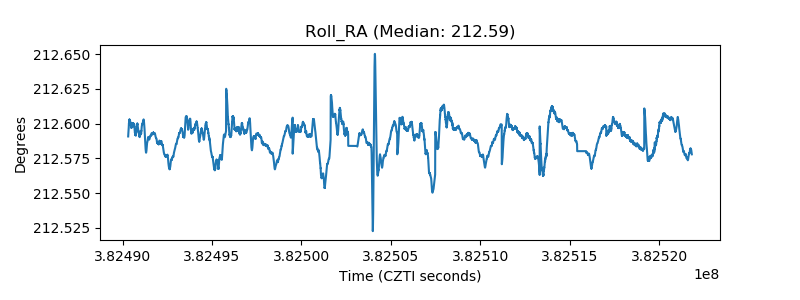

| _Roll_RA |  |
| Veto Counter |  |
