| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_156T01_9000004928_34507cztM0_level2.evt | modeM0/AS1A05_156T01_9000004928_34507cztM0_level2_quad_clean.evt |
| Size (bytes) | 453,862,080 | 63,797,760 |
| Size | 432.8 MB | 60.8 MB |
| Events in quadrant A | 2,638,648 | 402,914 |
| Events in quadrant B | 3,453,016 | 400,800 |
| Events in quadrant C | 2,838,770 | 396,143 |
| Events in quadrant D | 4,461,437 | 366,781 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10942 | 3 |
| B | 0 | 13440 | 2 |
| C | 0 | 11300 | 2 |
| D | 0 | 16800 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 21 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5209 | 7 | 0.134383% |
| B | 5209 | 232 | 4.453830% |
| C | 5209 | 25 | 0.479939% |
| D | 5209 | 297 | 5.701670% |

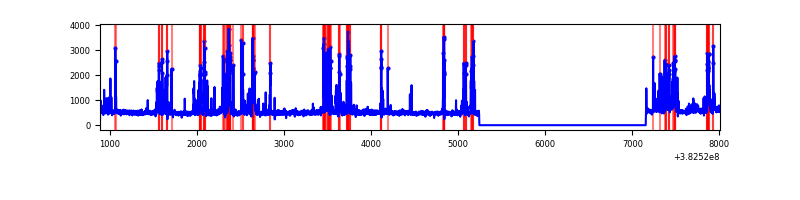

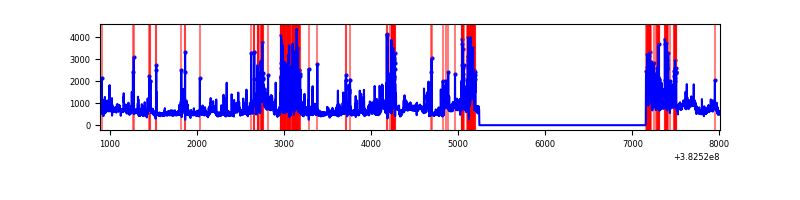

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

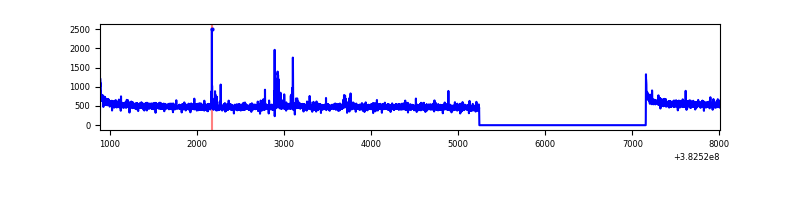

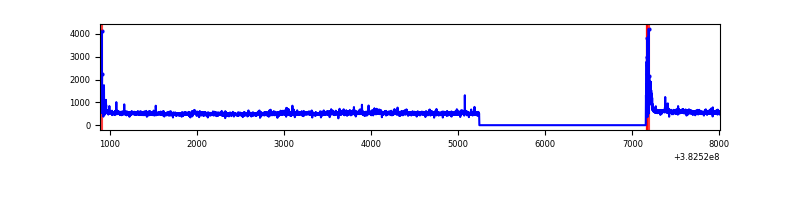

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7123 | 5210 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7123 | 5210 | 157 | 157 | 2.20% | 3.01% |  |
| C | 7123 | 5210 | 13 | 13 | 0.18% | 0.25% |  |
| D | 7123 | 5210 | 249 | 249 | 3.50% | 4.78% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 17 | 43380 | 327.66 | 656 | 645 | 130.4 |
| A | 10 | 83 | 38685 | 291.67 | 656 | 645 | 130.4 |
| A | 9 | 143 | 15900 | 116.97 | 656 | 645 | 130.4 |
| B | 5 | 172 | 594007 | 4914.08 | 633 | 618 | 120.8 |
| B | 4 | 232 | 189792 | 1566.62 | 633 | 618 | 120.8 |
| B | 0 | 229 | 65980 | 541.29 | 633 | 618 | 120.8 |
| C | 15 | 214 | 222729 | 1548.17 | 624 | 629 | 143.5 |
| C | 0 | 10 | 94607 | 655.08 | 624 | 629 | 143.5 |
| C | 14 | 67 | 40370 | 277.02 | 624 | 629 | 143.5 |
| D | 8 | 195 | 762687 | 4979.38 | 622 | 606 | 153.0 |
| D | 7 | 80 | 423369 | 2762.3 | 622 | 606 | 153.0 |
| D | 12 | 17 | 393043 | 2564.15 | 622 | 606 | 153.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

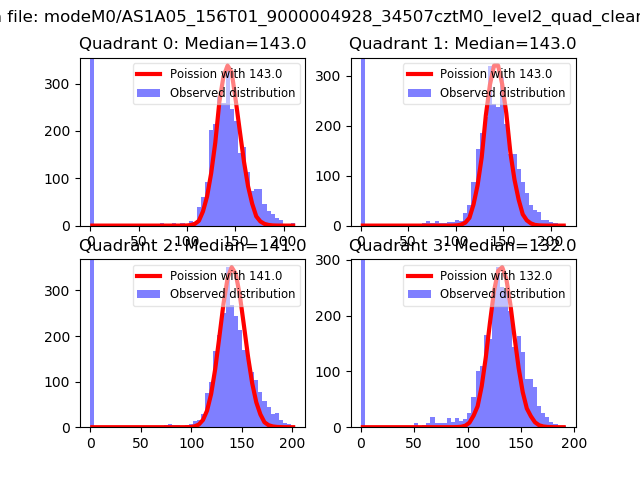

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

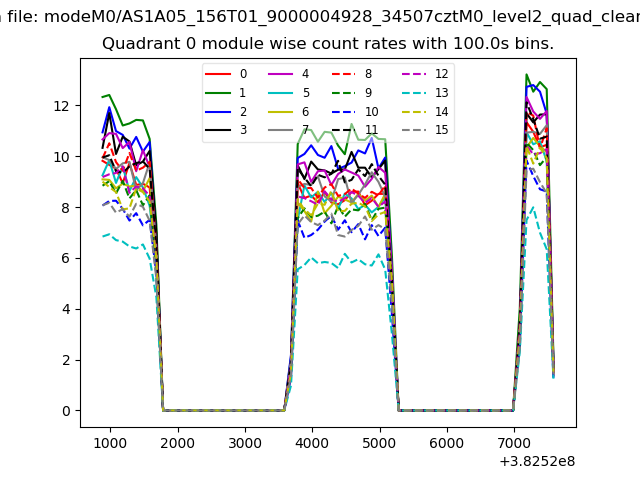

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

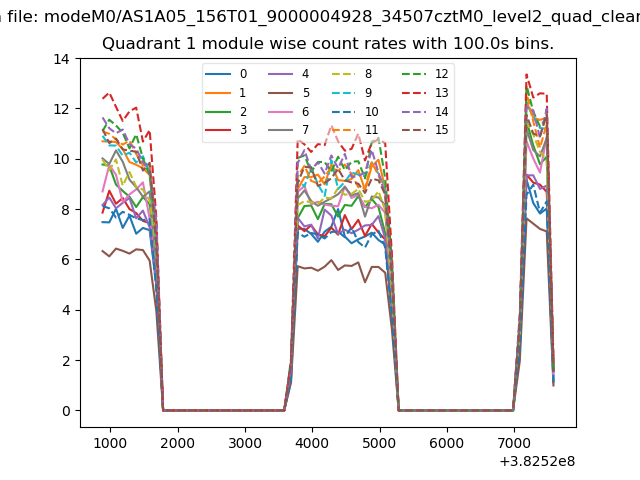

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

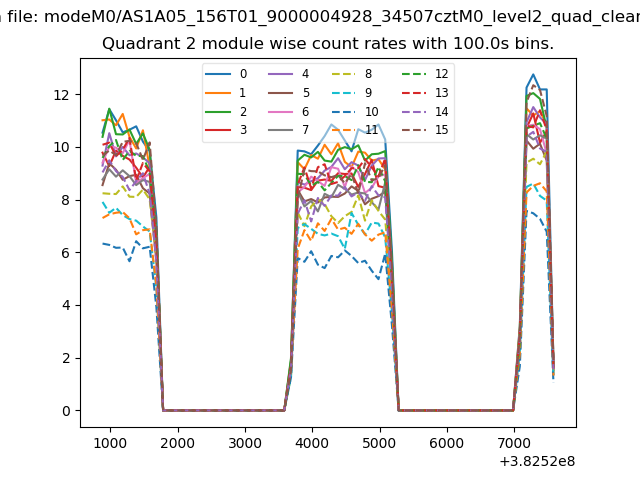

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

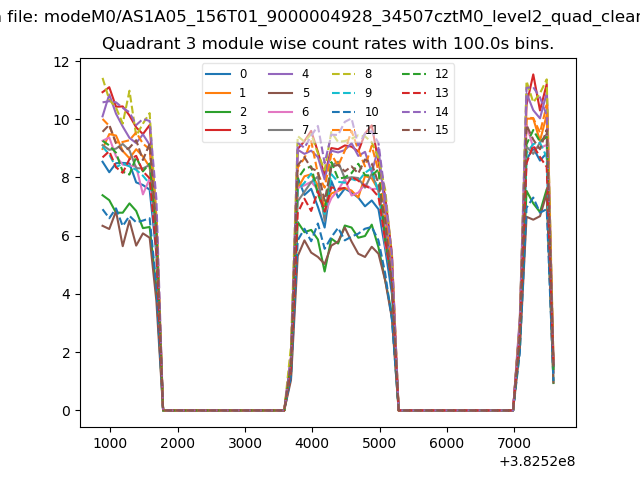

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

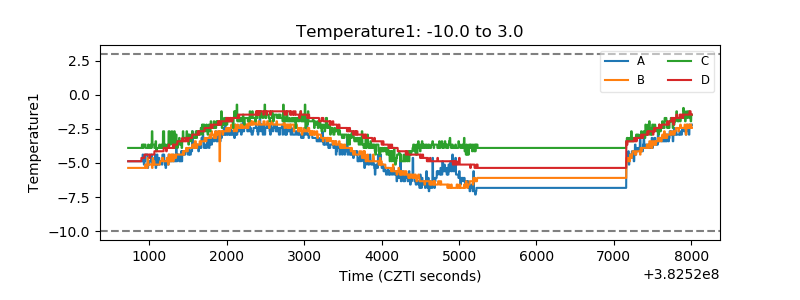

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

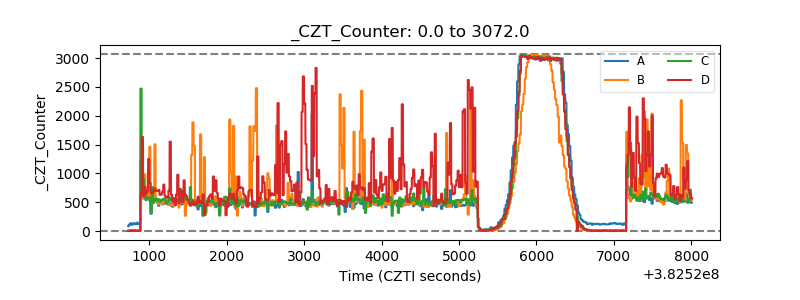

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

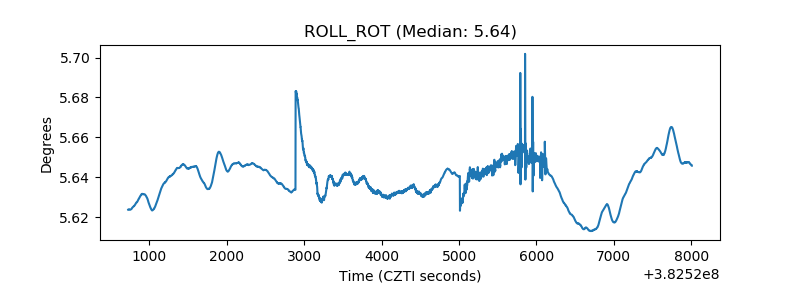

| _ROLL_ROT |  |

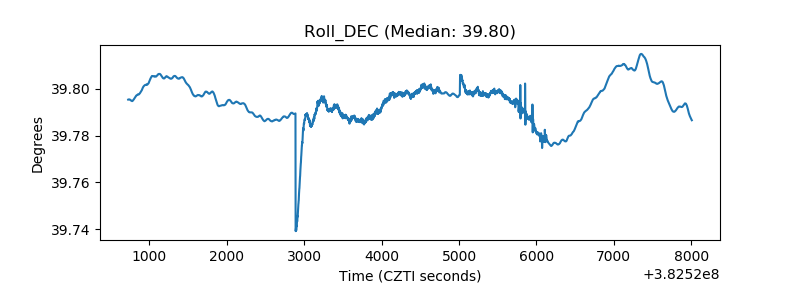

| _Roll_DEC |  |
| _Roll_RA |  |

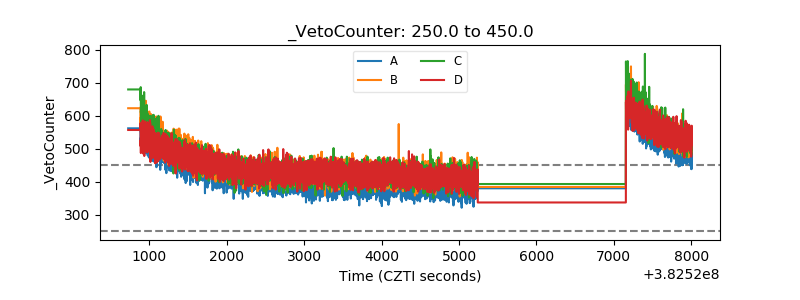

| Veto Counter |  |
