| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_115T02_9000004934_34538cztM0_level2.evt | modeM0/AS1A05_115T02_9000004934_34538cztM0_level2_quad_clean.evt |
| Size (bytes) | 463,498,560 | 52,971,840 |
| Size | 442.0 MB | 50.5 MB |
| Events in quadrant A | 2,834,880 | 313,083 |
| Events in quadrant B | 3,207,471 | 312,928 |
| Events in quadrant C | 3,127,127 | 312,382 |
| Events in quadrant D | 4,511,106 | 296,672 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11554 | 3 |
| B | 0 | 12814 | 2 |
| C | 0 | 12411 | 2 |
| D | 0 | 17132 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 27 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5259 | 11 | 0.209165% |
| B | 5259 | 75 | 1.426127% |
| C | 5259 | 35 | 0.665526% |
| D | 5259 | 142 | 2.700133% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7351 | 5260 | 2 | 2 | 0.03% | 0.04% |  |
| B | 7351 | 5260 | 46 | 46 | 0.63% | 0.87% |  |
| C | 7351 | 5260 | 28 | 28 | 0.38% | 0.53% |  |
| D | 7351 | 5260 | 107 | 107 | 1.46% | 2.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 41113 | 287.39 | 710 | 699 | 140.6 |
| A | 9 | 143 | 32690 | 227.49 | 710 | 699 | 140.6 |
| A | 13 | 6 | 12476 | 83.75 | 710 | 699 | 140.6 |
| B | 5 | 172 | 252863 | 1940.96 | 697 | 682 | 129.9 |
| B | 0 | 245 | 101901 | 779.05 | 697 | 682 | 129.9 |
| B | 5 | 236 | 57245 | 435.35 | 697 | 682 | 129.9 |
| C | 15 | 214 | 237327 | 1509.98 | 686 | 695 | 156.7 |
| C | 0 | 10 | 155358 | 986.92 | 686 | 695 | 156.7 |
| C | 14 | 67 | 57050 | 359.61 | 686 | 695 | 156.7 |
| D | 8 | 195 | 1098975 | 6502.72 | 689 | 671 | 168.9 |
| D | 12 | 227 | 231695 | 1367.82 | 689 | 671 | 168.9 |
| D | 12 | 6 | 116042 | 683.08 | 689 | 671 | 168.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

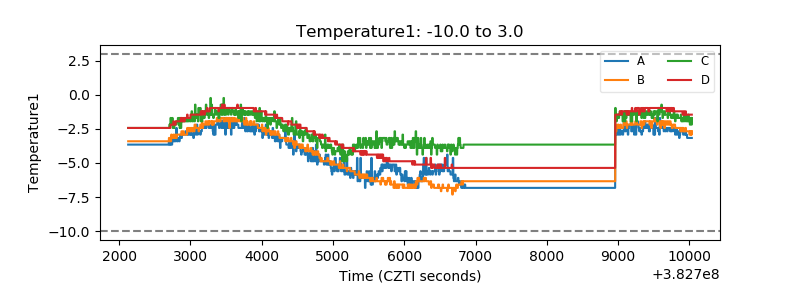

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

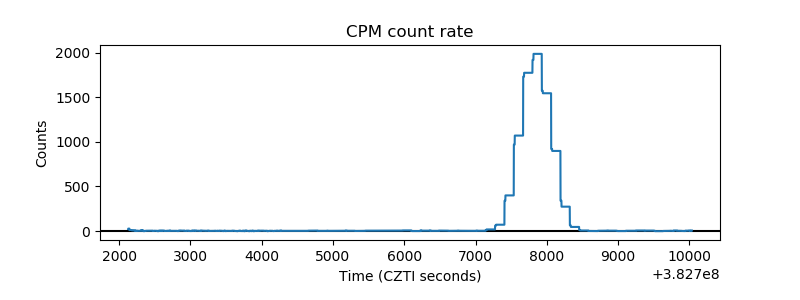

| _CPM_Rate |  |

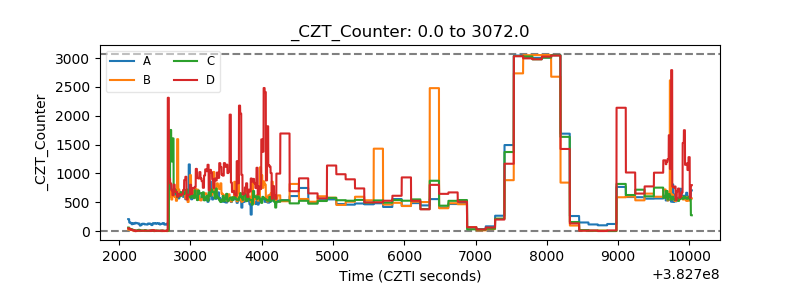

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

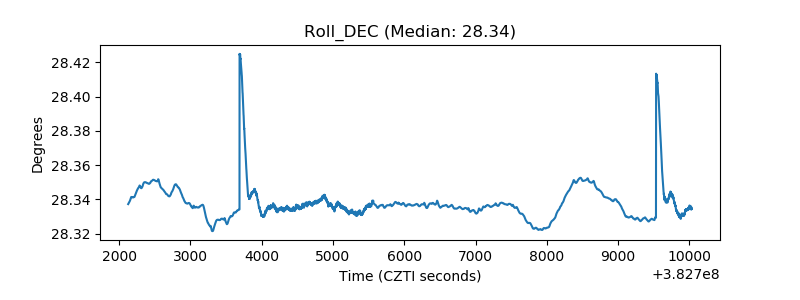

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
