| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_097T01_9000004936_34552cztM0_level2.evt | modeM0/AS1A05_097T01_9000004936_34552cztM0_level2_quad_clean.evt |
| Size (bytes) | 464,929,920 | 49,086,720 |
| Size | 443.4 MB | 46.8 MB |
| Events in quadrant A | 2,628,893 | 295,738 |
| Events in quadrant B | 3,414,849 | 284,746 |
| Events in quadrant C | 2,861,355 | 292,248 |
| Events in quadrant D | 4,846,008 | 272,057 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10541 | 3 |
| B | 0 | 13003 | 2 |
| C | 0 | 11459 | 2 |
| D | 0 | 18106 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 98 | 0 |
| B | 0 | 98 | 0 |
| C | 0 | 98 | 0 |
| D | 0 | 98 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30 | 0 |
| B | 0 | 30 | 0 |
| C | 0 | 30 | 0 |
| D | 0 | 31 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4865 | 14 | 0.287770% |
| B | 4865 | 253 | 5.200411% |
| C | 4865 | 28 | 0.575540% |
| D | 4865 | 140 | 2.877698% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6928 | 4866 | 5 | 5 | 0.07% | 0.10% |  |
| B | 6928 | 4866 | 154 | 154 | 2.22% | 3.16% |  |
| C | 6928 | 4866 | 20 | 20 | 0.29% | 0.41% |  |
| D | 6928 | 4866 | 109 | 109 | 1.57% | 2.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 43052 | 323.4 | 656 | 646 | 131.1 |
| A | 10 | 83 | 40225 | 301.84 | 656 | 646 | 131.1 |
| A | 13 | 254 | 8209 | 57.68 | 656 | 646 | 131.1 |
| B | 5 | 172 | 850493 | 7121.39 | 632 | 618 | 119.3 |
| B | 0 | 245 | 25977 | 212.49 | 632 | 618 | 119.3 |
| B | 0 | 229 | 16415 | 132.37 | 632 | 618 | 119.3 |
| C | 15 | 214 | 206980 | 1414.46 | 633 | 639 | 145.9 |
| C | 0 | 10 | 91003 | 619.44 | 633 | 639 | 145.9 |
| C | 14 | 67 | 78657 | 534.81 | 633 | 639 | 145.9 |
| D | 8 | 195 | 1626375 | 10452.57 | 635 | 619 | 155.5 |
| D | 2 | 250 | 306984 | 1969.73 | 635 | 619 | 155.5 |
| D | 7 | 223 | 146846 | 940.15 | 635 | 619 | 155.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

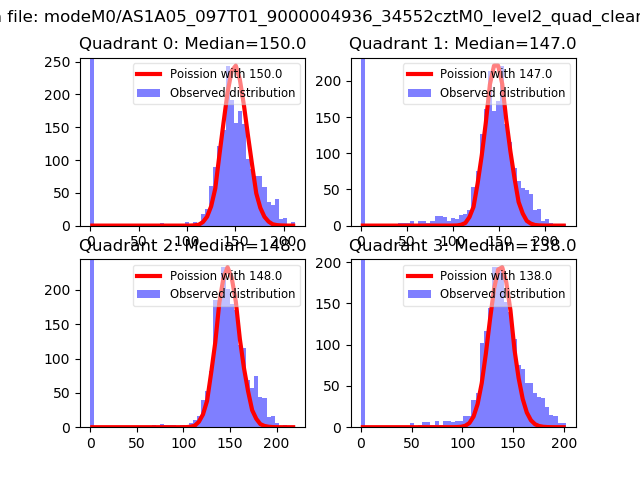

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

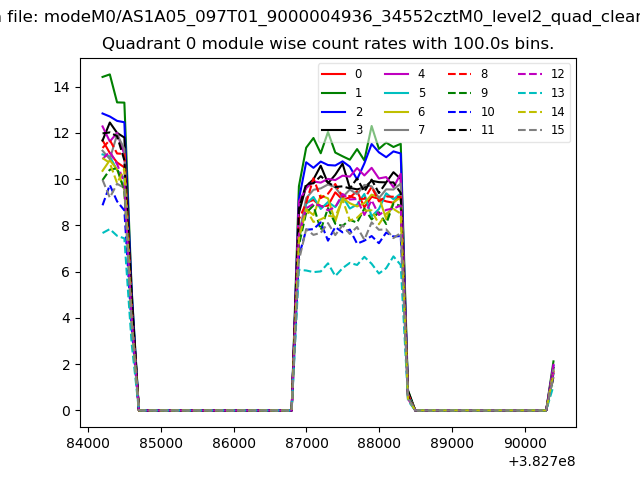

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

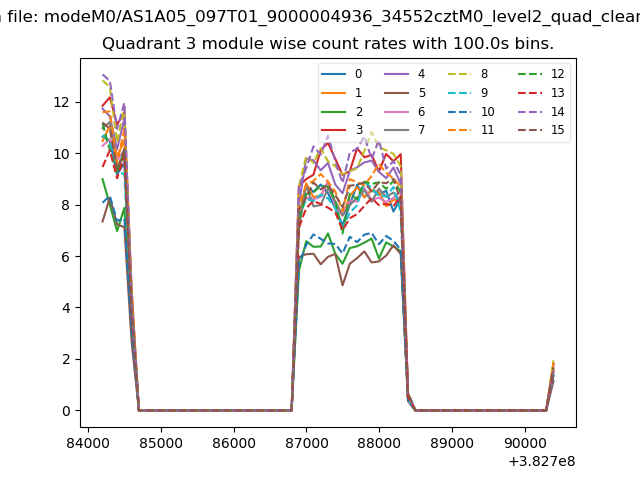

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

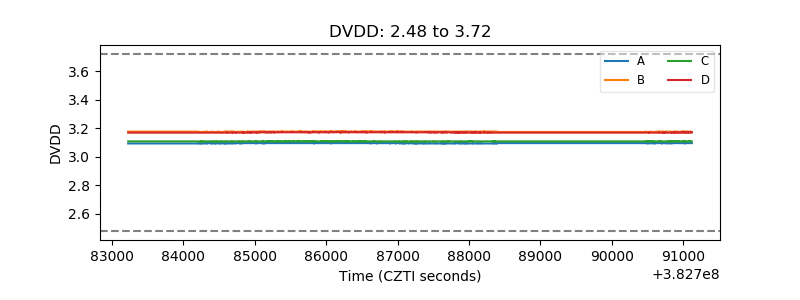

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

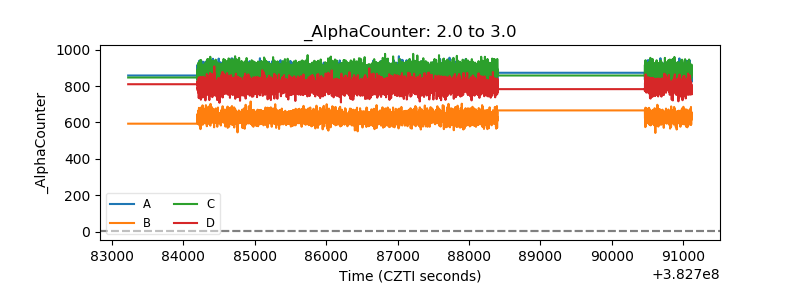

| Alpha Counter |  |
| _CPM_Rate |  |

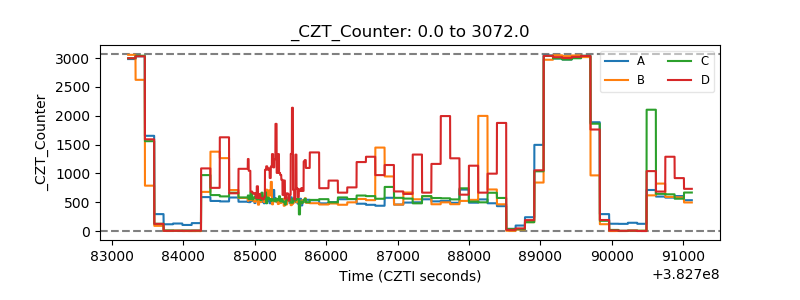

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
