| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_103T05_9000004938_34555cztM0_level2.evt | modeM0/AS1A05_103T05_9000004938_34555cztM0_level2_quad_clean.evt |
| Size (bytes) | 910,146,240 | 105,796,800 |
| Size | 868.0 MB | 100.9 MB |
| Events in quadrant A | 4,745,500 | 656,945 |
| Events in quadrant B | 5,617,577 | 642,298 |
| Events in quadrant C | 5,069,642 | 643,870 |
| Events in quadrant D | 11,485,157 | 596,201 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 61 | 0 |
| B | 0 | 61 | 0 |
| C | 0 | 61 | 0 |
| D | 0 | 61 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 194 | 0 |
| B | 0 | 194 | 0 |
| C | 0 | 194 | 0 |
| D | 0 | 194 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19942 | 4 |
| B | 0 | 22382 | 3 |
| C | 0 | 20473 | 3 |
| D | 0 | 41130 | 11 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 9588 | 31 | 0.323321% |
| B | 9588 | 206 | 2.148519% |
| C | 9588 | 34 | 0.354610% |
| D | 9587 | 1069 | 11.150516% |

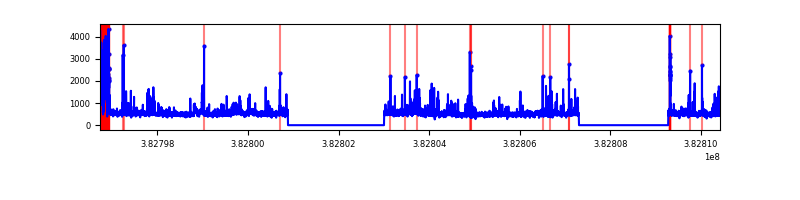

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13683 | 9590 | 10 | 10 | 0.07% | 0.10% |  |
| B | 13683 | 9590 | 135 | 135 | 0.99% | 1.41% |  |
| C | 13683 | 9590 | 17 | 17 | 0.12% | 0.18% |  |
| D | 13683 | 9590 | 978 | 978 | 7.15% | 10.20% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 113099 | 483.05 | 1170 | 1152 | 231.7 |
| A | 10 | 83 | 68826 | 292.02 | 1170 | 1152 | 231.7 |
| A | 13 | 254 | 17819 | 71.92 | 1170 | 1152 | 231.7 |
| B | 5 | 172 | 545634 | 2553.03 | 1147 | 1119 | 213.3 |
| B | 0 | 229 | 170958 | 796.31 | 1147 | 1119 | 213.3 |
| B | 0 | 190 | 64886 | 298.98 | 1147 | 1119 | 213.3 |
| C | 15 | 214 | 403365 | 1565.04 | 1127 | 1138 | 257.0 |
| C | 0 | 10 | 122450 | 472.02 | 1127 | 1138 | 257.0 |
| C | 14 | 67 | 107403 | 413.47 | 1127 | 1138 | 257.0 |
| D | 8 | 195 | 4090882 | 14370.55 | 1092 | 1069 | 284.6 |
| D | 1 | 47 | 928951 | 3260.34 | 1092 | 1069 | 284.6 |
| D | 12 | 235 | 581446 | 2039.3 | 1092 | 1069 | 284.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

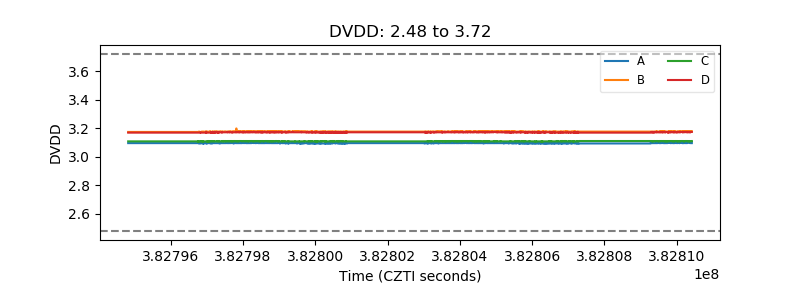

| D_VDD |  |

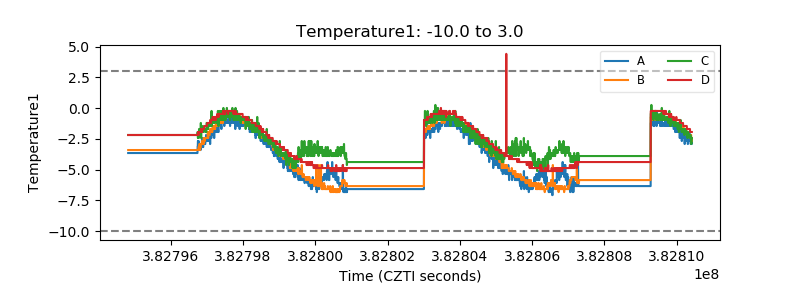

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

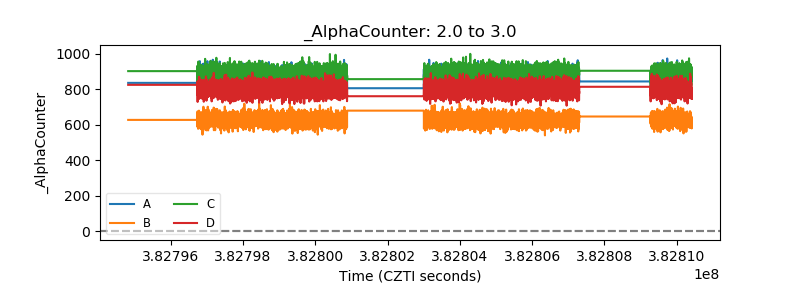

| Alpha Counter |  |

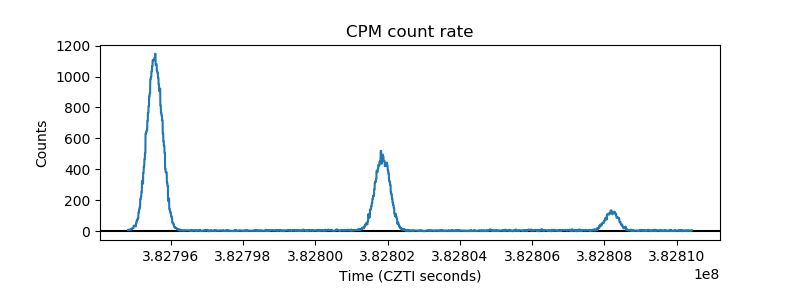

| _CPM_Rate |  |

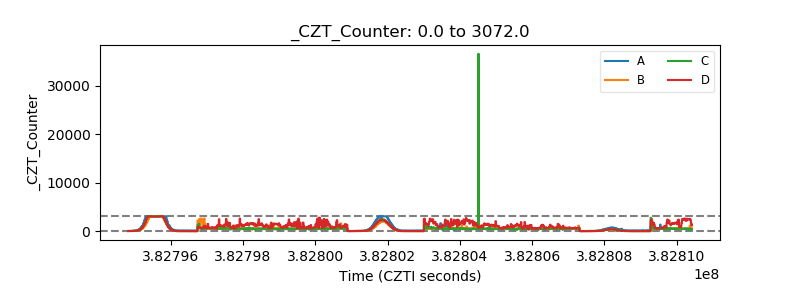

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

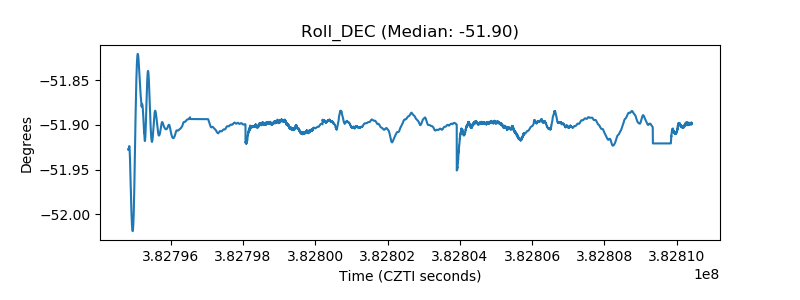

| _Roll_DEC |  |

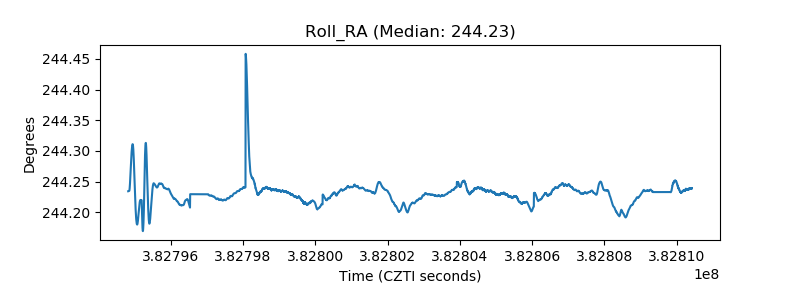

| _Roll_RA |  |
| Veto Counter |  |
