| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_167T01_9000004940_34571cztM0_level2.evt | modeM0/AS1A05_167T01_9000004940_34571cztM0_level2_quad_clean.evt |
| Size (bytes) | 523,635,840 | 71,519,040 |
| Size | 499.4 MB | 68.2 MB |
| Events in quadrant A | 2,711,600 | 451,426 |
| Events in quadrant B | 4,634,022 | 434,346 |
| Events in quadrant C | 2,917,069 | 455,705 |
| Events in quadrant D | 5,208,729 | 424,617 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28 | 0 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 29 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11801 | 3 |
| B | 0 | 17478 | 2 |
| C | 0 | 11900 | 2 |
| D | 0 | 19712 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5712 | 7 | 0.122549% |
| B | 5712 | 573 | 10.031513% |
| C | 5712 | 16 | 0.280112% |
| D | 5712 | 130 | 2.275910% |

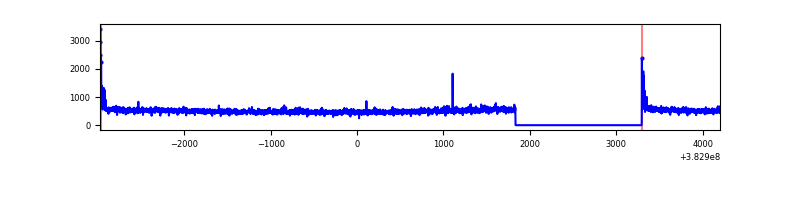

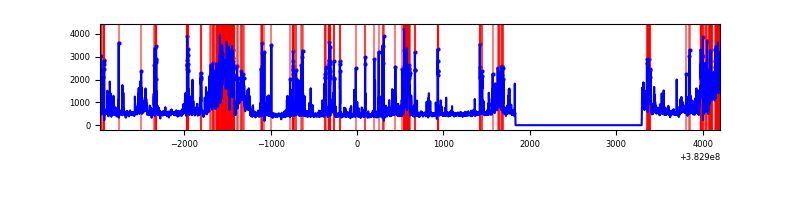

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7174 | 5713 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7174 | 5713 | 386 | 386 | 5.38% | 6.76% |  |
| C | 7174 | 5713 | 5 | 5 | 0.07% | 0.09% |  |
| D | 7174 | 5713 | 93 | 93 | 1.30% | 1.63% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 44581 | 319.18 | 675 | 662 | 137.6 |
| A | 15 | 169 | 32762 | 233.29 | 675 | 662 | 137.6 |
| A | 9 | 143 | 14560 | 101.0 | 675 | 662 | 137.6 |
| B | 5 | 172 | 1677763 | 13603.6 | 644 | 629 | 123.3 |
| B | 5 | 255 | 226960 | 1835.82 | 644 | 629 | 123.3 |
| B | 0 | 190 | 60290 | 483.92 | 644 | 629 | 123.3 |
| C | 15 | 214 | 241073 | 1560.0 | 659 | 665 | 154.1 |
| C | 0 | 10 | 54046 | 346.39 | 659 | 665 | 154.1 |
| C | 14 | 67 | 39298 | 250.69 | 659 | 665 | 154.1 |
| D | 8 | 195 | 1646692 | 10218.33 | 653 | 634 | 161.1 |
| D | 2 | 250 | 401714 | 2489.81 | 653 | 634 | 161.1 |
| D | 7 | 223 | 149653 | 925.07 | 653 | 634 | 161.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

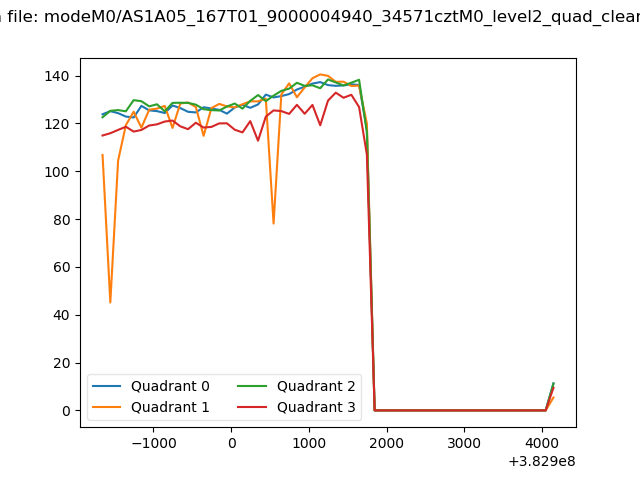

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

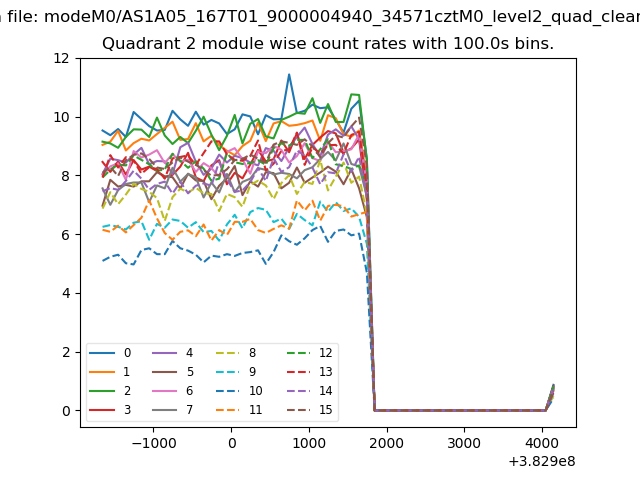

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

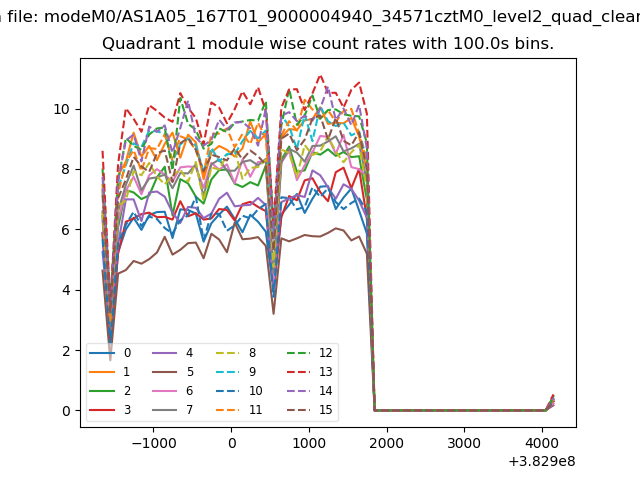

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

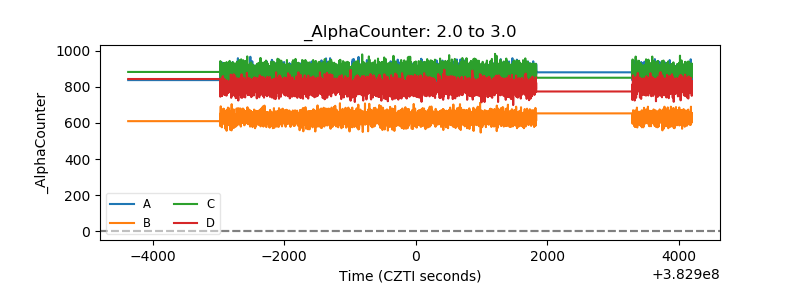

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

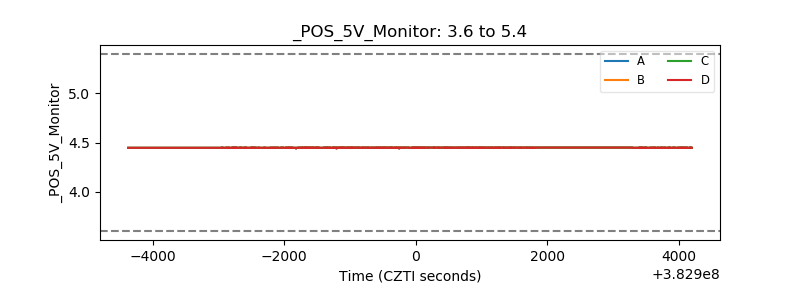

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
