| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_014T01_9000004950_34591cztM0_level2.evt | modeM0/AS1C07_014T01_9000004950_34591cztM0_level2_quad_clean.evt |
| Size (bytes) | 713,882,880 | 75,240,000 |
| Size | 680.8 MB | 71.8 MB |
| Events in quadrant A | 3,296,990 | 482,006 |
| Events in quadrant B | 5,251,477 | 465,009 |
| Events in quadrant C | 3,532,630 | 477,893 |
| Events in quadrant D | 9,093,583 | 393,179 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32 | 0 |
| B | 0 | 32 | 0 |
| C | 0 | 32 | 0 |
| D | 0 | 32 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13760 | 3 |
| B | 0 | 19779 | 2 |
| C | 0 | 14319 | 2 |
| D | 0 | 31671 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6598 | 16 | 0.242498% |
| B | 6598 | 663 | 10.048500% |
| C | 6598 | 10 | 0.151561% |
| D | 6598 | 1429 | 21.658078% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9765 | 6600 | 7 | 7 | 0.07% | 0.11% |  |
| B | 9765 | 6600 | 460 | 460 | 4.71% | 6.97% |  |
| C | 9765 | 6600 | 3 | 3 | 0.03% | 0.05% |  |
| D | 9765 | 6599 | 1251 | 1251 | 12.81% | 18.96% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 79576 | 473.34 | 816 | 801 | 166.4 |
| A | 10 | 83 | 46398 | 273.98 | 816 | 801 | 166.4 |
| A | 4 | 48 | 12901 | 72.7 | 816 | 801 | 166.4 |
| B | 5 | 172 | 1773381 | 11901.83 | 778 | 760 | 148.9 |
| B | 5 | 255 | 246899 | 1652.64 | 778 | 760 | 148.9 |
| B | 0 | 189 | 49433 | 326.8 | 778 | 760 | 148.9 |
| C | 15 | 214 | 284744 | 1526.53 | 793 | 801 | 186.0 |
| C | 3 | 233 | 56794 | 301.03 | 793 | 801 | 186.0 |
| C | 14 | 67 | 49488 | 261.75 | 793 | 801 | 186.0 |
| D | 8 | 195 | 3667655 | 18703.61 | 729 | 717 | 196.1 |
| D | 2 | 249 | 1787828 | 9115.35 | 729 | 717 | 196.1 |
| D | 1 | 52 | 239455 | 1217.71 | 729 | 717 | 196.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

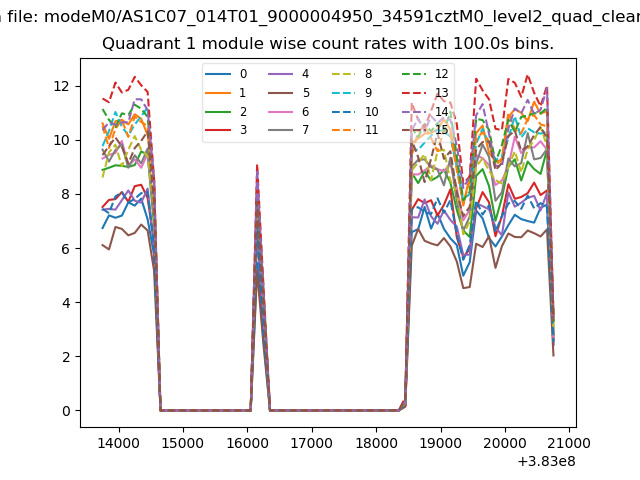

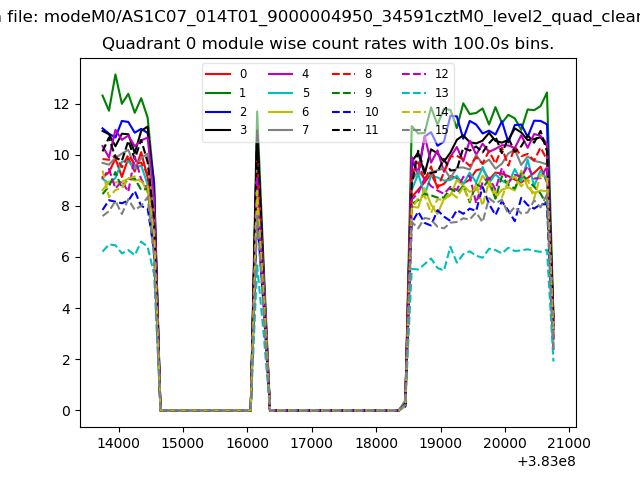

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

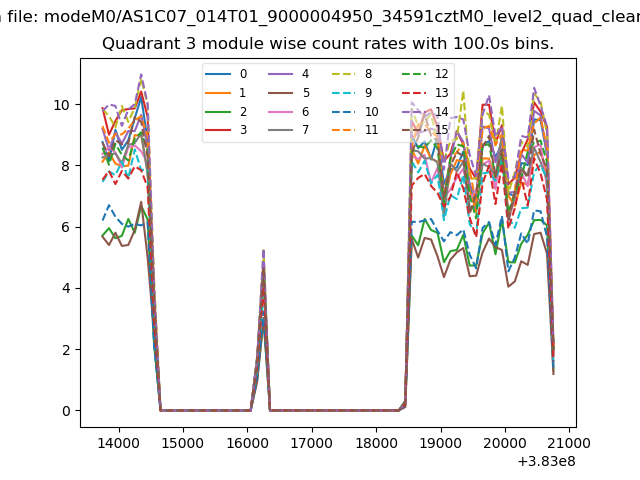

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

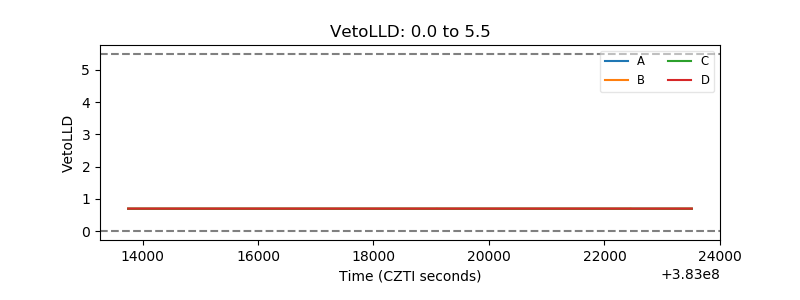

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

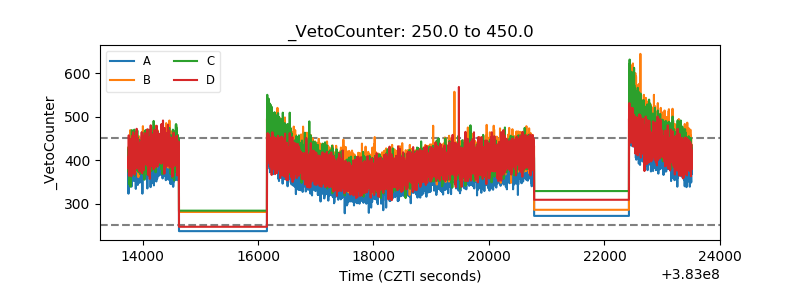

| Veto Counter |  |
