| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_046T09_9000004952_34615cztM0_level2.evt | modeM0/AS1A11_046T09_9000004952_34615cztM0_level2_quad_clean.evt |
| Size (bytes) | 500,184,000 | 89,406,720 |
| Size | 477.0 MB | 85.3 MB |
| Events in quadrant A | 2,843,664 | 585,098 |
| Events in quadrant B | 3,766,404 | 576,291 |
| Events in quadrant C | 3,121,468 | 580,078 |
| Events in quadrant D | 5,011,200 | 548,165 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30 | 0 |
| B | 0 | 30 | 0 |
| C | 0 | 30 | 0 |
| D | 0 | 30 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12394 | 3 |
| B | 0 | 15042 | 2 |
| C | 0 | 12730 | 2 |
| D | 0 | 19024 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5987 | 10 | 0.167029% |
| B | 5987 | 306 | 5.111074% |
| C | 5987 | 64 | 1.068983% |
| D | 5987 | 116 | 1.937531% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

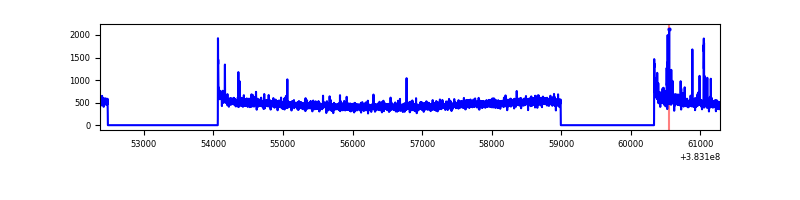

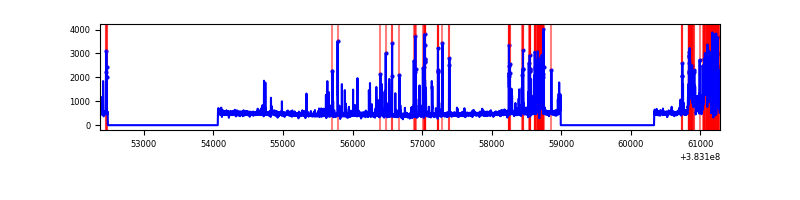

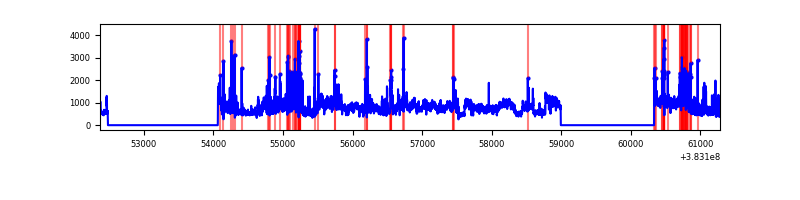

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8911 | 5989 | 1 | 1 | 0.01% | 0.02% |  |
| B | 8911 | 5989 | 201 | 201 | 2.26% | 3.36% |  |
| C | 8911 | 5989 | 40 | 40 | 0.45% | 0.67% |  |
| D | 8911 | 5989 | 94 | 94 | 1.05% | 1.57% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 47715 | 331.31 | 699 | 685 | 142.0 |
| A | 15 | 169 | 45503 | 315.73 | 699 | 685 | 142.0 |
| A | 13 | 6 | 16588 | 112.03 | 699 | 685 | 142.0 |
| B | 5 | 172 | 978713 | 7403.16 | 681 | 664 | 132.1 |
| B | 4 | 232 | 34017 | 252.46 | 681 | 664 | 132.1 |
| B | 5 | 255 | 17654 | 128.6 | 681 | 664 | 132.1 |
| C | 15 | 214 | 247981 | 1574.63 | 677 | 682 | 157.1 |
| C | 0 | 10 | 157152 | 996.3 | 677 | 682 | 157.1 |
| C | 14 | 67 | 44089 | 276.39 | 677 | 682 | 157.1 |
| D | 8 | 195 | 1629834 | 8844.6 | 669 | 655 | 184.2 |
| D | 10 | 118 | 152363 | 823.6 | 669 | 655 | 184.2 |
| D | 10 | 230 | 124139 | 670.38 | 669 | 655 | 184.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

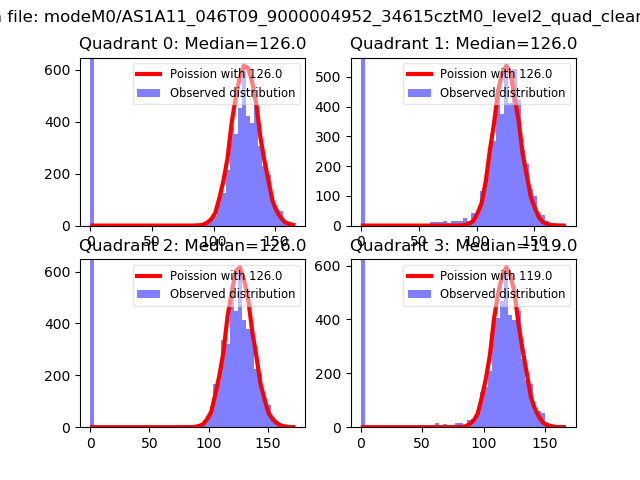

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

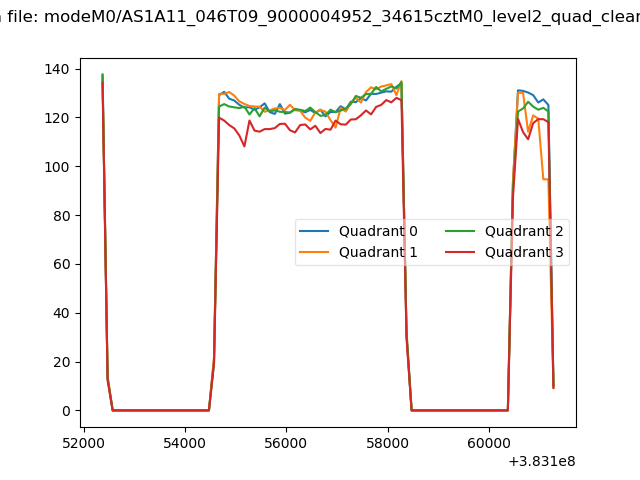

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

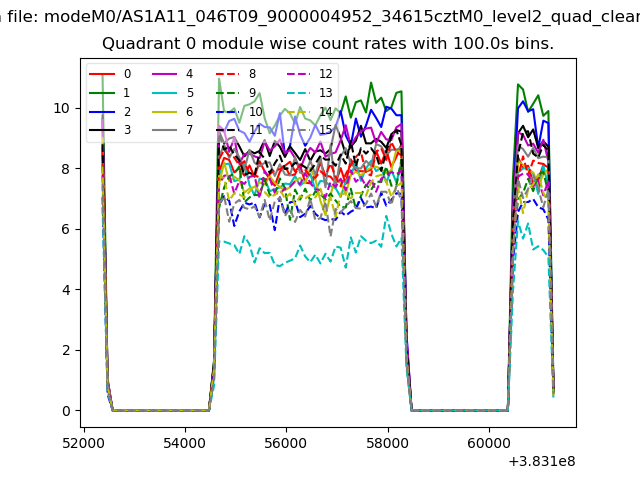

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

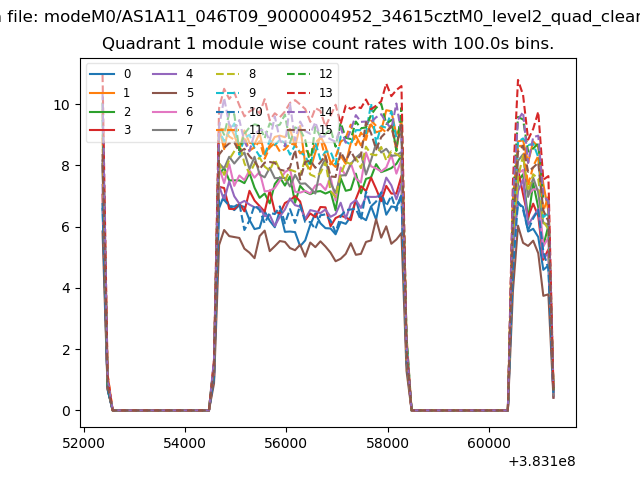

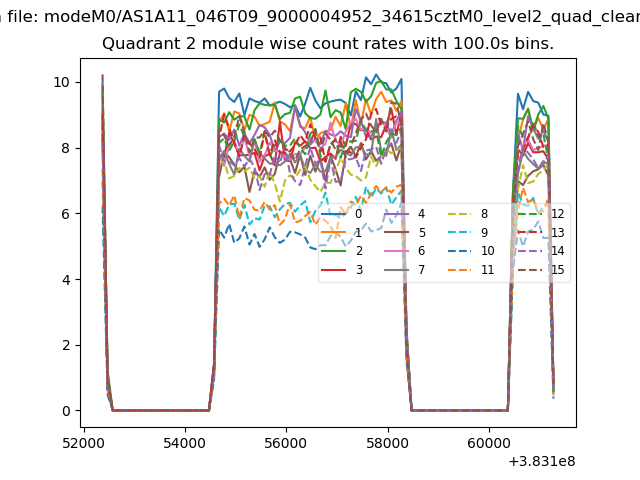

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

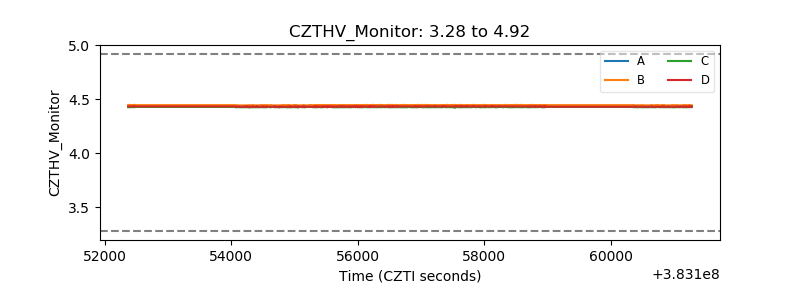

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

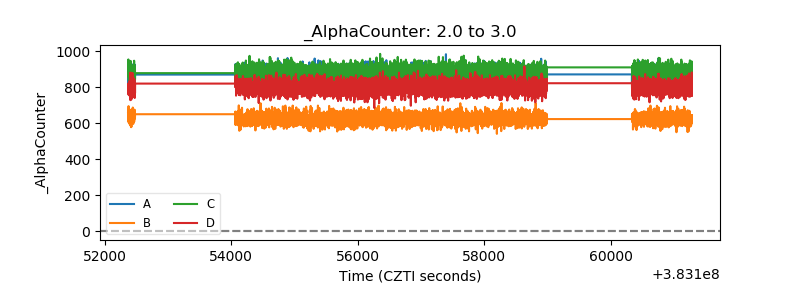

| Alpha Counter |  |

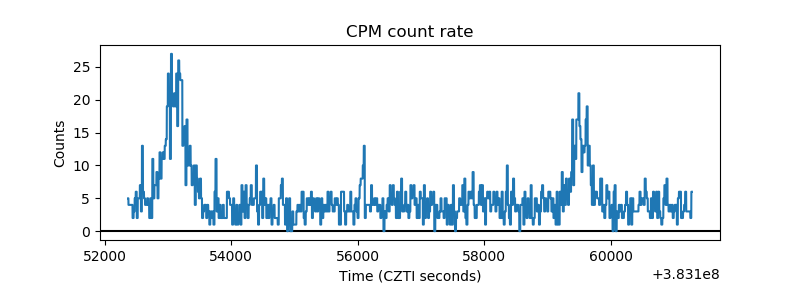

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
