| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_058T02_9000004954_34620cztM0_level2.evt | modeM0/AS1A11_058T02_9000004954_34620cztM0_level2_quad_clean.evt |
| Size (bytes) | 540,708,480 | 73,134,720 |
| Size | 515.7 MB | 69.7 MB |
| Events in quadrant A | 2,675,377 | 467,465 |
| Events in quadrant B | 3,900,773 | 462,017 |
| Events in quadrant C | 3,078,856 | 463,585 |
| Events in quadrant D | 6,328,037 | 416,220 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31 | 0 |
| B | 0 | 31 | 0 |
| C | 0 | 31 | 0 |
| D | 0 | 31 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11770 | 3 |
| B | 0 | 15293 | 2 |
| C | 0 | 12691 | 2 |
| D | 0 | 22850 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5794 | 5 | 0.086296% |
| B | 5794 | 287 | 4.953400% |
| C | 5794 | 71 | 1.225406% |
| D | 5794 | 650 | 11.218502% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

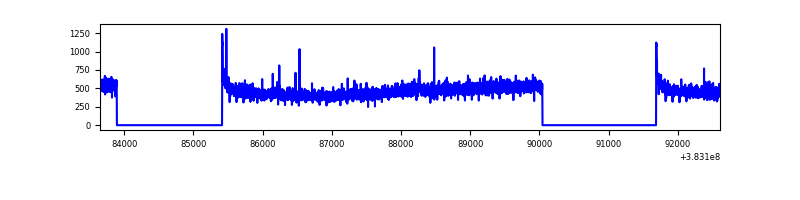

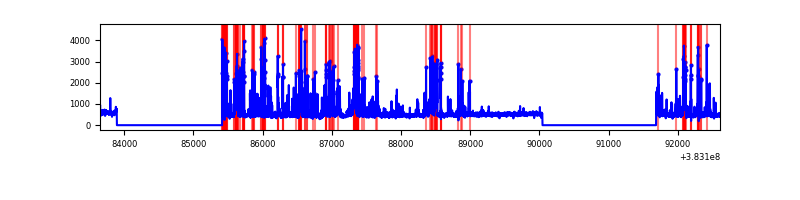

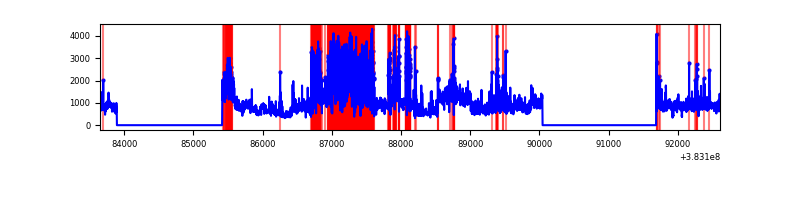

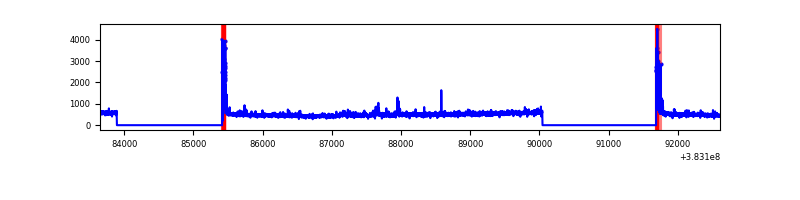

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8959 | 5796 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8959 | 5796 | 188 | 188 | 2.10% | 3.24% |  |
| C | 8959 | 5796 | 47 | 47 | 0.52% | 0.81% |  |
| D | 8959 | 5796 | 552 | 552 | 6.16% | 9.52% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 45308 | 325.08 | 674 | 660 | 137.3 |
| A | 13 | 254 | 10506 | 71.69 | 674 | 660 | 137.3 |
| A | 13 | 6 | 8817 | 59.39 | 674 | 660 | 137.3 |
| B | 5 | 172 | 1189310 | 9328.78 | 660 | 642 | 127.4 |
| B | 4 | 171 | 47976 | 371.48 | 660 | 642 | 127.4 |
| B | 4 | 232 | 42501 | 328.51 | 660 | 642 | 127.4 |
| C | 15 | 214 | 241499 | 1609.32 | 647 | 653 | 149.7 |
| C | 0 | 10 | 188583 | 1255.74 | 647 | 653 | 149.7 |
| C | 14 | 67 | 96580 | 640.98 | 647 | 653 | 149.7 |
| D | 8 | 195 | 1839252 | 11985.53 | 623 | 603 | 153.4 |
| D | 2 | 249 | 1511436 | 9848.61 | 623 | 603 | 153.4 |
| D | 2 | 250 | 167584 | 1088.49 | 623 | 603 | 153.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

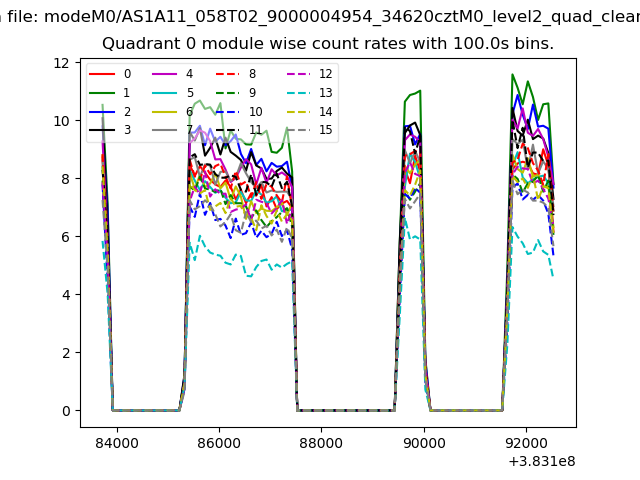

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

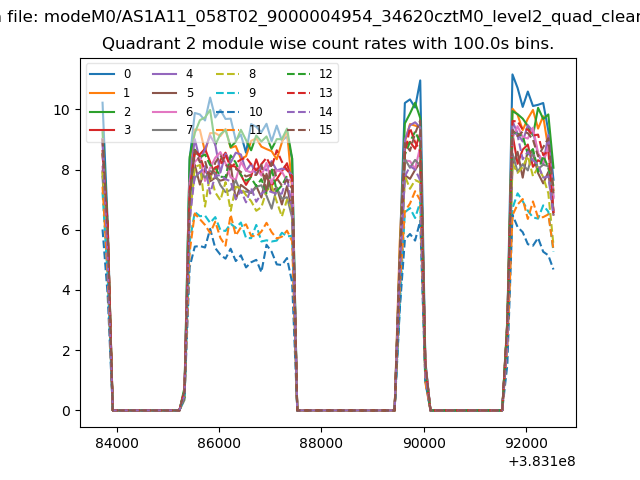

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

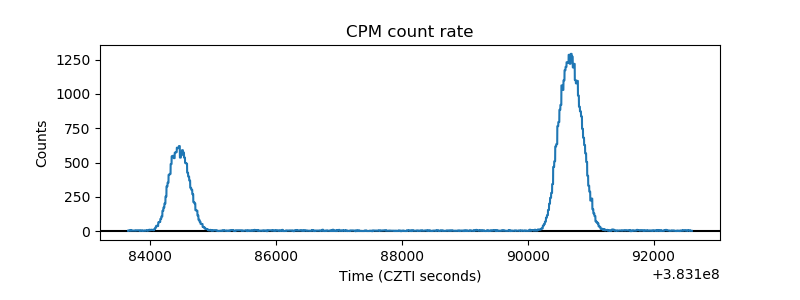

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

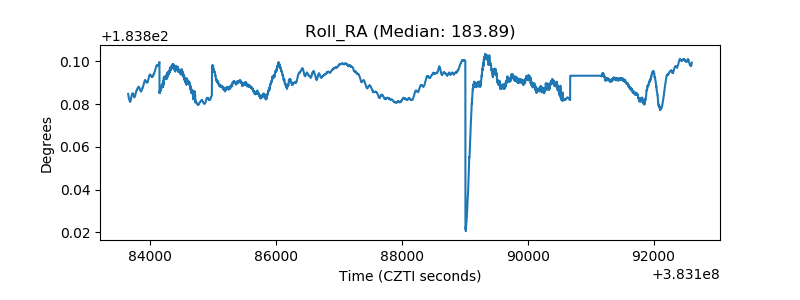

| _Roll_RA |  |
| Veto Counter |  |
