| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_058T02_9000004954_34624cztM0_level2.evt | modeM0/AS1A11_058T02_9000004954_34624cztM0_level2_quad_clean.evt |
| Size (bytes) | 805,530,240 | 100,742,400 |
| Size | 768.2 MB | 96.1 MB |
| Events in quadrant A | 4,579,514 | 621,772 |
| Events in quadrant B | 6,582,318 | 617,743 |
| Events in quadrant C | 5,107,657 | 597,163 |
| Events in quadrant D | 7,509,579 | 580,548 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 40 | 0 |
| B | 0 | 40 | 0 |
| C | 0 | 40 | 0 |
| D | 0 | 40 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18744 | 3 |
| B | 0 | 25061 | 2 |
| C | 0 | 20014 | 2 |
| D | 0 | 28557 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 186 | 0 |
| B | 0 | 186 | 0 |
| C | 0 | 186 | 0 |
| D | 0 | 186 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 9131 | 11 | 0.120469% |
| B | 9131 | 568 | 6.220567% |
| C | 9131 | 128 | 1.401818% |
| D | 9131 | 196 | 2.146534% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13077 | 9133 | 1 | 1 | 0.01% | 0.01% |  |
| B | 13077 | 9133 | 376 | 376 | 2.88% | 4.12% |  |
| C | 13077 | 9133 | 93 | 93 | 0.71% | 1.02% |  |
| D | 13077 | 9133 | 131 | 131 | 1.00% | 1.43% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 52141 | 220.01 | 1162 | 1141 | 231.8 |
| A | 13 | 6 | 20892 | 85.2 | 1162 | 1141 | 231.8 |
| A | 13 | 254 | 17125 | 68.95 | 1162 | 1141 | 231.8 |
| B | 5 | 172 | 1919545 | 9205.26 | 1115 | 1091 | 208.4 |
| B | 0 | 189 | 99048 | 470.02 | 1115 | 1091 | 208.4 |
| B | 10 | 245 | 75981 | 359.34 | 1115 | 1091 | 208.4 |
| C | 15 | 214 | 377046 | 1506.47 | 1095 | 1107 | 249.5 |
| C | 0 | 10 | 336478 | 1343.9 | 1095 | 1107 | 249.5 |
| C | 10 | 49 | 58979 | 231.91 | 1095 | 1107 | 249.5 |
| D | 8 | 195 | 2363495 | 8878.96 | 1106 | 1075 | 266.1 |
| D | 2 | 249 | 335770 | 1257.92 | 1106 | 1075 | 266.1 |
| D | 12 | 6 | 132319 | 493.27 | 1106 | 1075 | 266.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

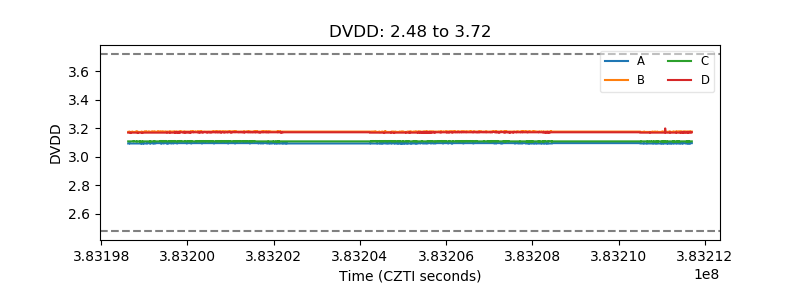

| D_VDD |  |

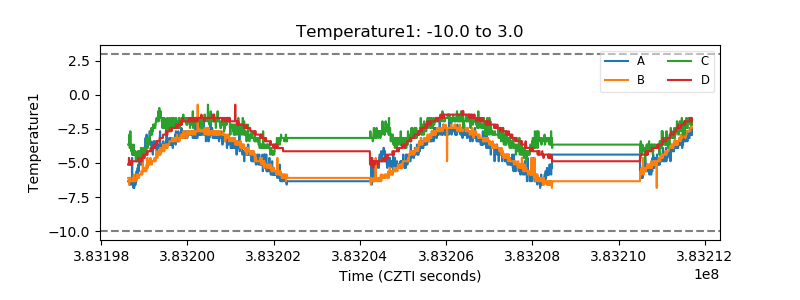

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

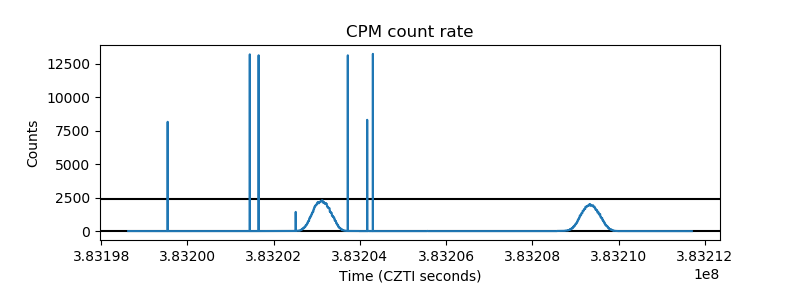

| _CPM_Rate |  |
| CZT Counter |  |

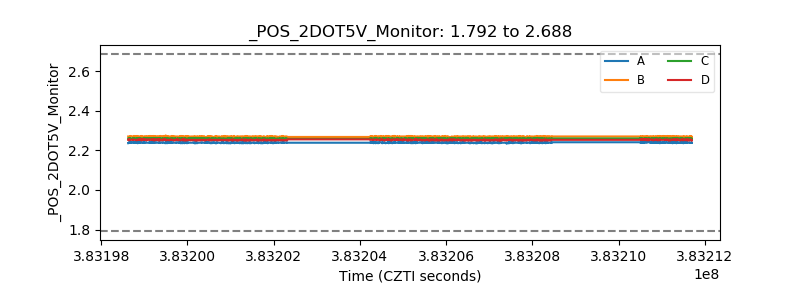

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

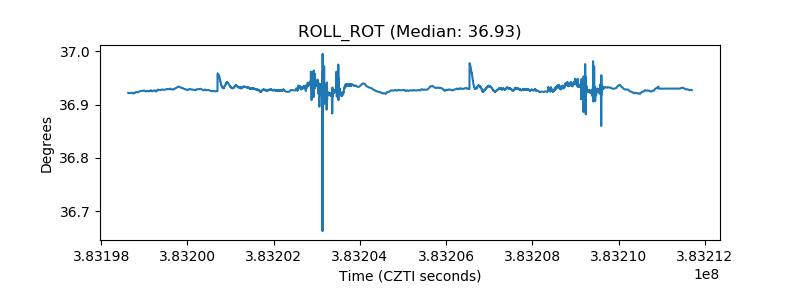

| _ROLL_ROT |  |

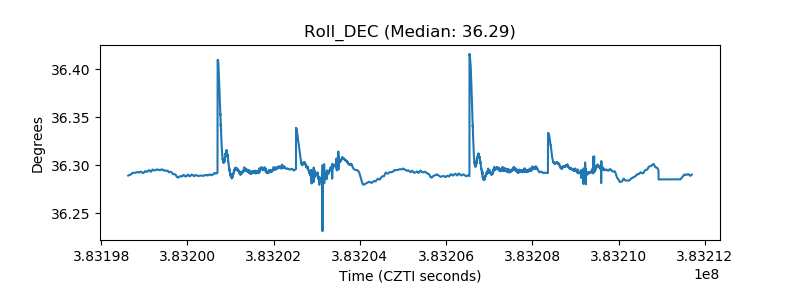

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
