| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_008T01_9000004956_34648cztM0_level2.evt | modeM0/AS1T05_008T01_9000004956_34648cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,078,441,920 | 154,952,640 |
| Size | 1.0 GB | 147.8 MB |
| Events in quadrant A | 5,565,210 | 986,600 |
| Events in quadrant B | 7,212,289 | 985,781 |
| Events in quadrant C | 6,305,826 | 985,304 |
| Events in quadrant D | 12,756,140 | 892,723 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 248 | 0 |
| B | 0 | 248 | 0 |
| C | 0 | 248 | 0 |
| D | 0 | 248 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 44 | 0 |
| B | 0 | 44 | 0 |
| C | 0 | 44 | 0 |
| D | 0 | 44 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24820 | 4 |
| B | 0 | 29358 | 3 |
| C | 0 | 26176 | 3 |
| D | 0 | 46367 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 12185 | 16 | 0.131309% |
| B | 12185 | 302 | 2.478457% |
| C | 12185 | 128 | 1.050472% |
| D | 12185 | 930 | 7.632335% |

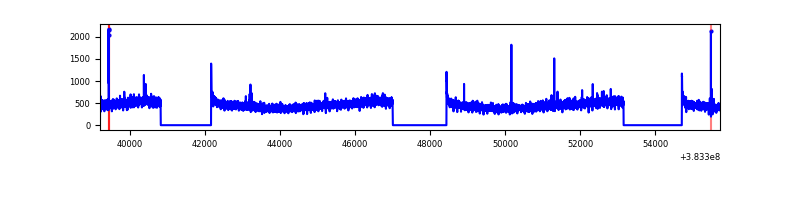

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 16515 | 12188 | 4 | 4 | 0.02% | 0.03% |  |
| B | 16515 | 12188 | 198 | 198 | 1.20% | 1.62% |  |
| C | 16515 | 12188 | 87 | 87 | 0.53% | 0.71% |  |
| D | 16515 | 12188 | 716 | 716 | 4.34% | 5.87% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 76456 | 266.76 | 1408 | 1380 | 281.4 |
| A | 13 | 254 | 22083 | 73.56 | 1408 | 1380 | 281.4 |
| A | 9 | 143 | 18624 | 61.27 | 1408 | 1380 | 281.4 |
| B | 5 | 172 | 1382989 | 5199.61 | 1391 | 1353 | 265.7 |
| B | 4 | 232 | 186438 | 696.54 | 1391 | 1353 | 265.7 |
| B | 0 | 155 | 51835 | 189.98 | 1391 | 1353 | 265.7 |
| C | 15 | 214 | 508848 | 1611.12 | 1357 | 1366 | 315.0 |
| C | 0 | 10 | 347170 | 1097.83 | 1357 | 1366 | 315.0 |
| C | 14 | 67 | 82075 | 256.23 | 1357 | 1366 | 315.0 |
| D | 8 | 195 | 4904142 | 14518.56 | 1314 | 1283 | 337.7 |
| D | 2 | 250 | 1852467 | 5481.81 | 1314 | 1283 | 337.7 |
| D | 13 | 249 | 232751 | 685.43 | 1314 | 1283 | 337.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

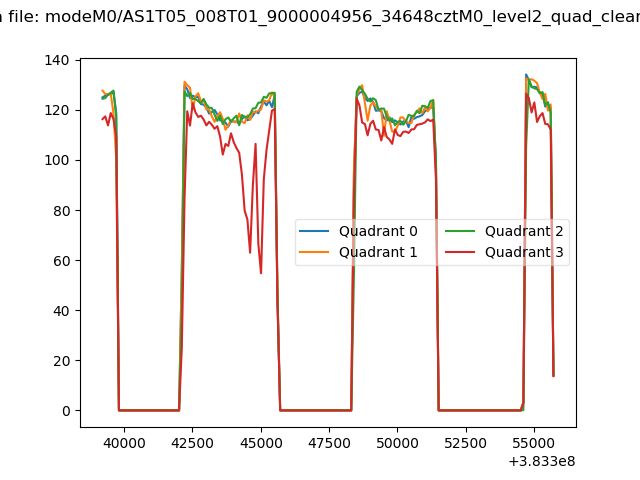

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

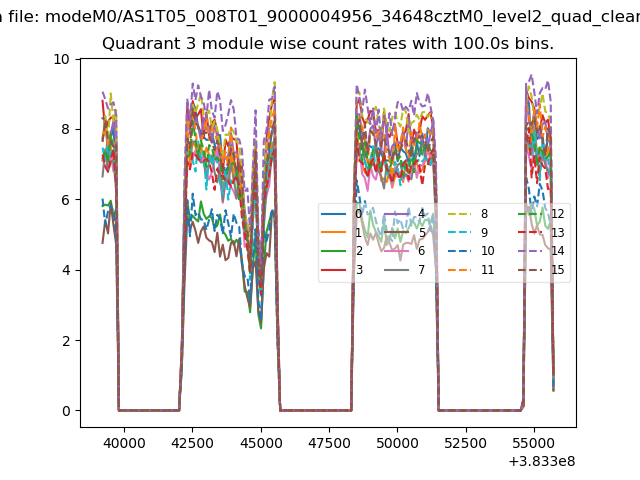

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

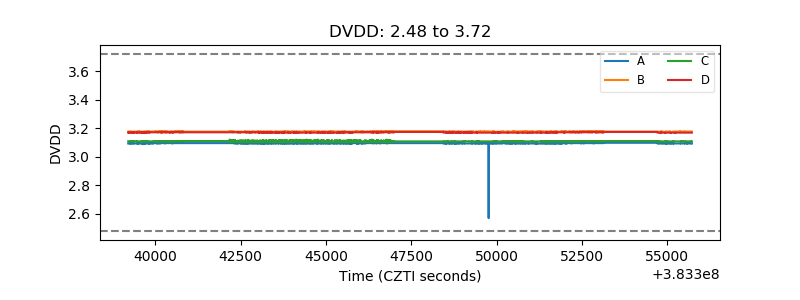

| D_VDD |  |

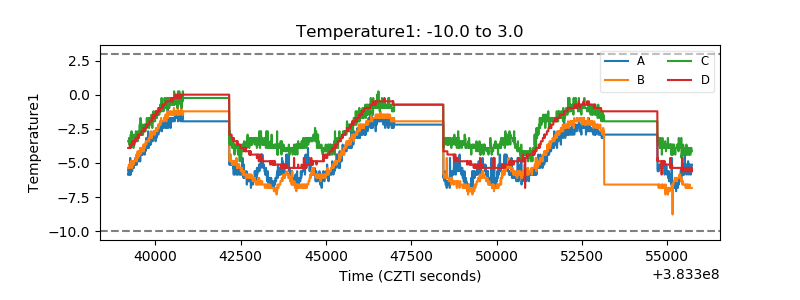

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

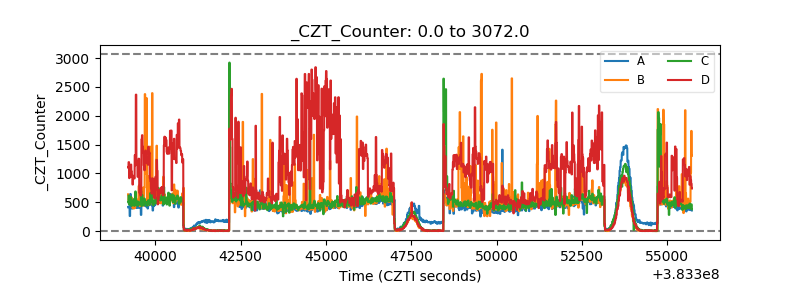

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

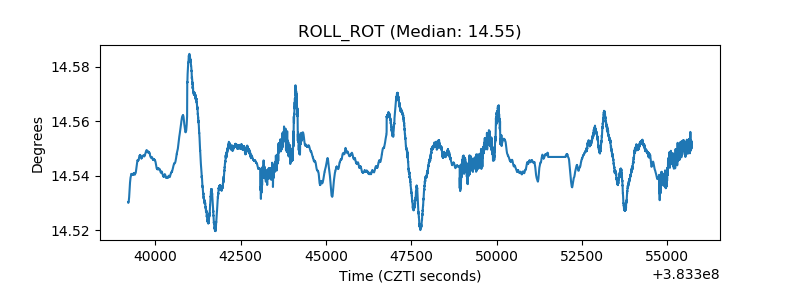

| _ROLL_ROT |  |

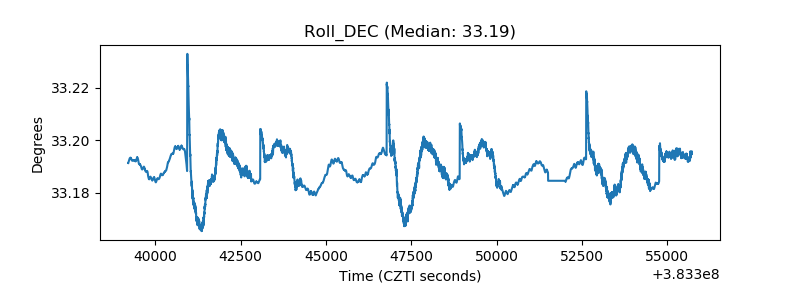

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
